Transmission Range Sensor Circuit Low

DTC P0707 (No.34): Transmission Range Sensor Circuit Low

Wiring Diagram








DTC Detecting Condition and Trouble Area

DTC Detecting Condition and Trouble Area:

DTC Confirmation Procedure
1. Connect scan tool to DLC with ignition switch OFF.
2. Clear DTCs in TCM and ECM memories by using scan tool.
3. Start engine and shift select lever to D range.
4. Start vehicle and increase vehicle speed to 50 km/h (31 mile/h) or more for 2 minutes.
5. Stop vehicle and turn ignition switch OFF.
6. Repeat Step 3) to 5) one time.
7. Stop vehicle.
8. Check DTC, pending DTC and freeze-frame data.

DTC Troubleshooting

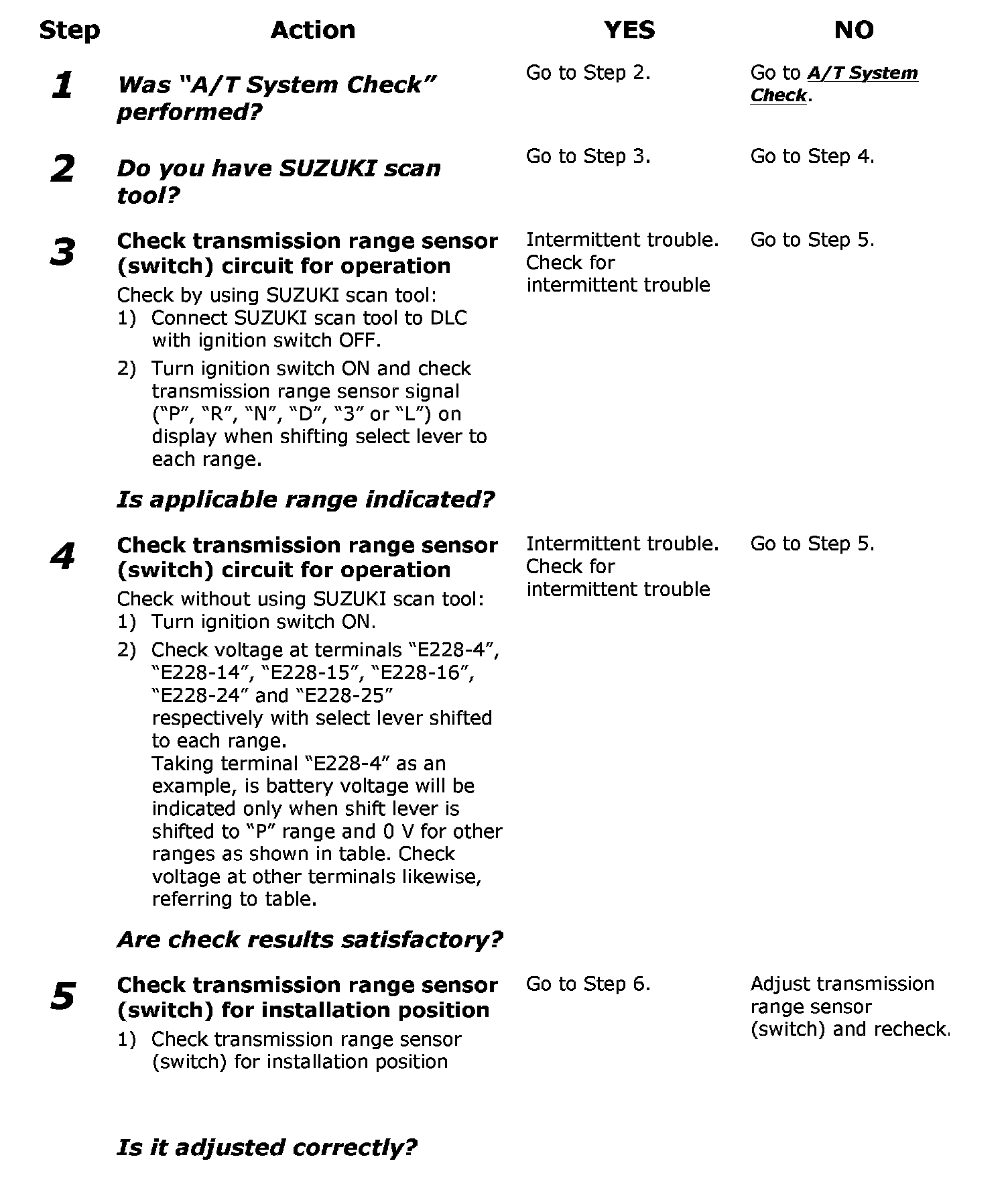

Steps 1-5:

Steps 6-7:
