"O/D Off" Light Does Not Light at Ignition Switch on
"O/D OFF" Light Does Not Light at Ignition Switch ON

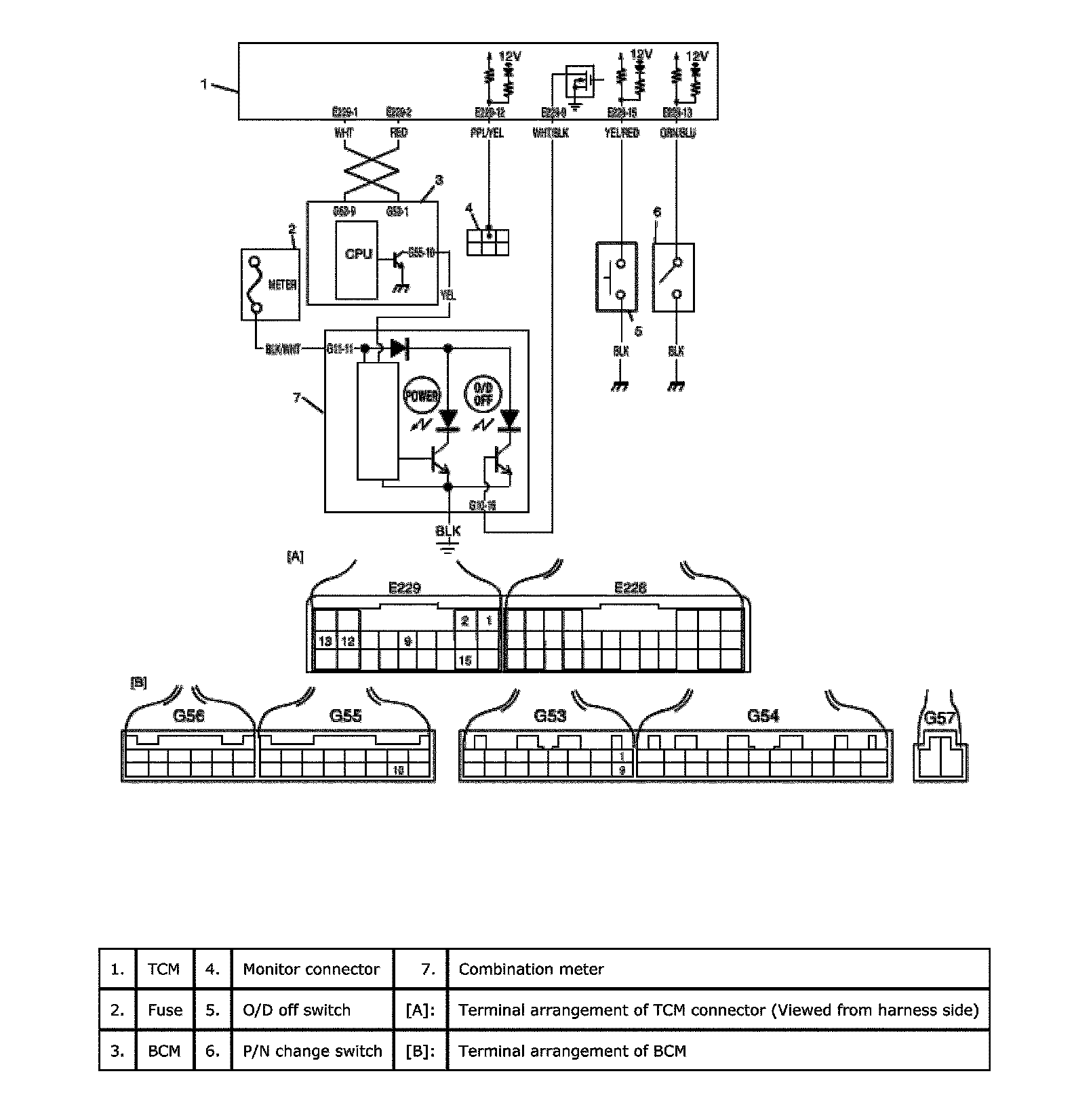

Wiring Diagram

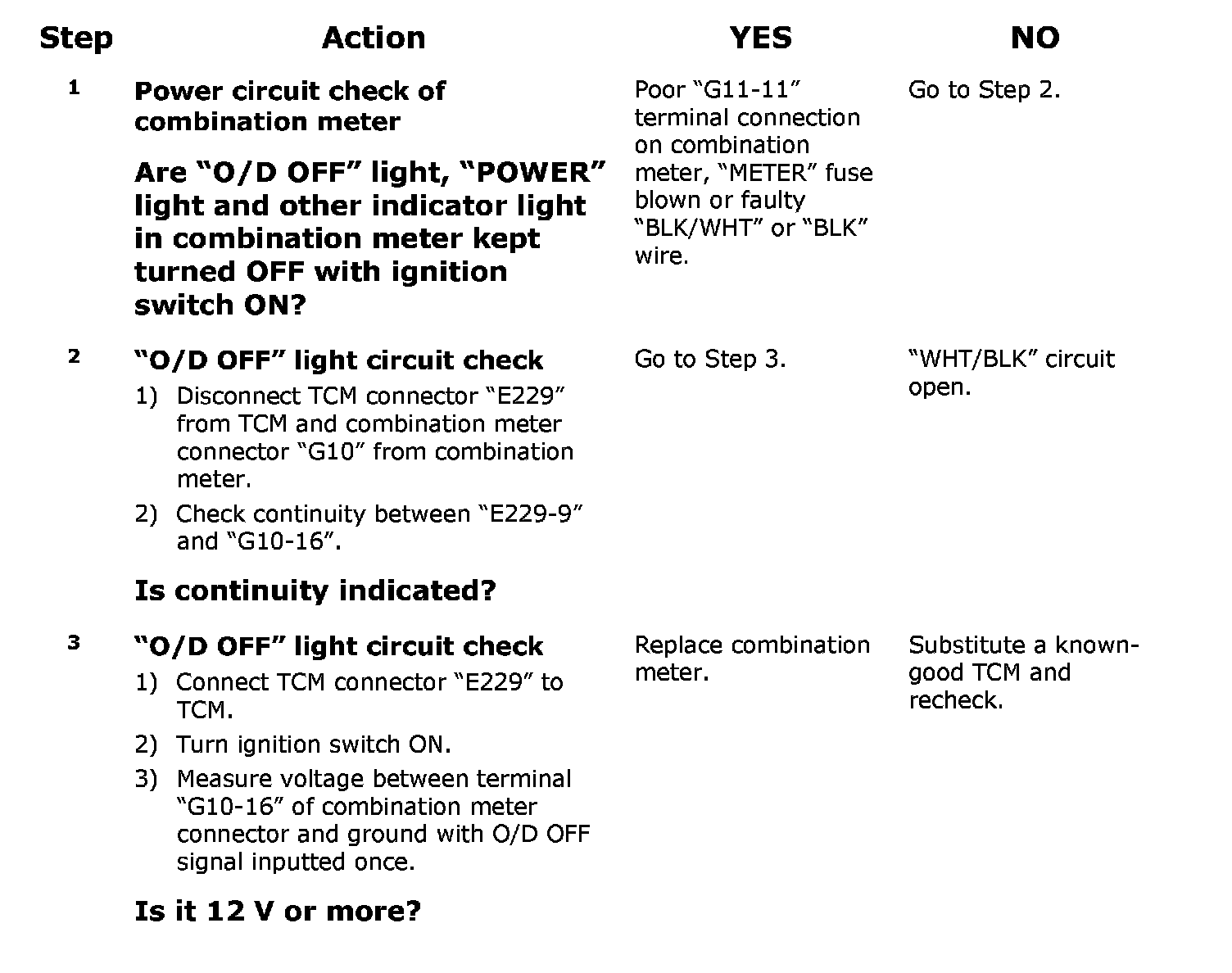

Steps 1-3:
Troubleshooting
