"Power" Light Comes on Steadily
"POWER" Light Comes ON Steadily
Wiring Diagram

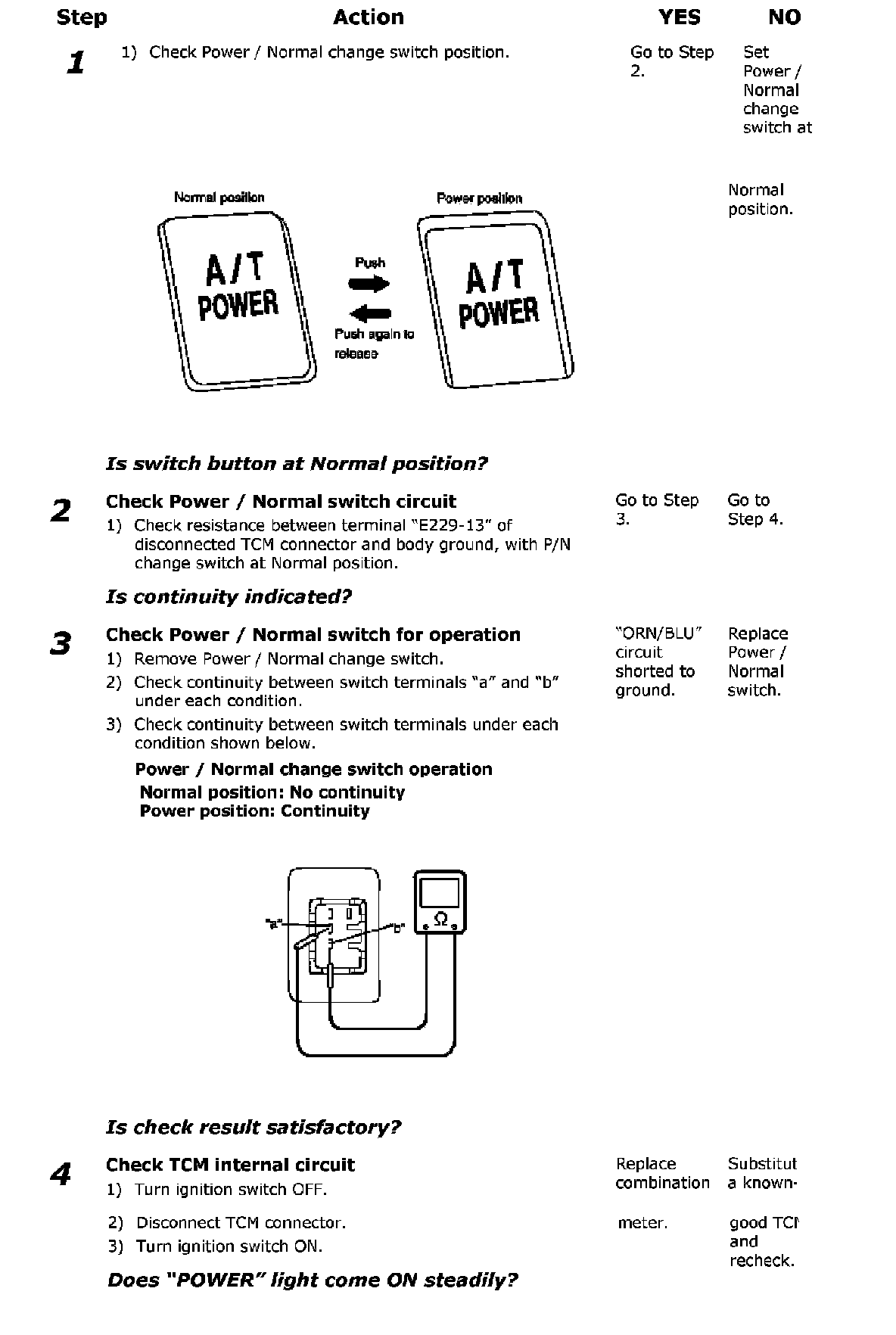

Troubleshooting
Steps 1-4:
