Fluid Line/Hose: Service and Repair

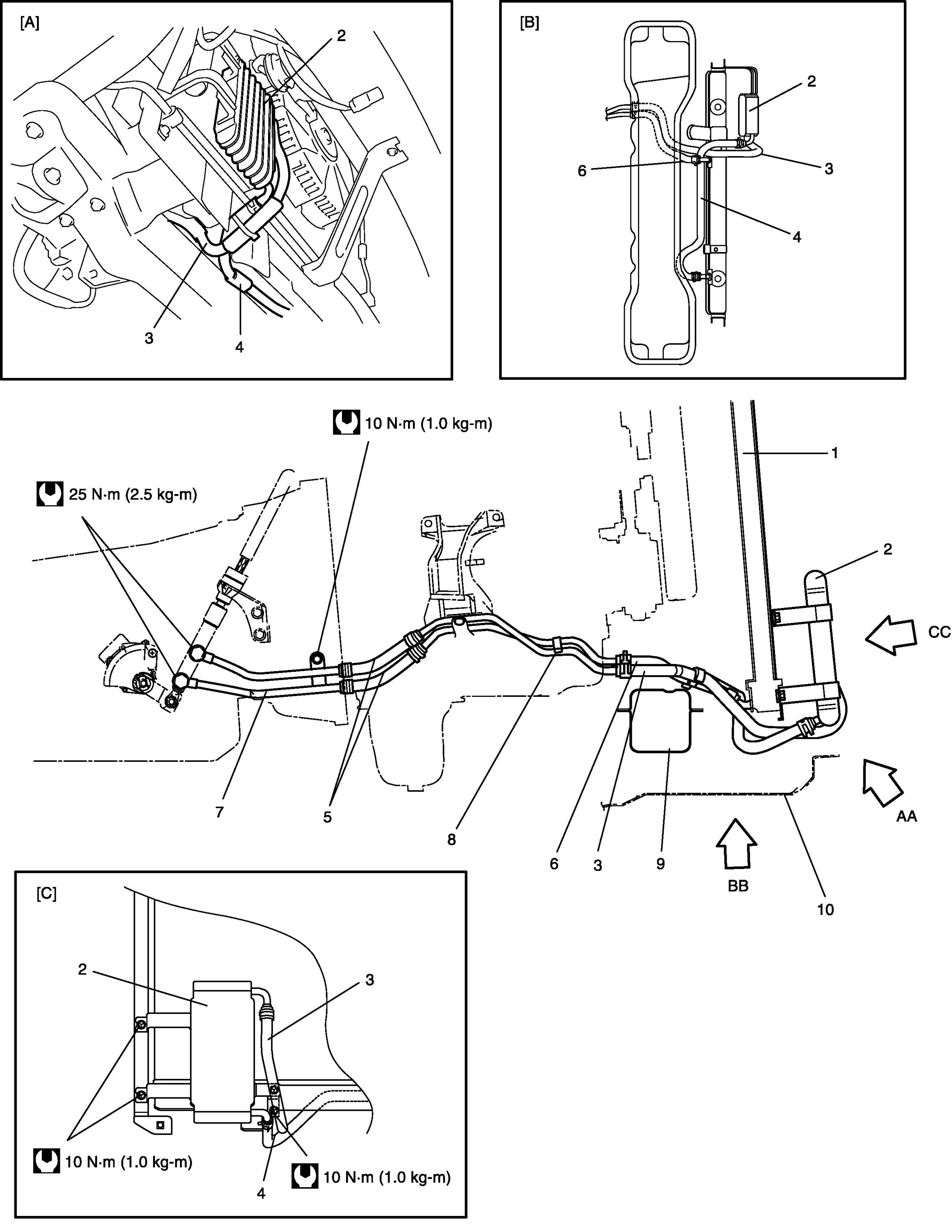

Oil Cooler Hoses Replacement
When replace them, make sure to note the followings.
^
to replace clamps at the same time
^
to insert hose as far as bulge of pipe
^
to clamp hose securely
