Exploded Views

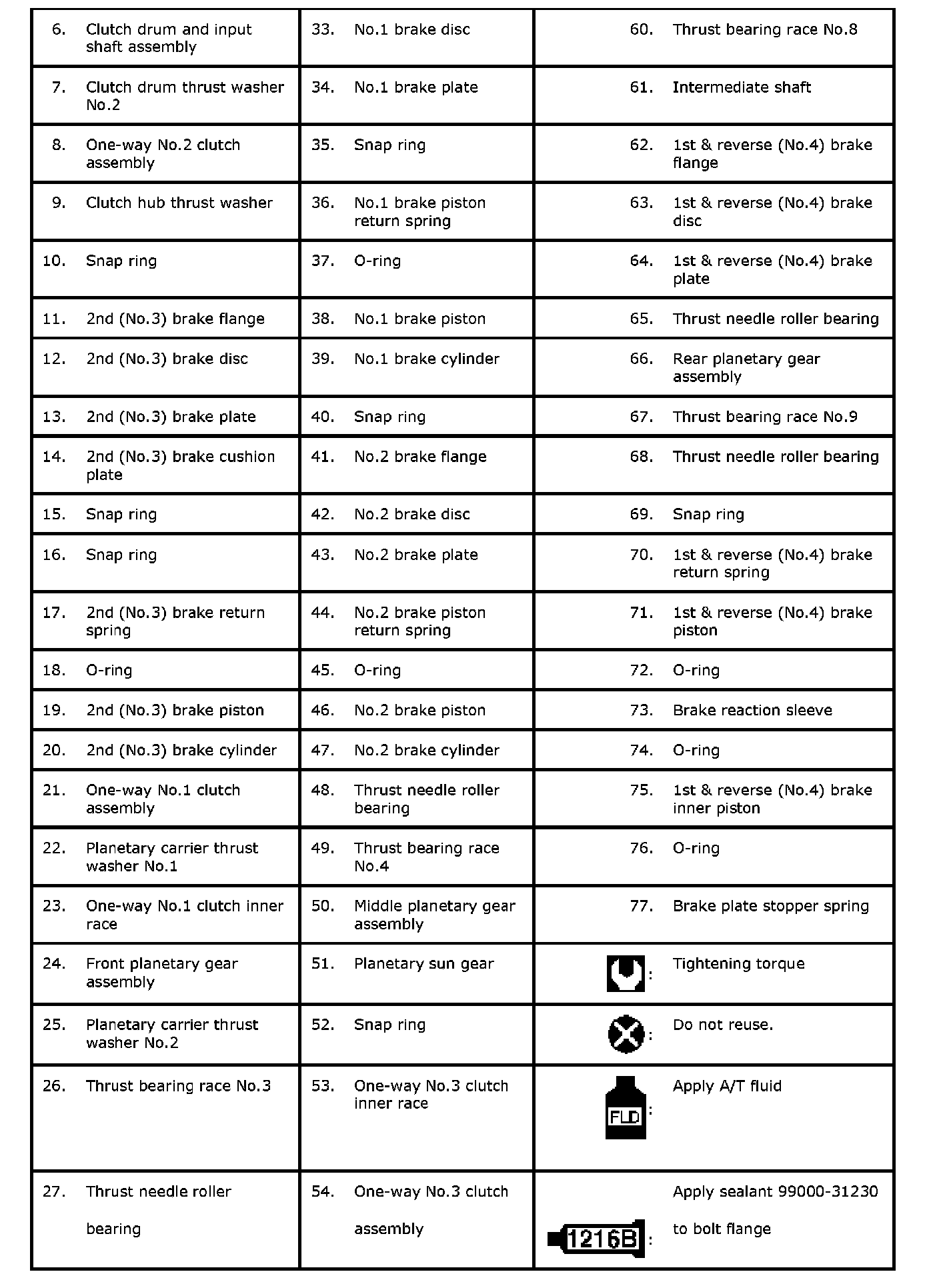

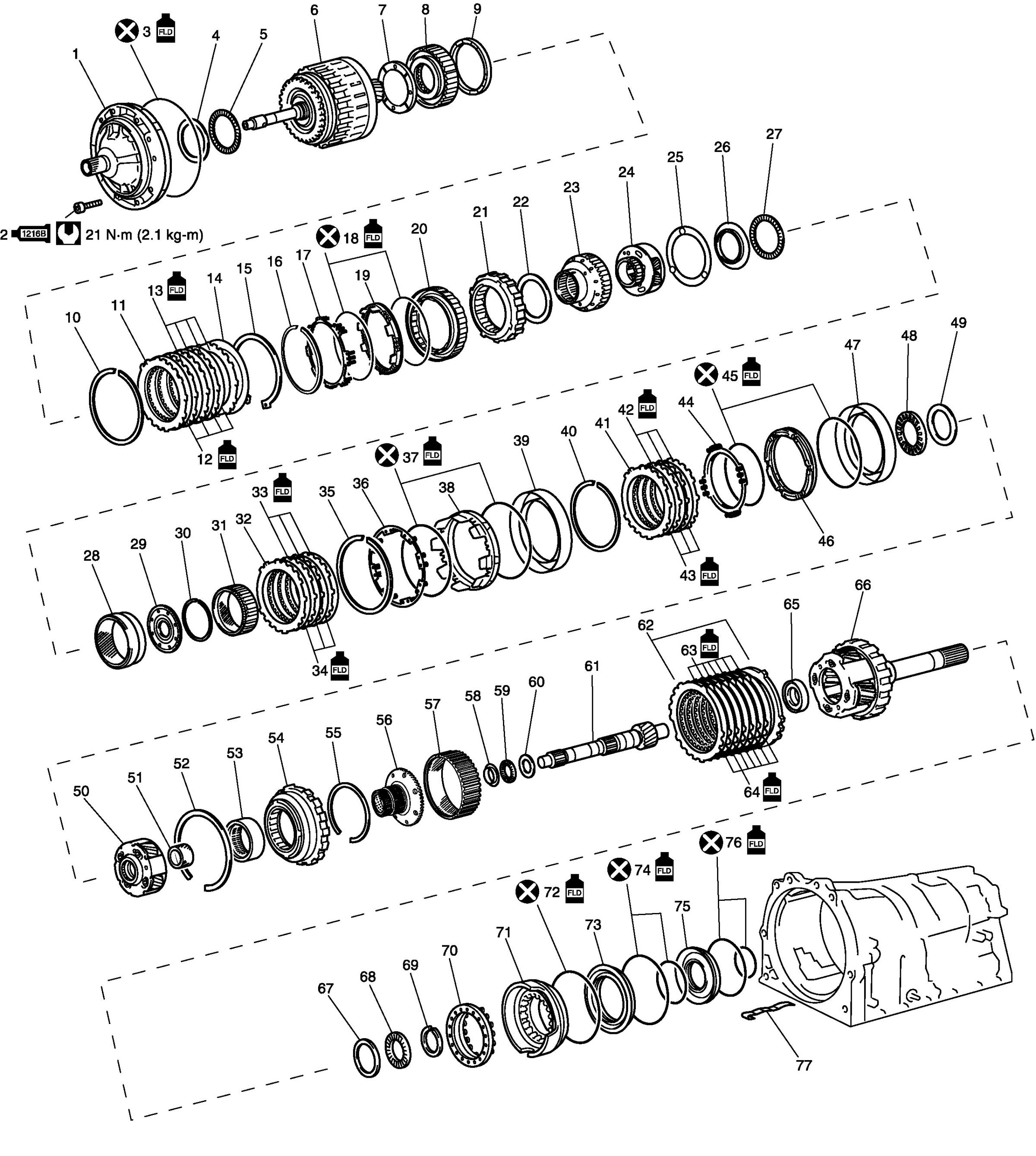

Automatic Transmission Unit Components:
Automatic Transmission Unit Components:
Automatic Transmission Unit Components:
