Engine Symptom Diagnosis

Engine Symptom Diagnosis

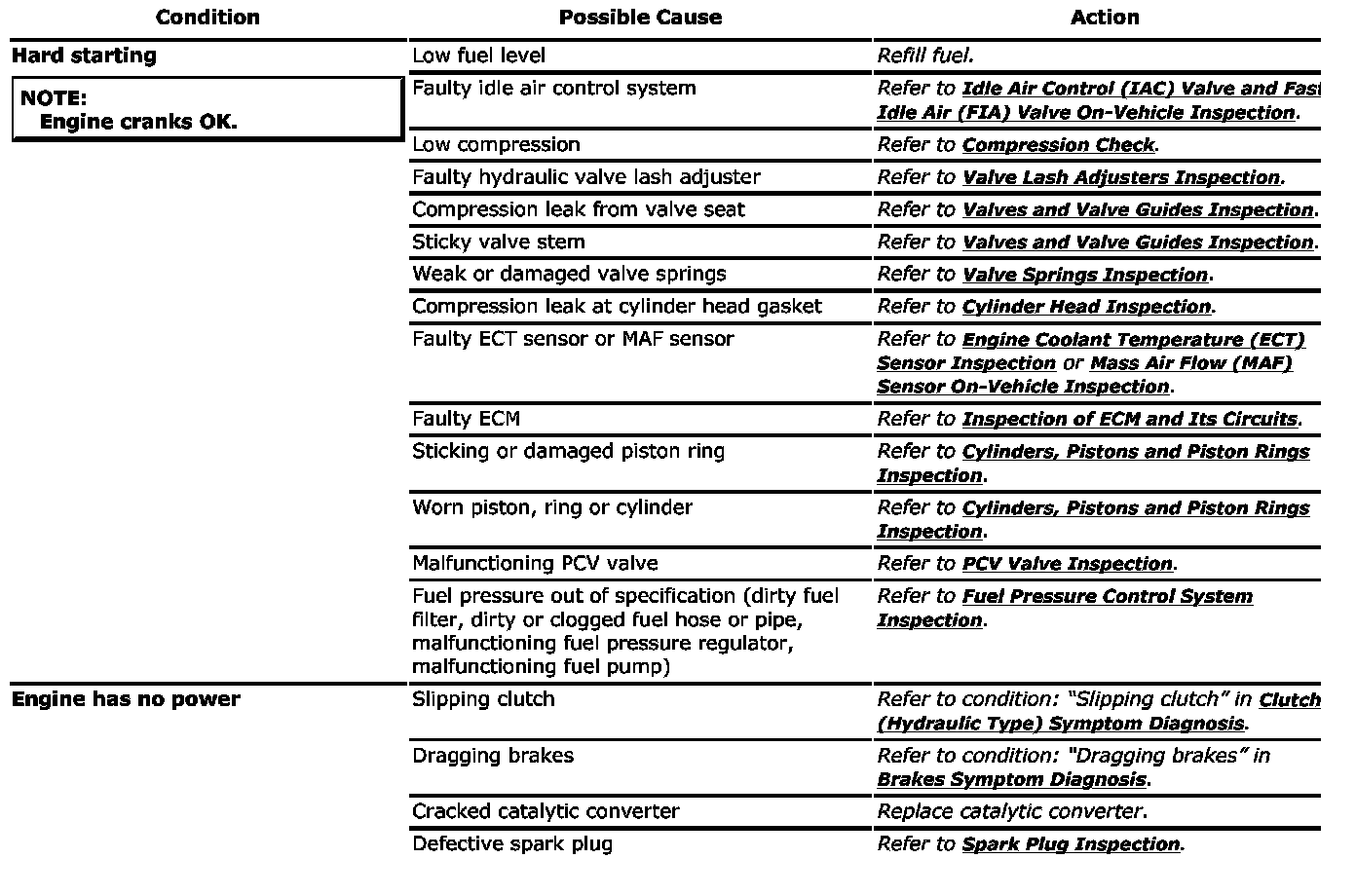

Engine Symptom Diagnosis Part 1:

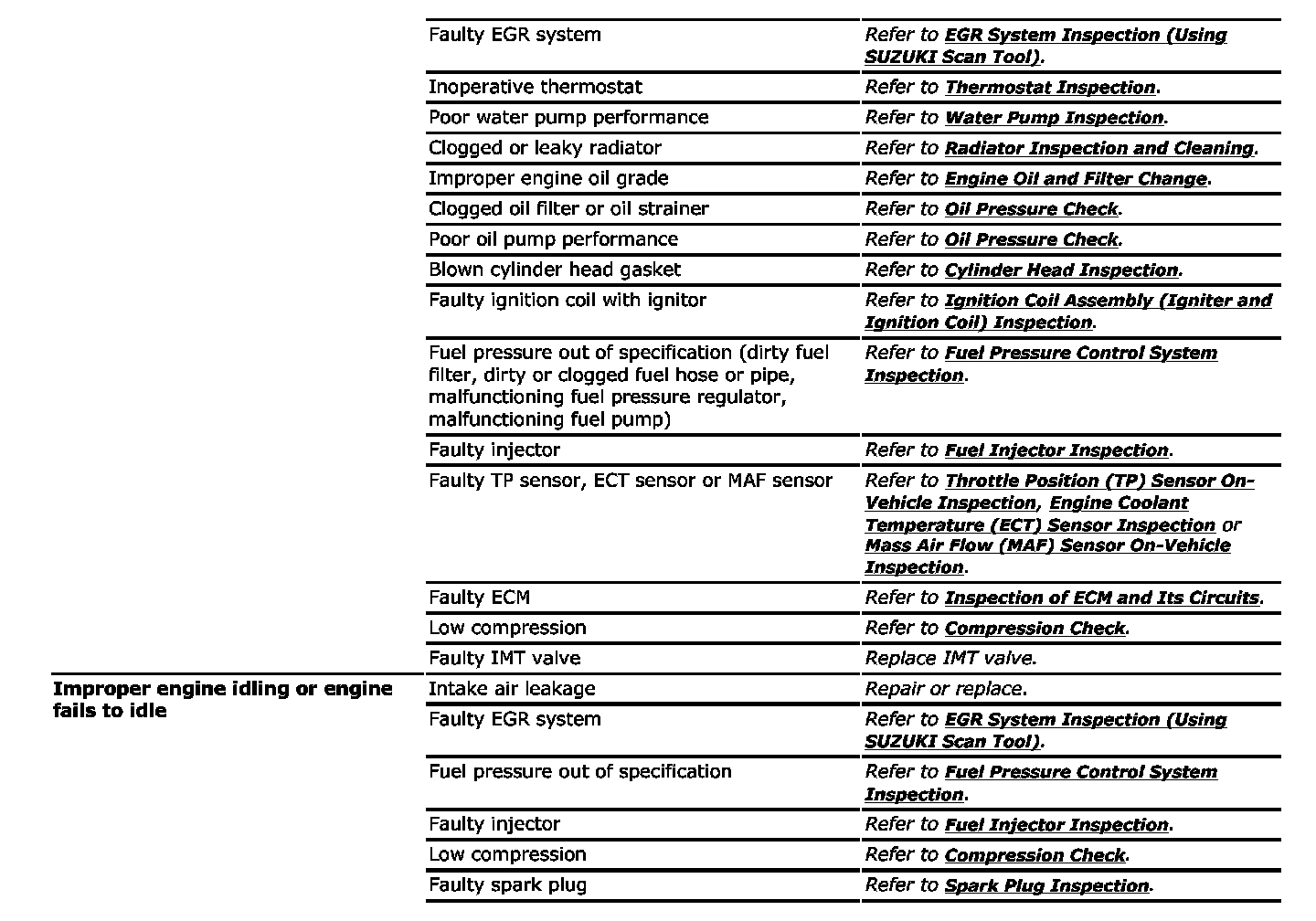

Engine Symptom Diagnosis Part 2:

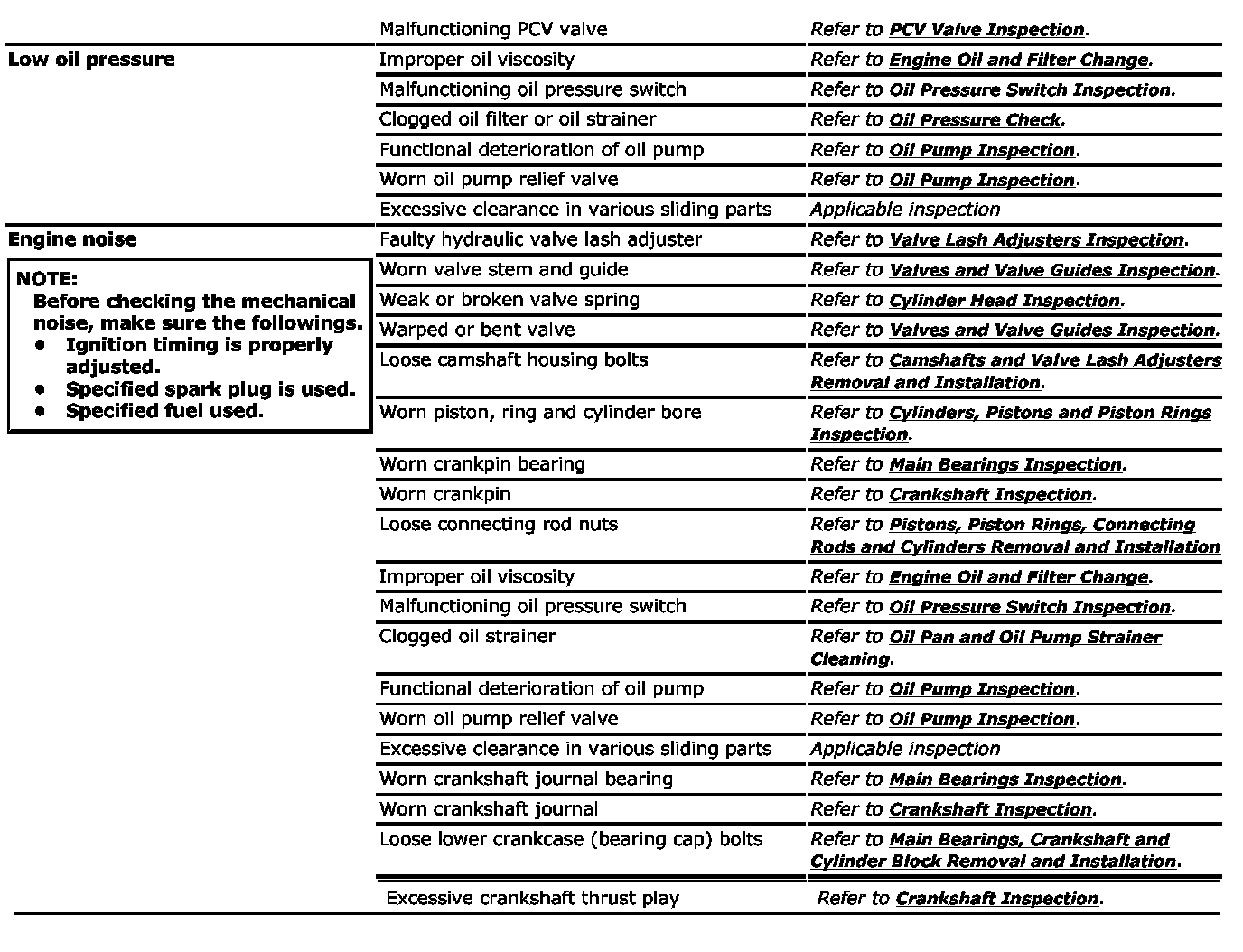

Engine Symptom Diagnosis Part 3:

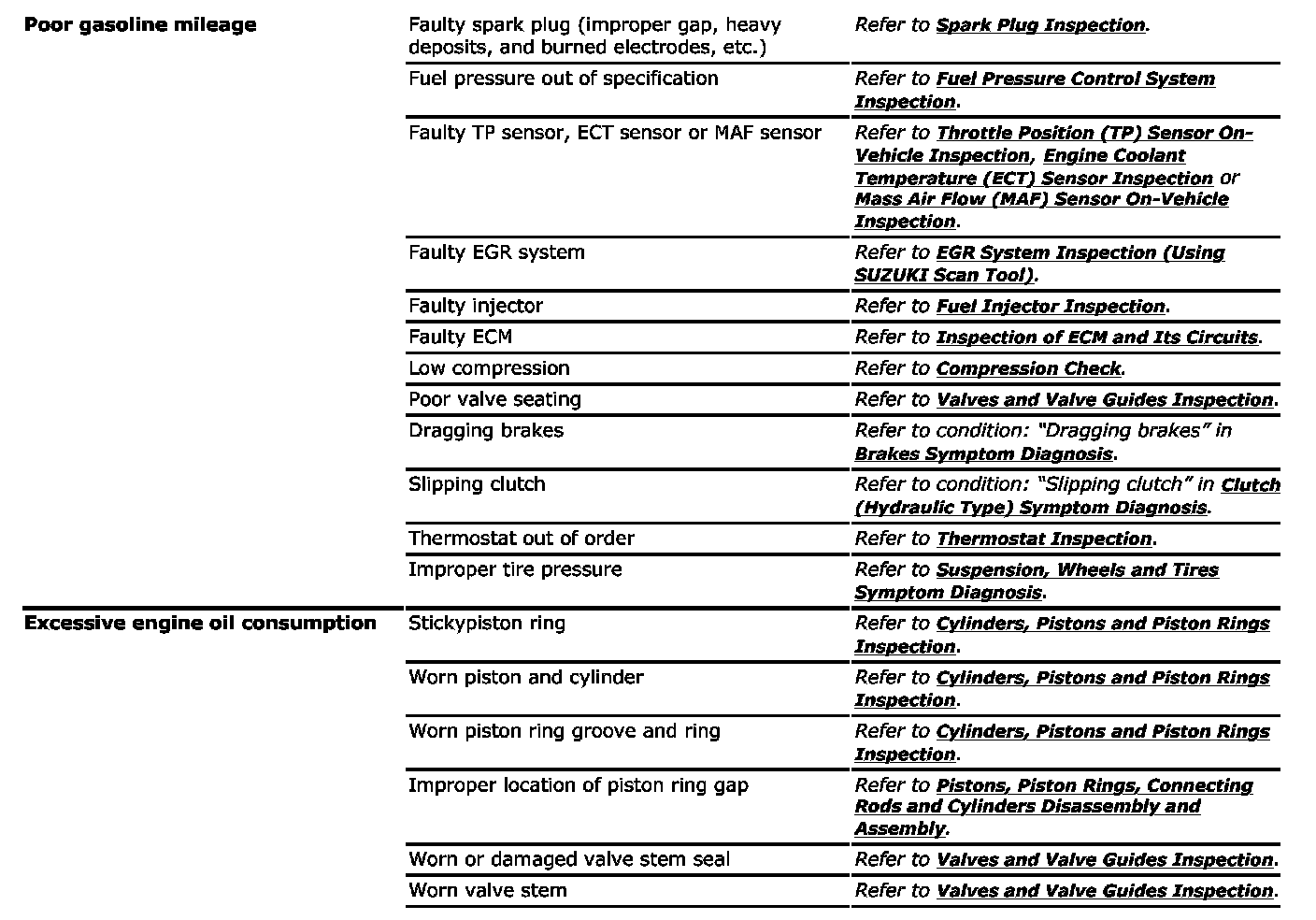

Engine Symptom Diagnosis Part 4:

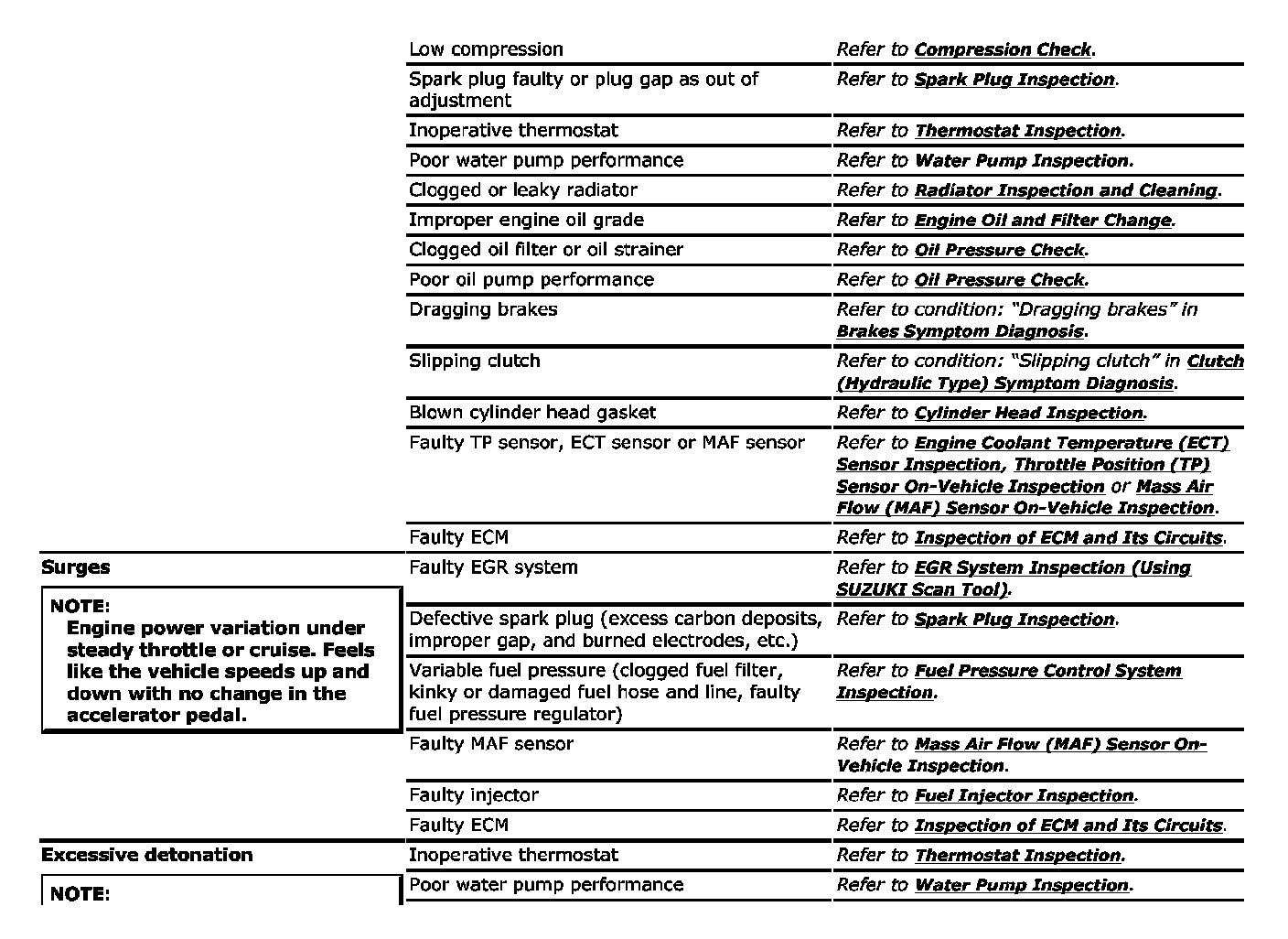

Engine Symptom Diagnosis Part 5:

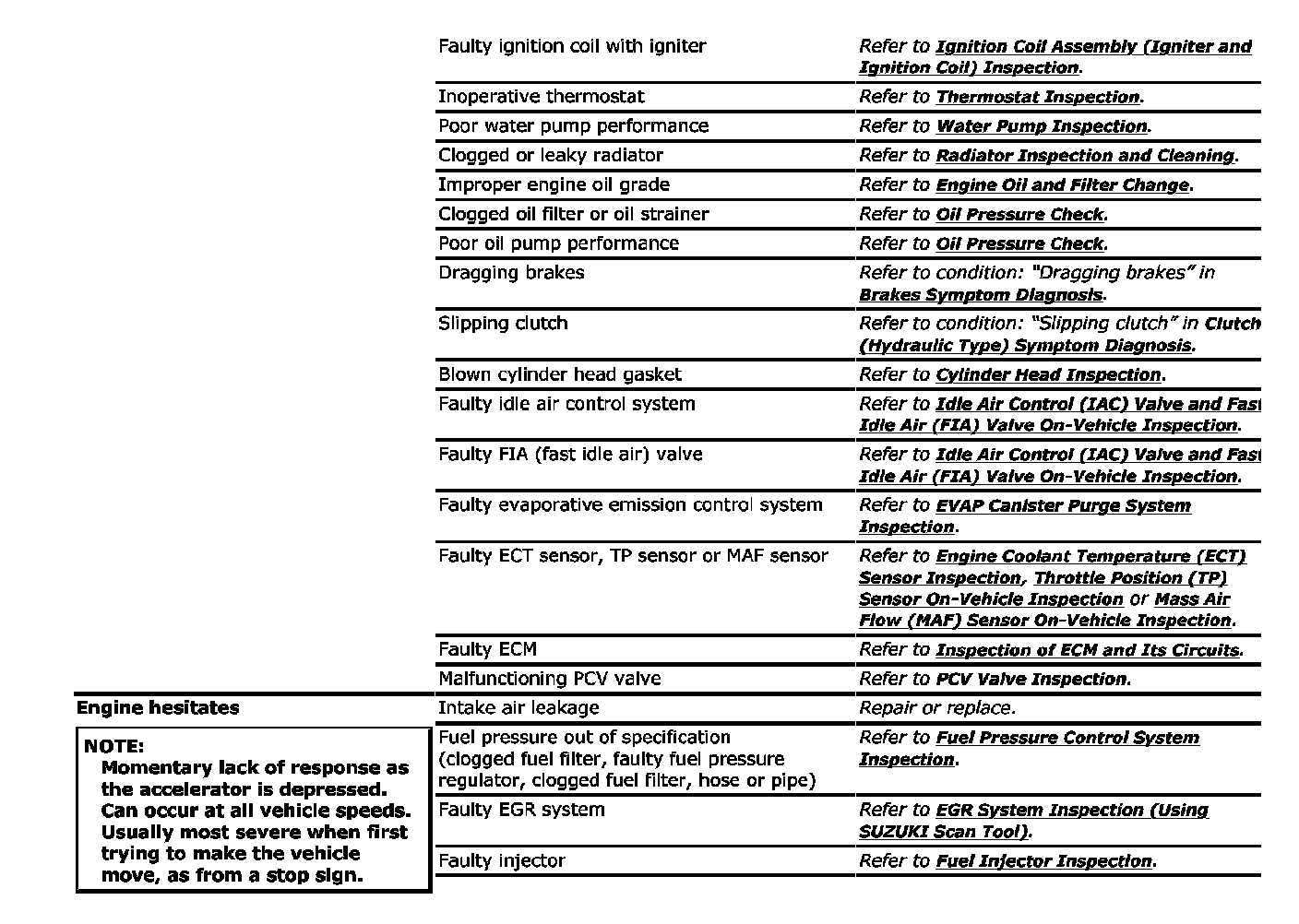

Engine Symptom Diagnosis Part 6:

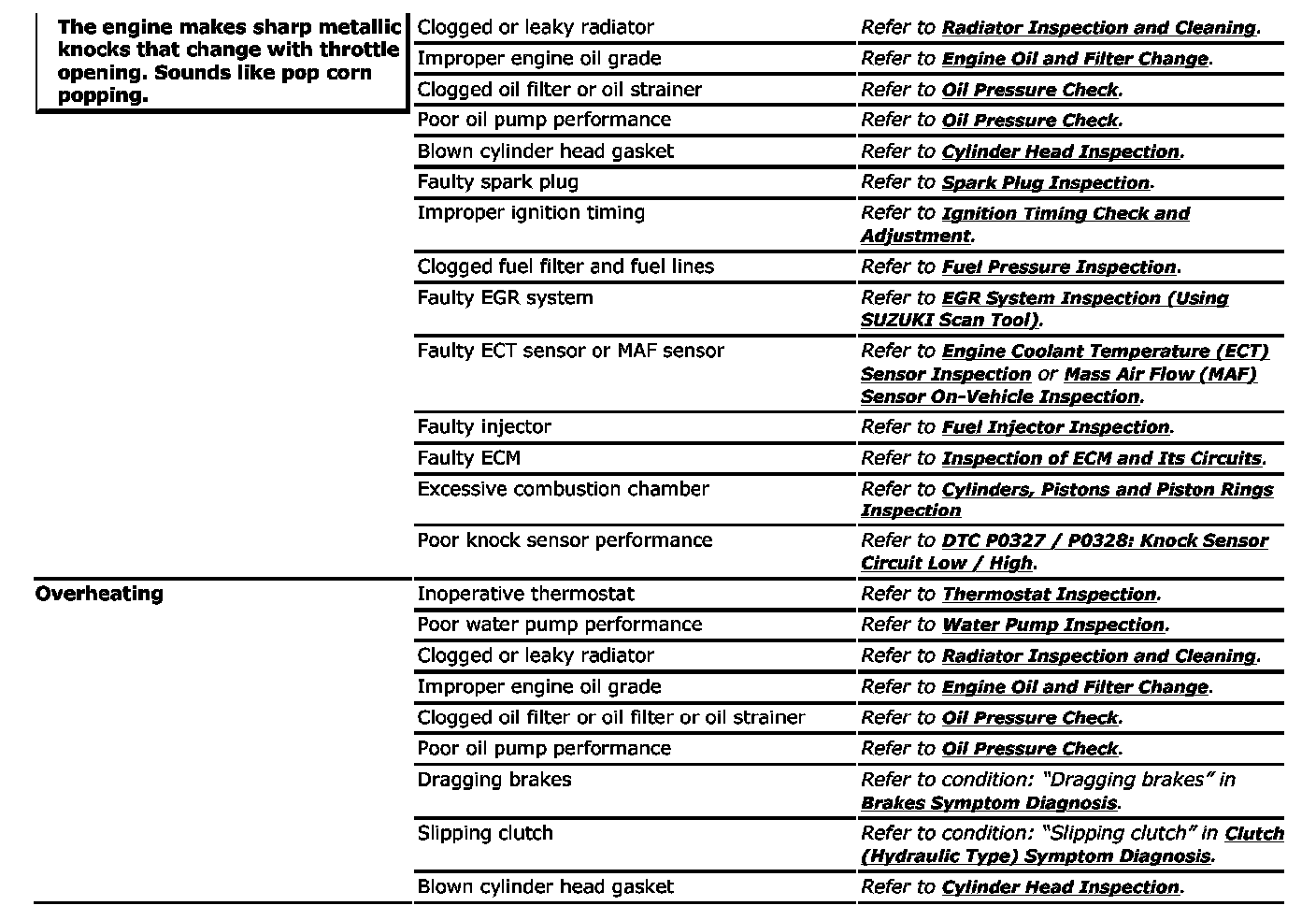

Engine Symptom Diagnosis Part 7:

Perform troubleshooting referring to the above tables when ECM has detected no DTC and no abnormality has been found in Visual Inspection and Engine Basic Check.
