Main (Front) A/C System

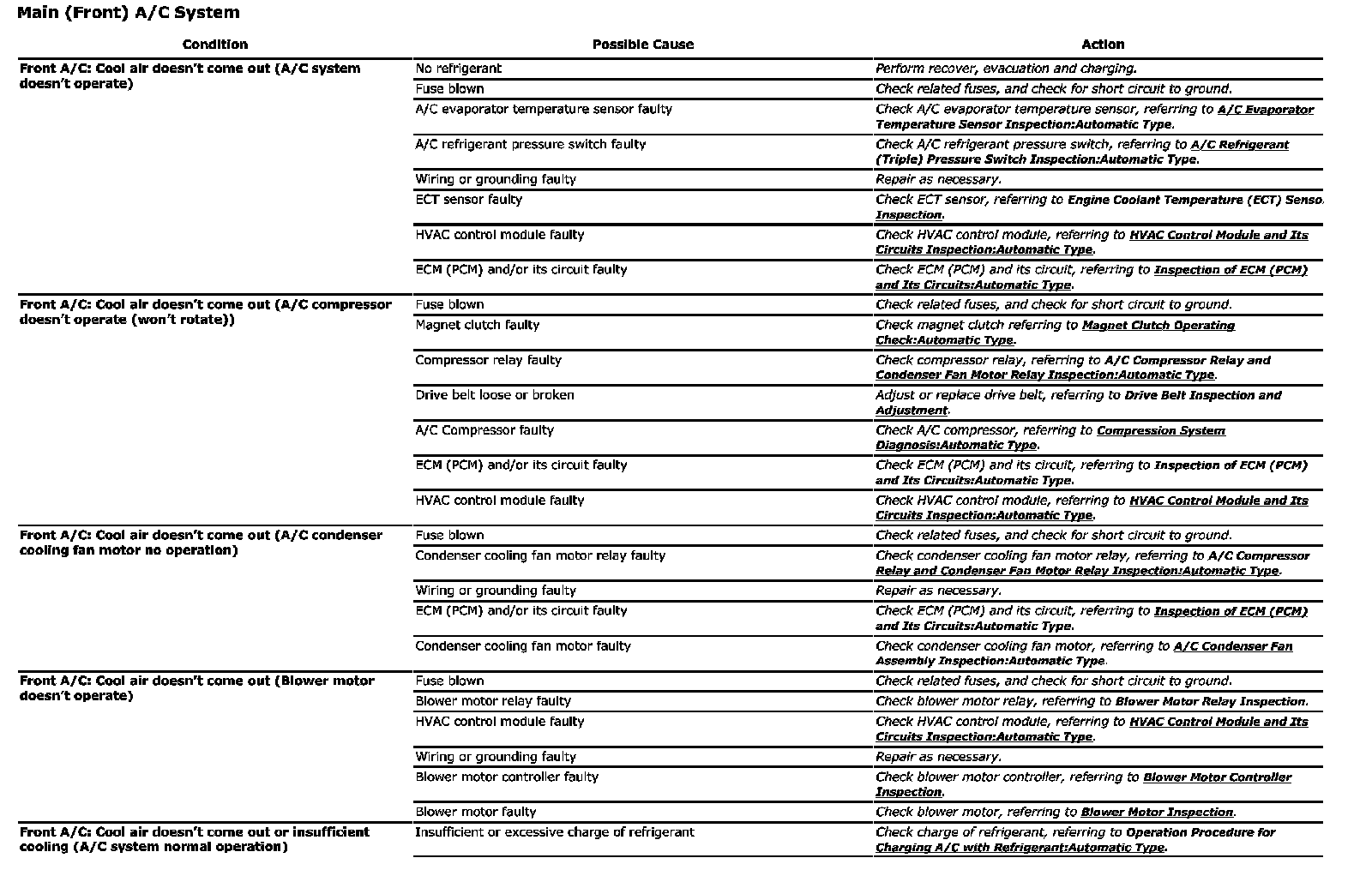

Main (Front) A/C System Part 1:

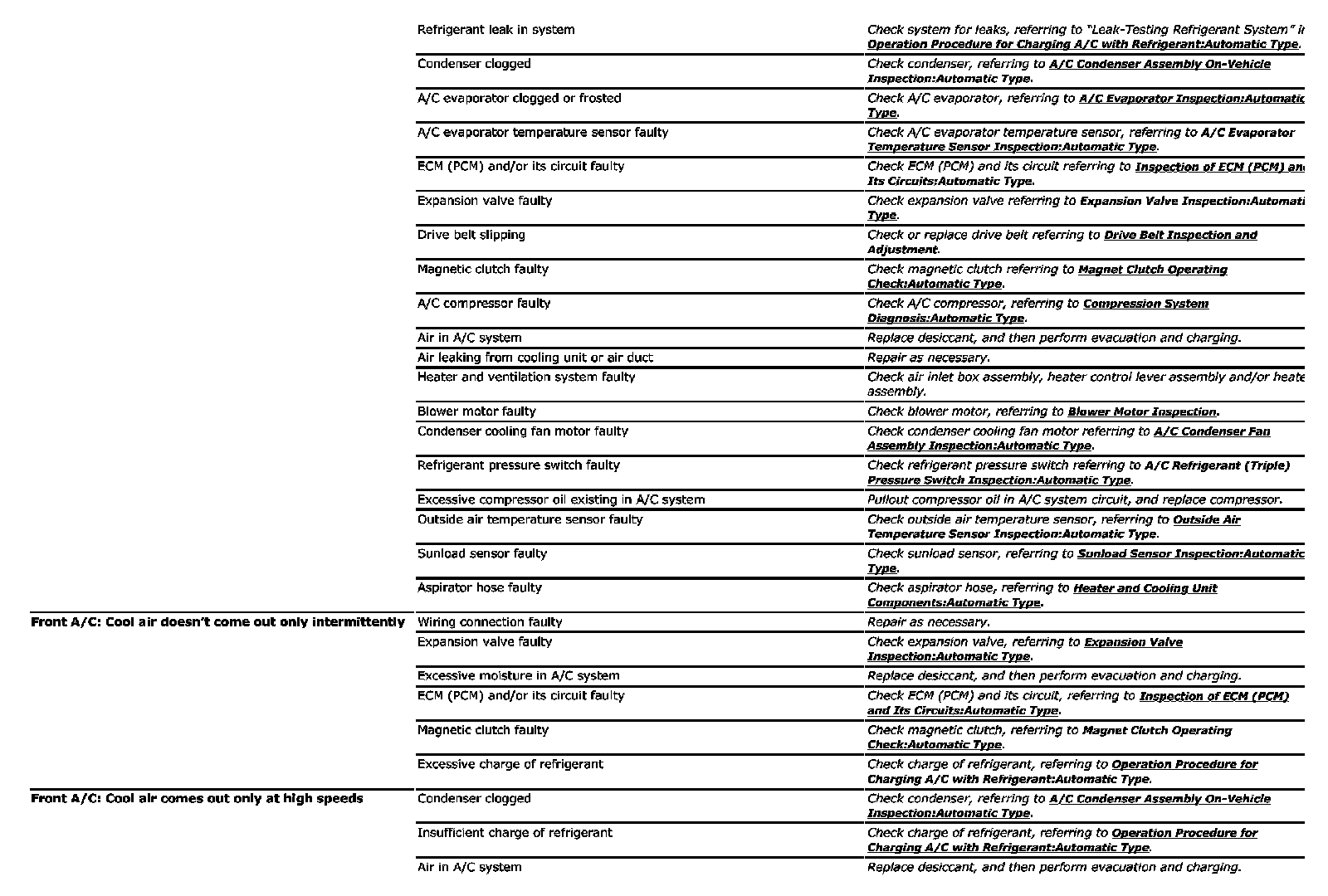

Main (Front) A/C System Part 2:
Main (Front) A/C System Part 3:
