G Connectors

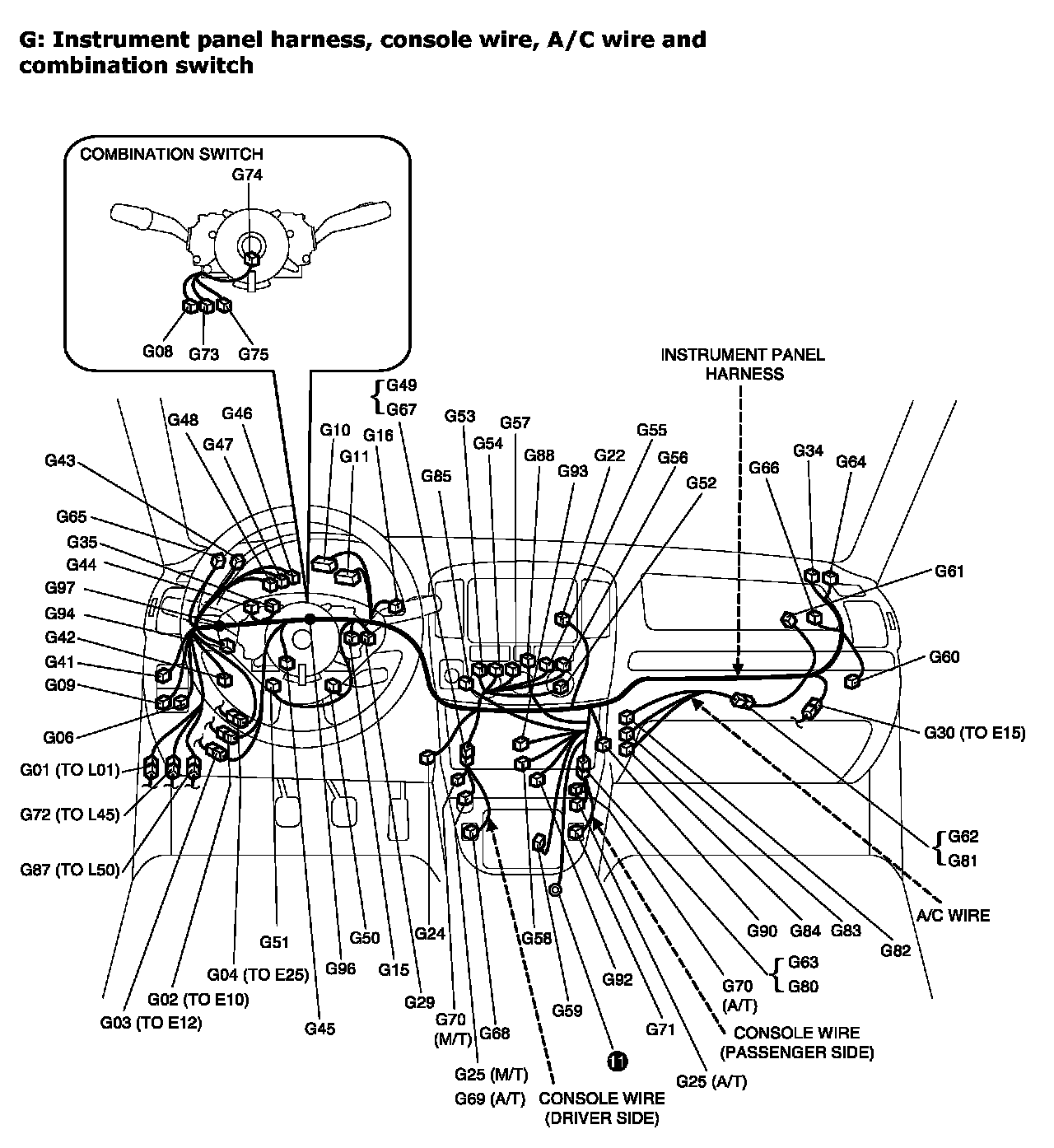

G: Instrument panel harness, console wire, A/C wire and combination switch View:

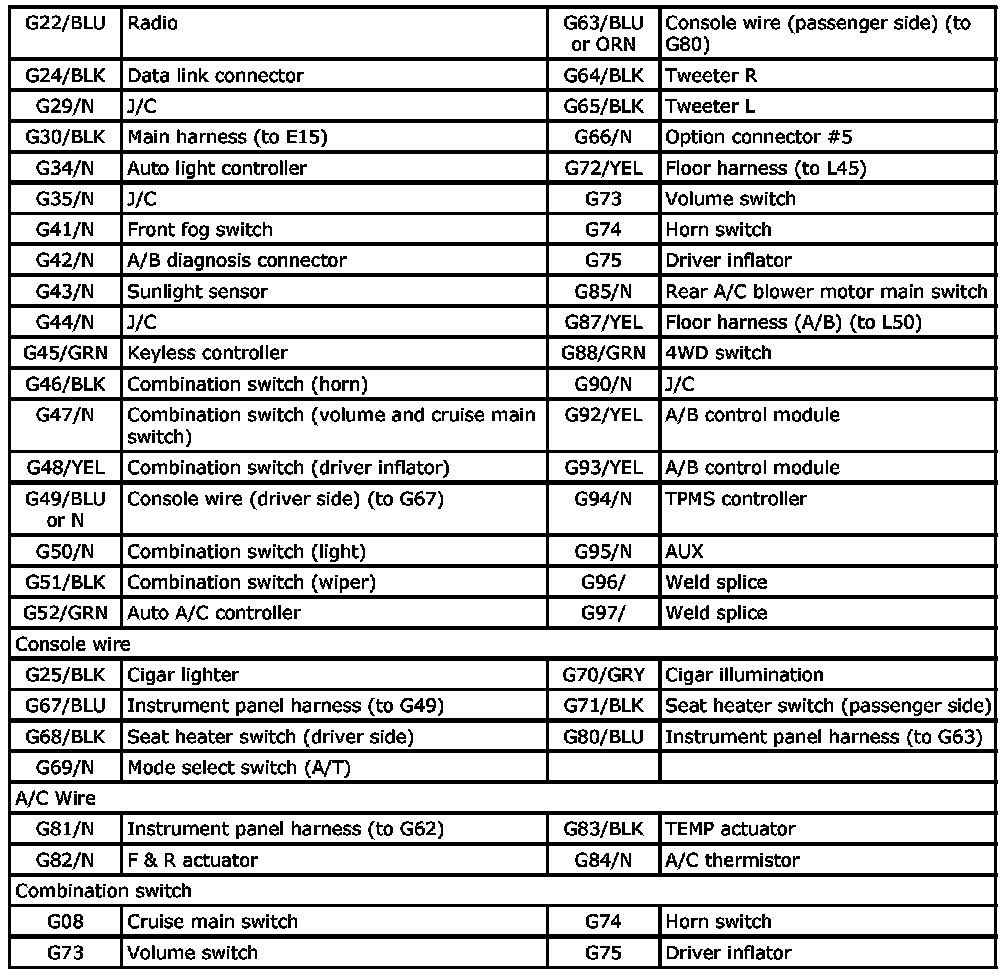

G: Instrument panel harness, console wire, A/C wire and combination switch Index:



G: Instrument panel harness, console wire, A/C wire and combination switch Index:
