ABS Warning Lamp Flashes Continuously While Ignition Switch Is on
ABS Warning Lamp Flashes Continuously while Ignition Switch Is ONWiring Diagram
Circuit Description
When diagnosis switch terminal is shorted or connected to the ground with ignition switch ON, DTC is indicated by flashing of ABS warning lamp only in the following cases.
^ Normal DTC 12 is indicated if no malfunction DTC is detected in the ABS.
^ Current and/or history malfunction DTC is indicated by flashing of the lamp that point although the current and/or history malfunction DTC is stored in memory.

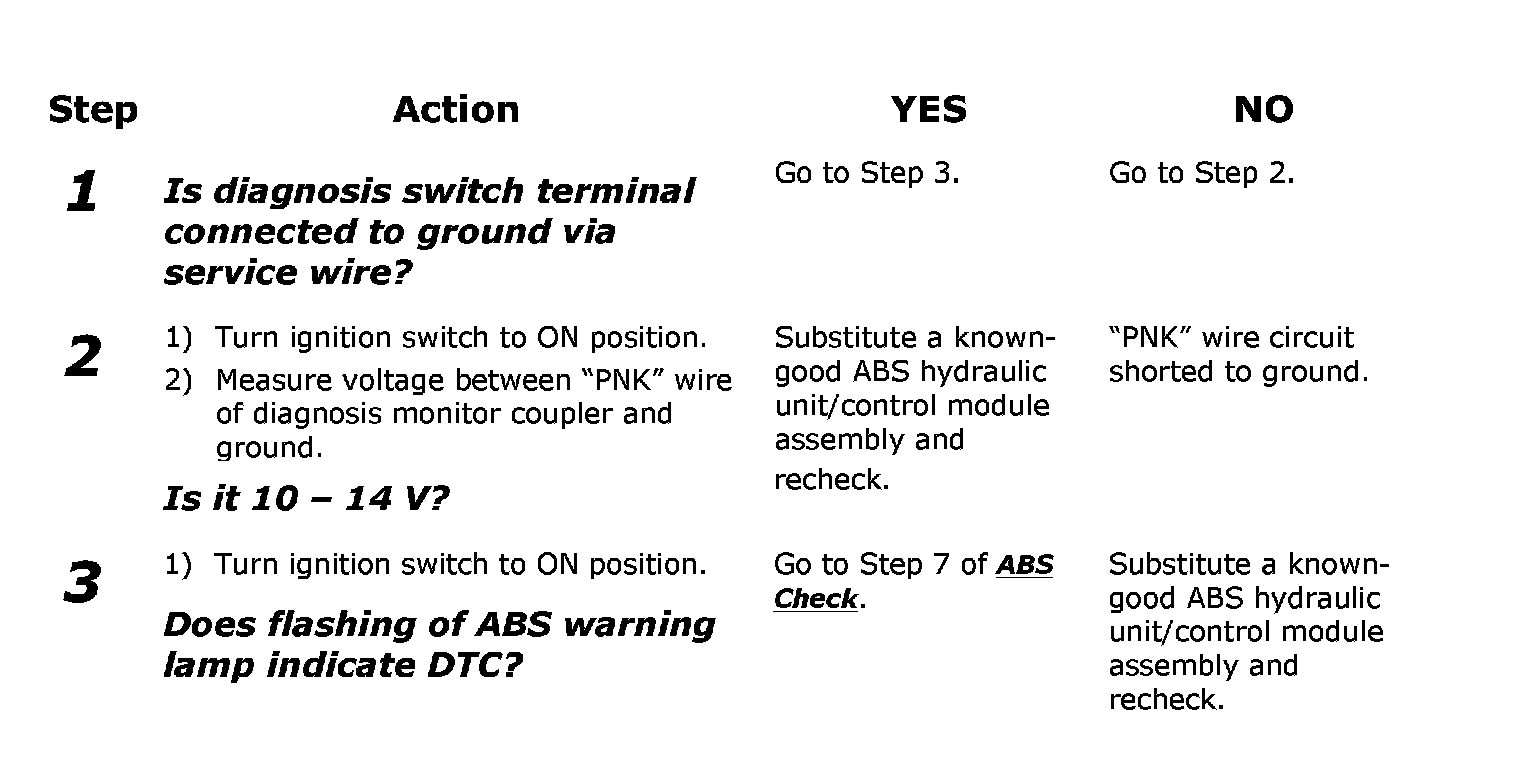

Troubleshooting
