BCM Power Circuit and Ground Circuit Check

BCM Power Circuit and Ground Circuit Check

Wiring Diagram:




Wiring Diagram

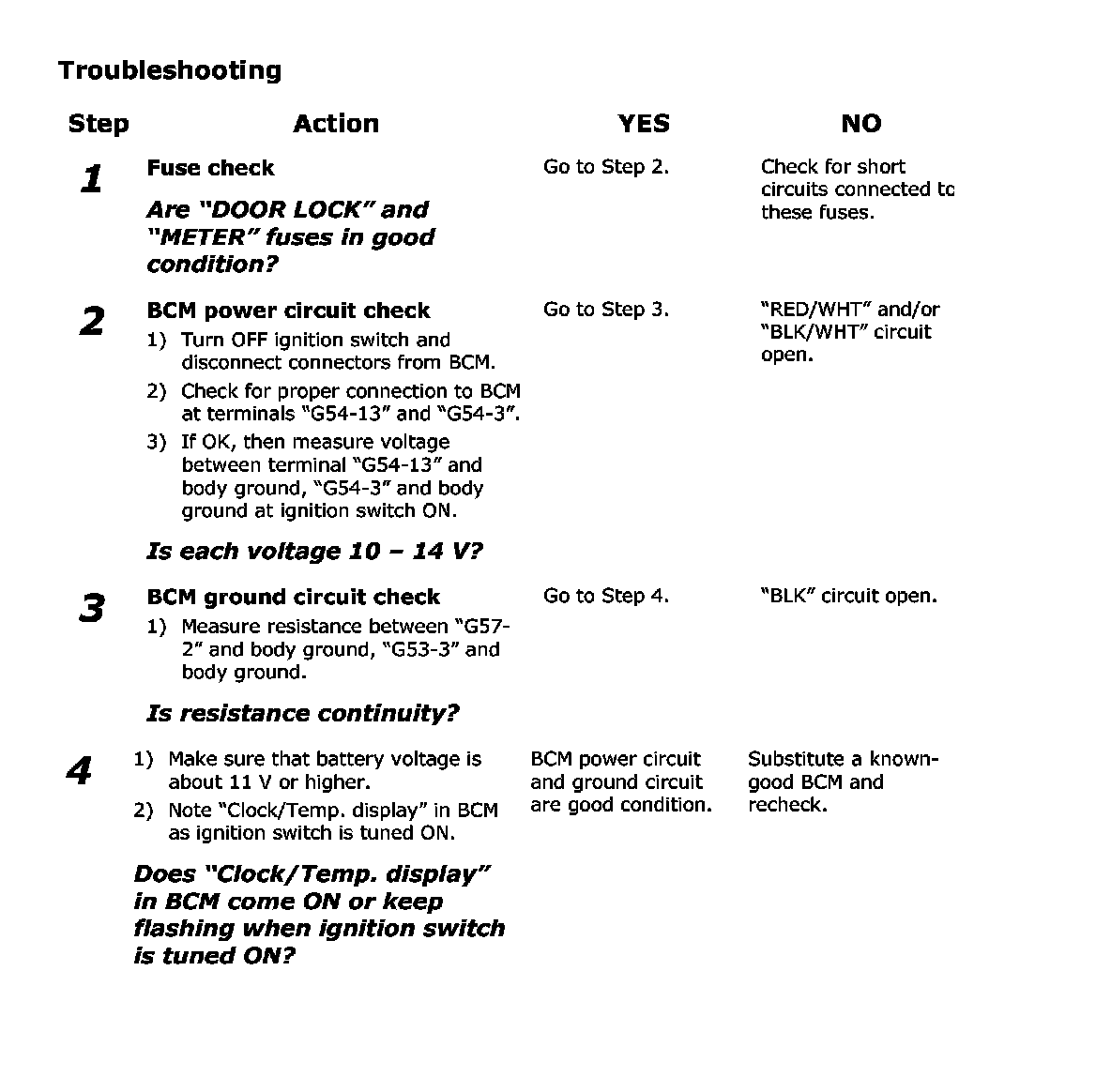

Step 1 - 4:




Troubleshooting
