P0113

DTC P0113: Intake Air Temperature Sensor Circuit High

Wiring Diagram:

Wiring Diagram




DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. Connect scan tool to DLC with ignition switch turned OFF.
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run engine at idle speed for 10 sec.
3. Check DTC by using scan tool.

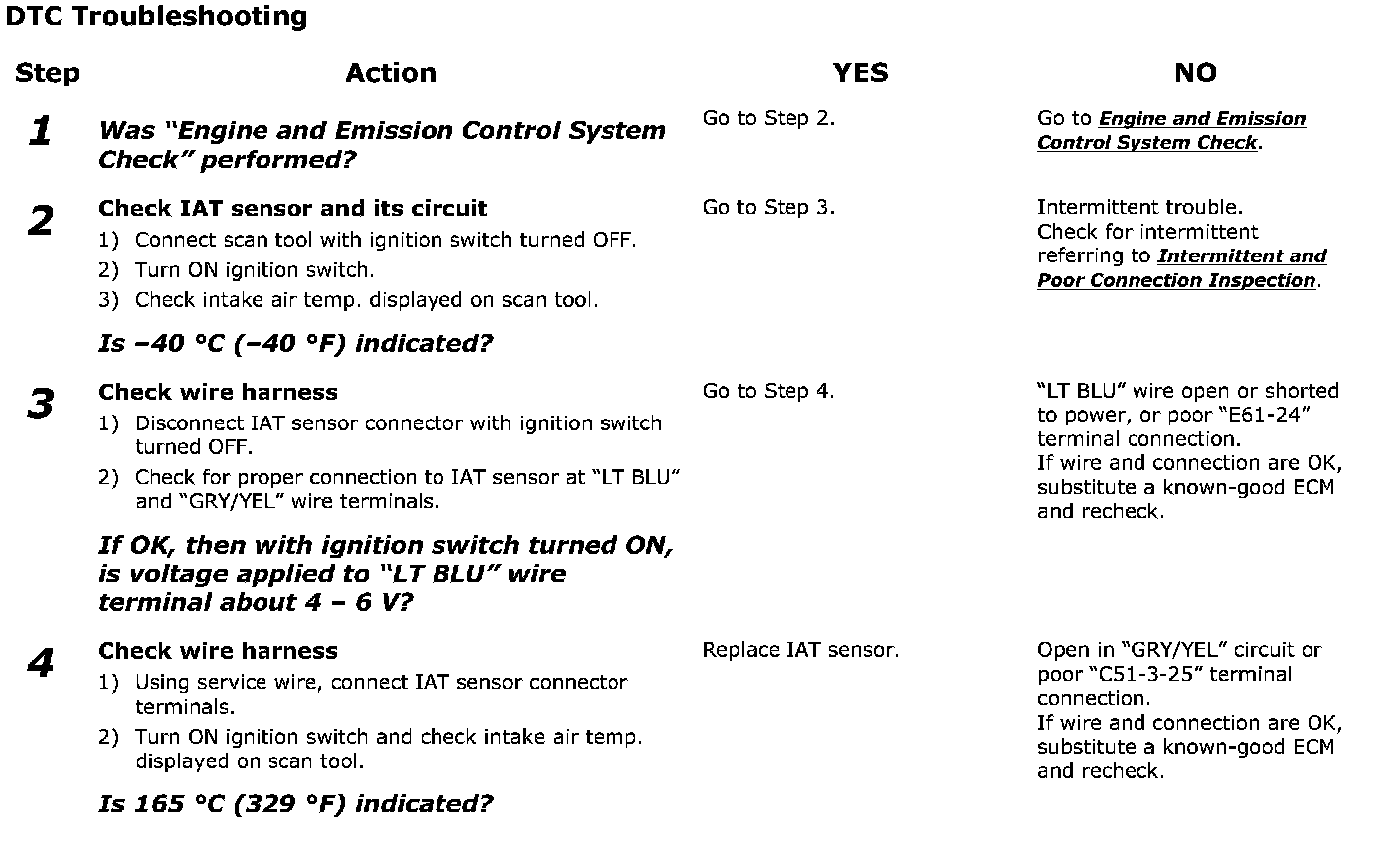

Step 1 - 4:

DTC Troubleshooting
