P0107

DTC P0107 : Manifold Absolute Pressure Circuit Low Input / High Input

Wiring Diagram:

Wiring Diagram




DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. Connect scan tool to DLC with ignition switch turned OFF.
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and start engine.
3. Run engine at idle speed for 10 sec.
4. Check pending DTC by using scan tool.

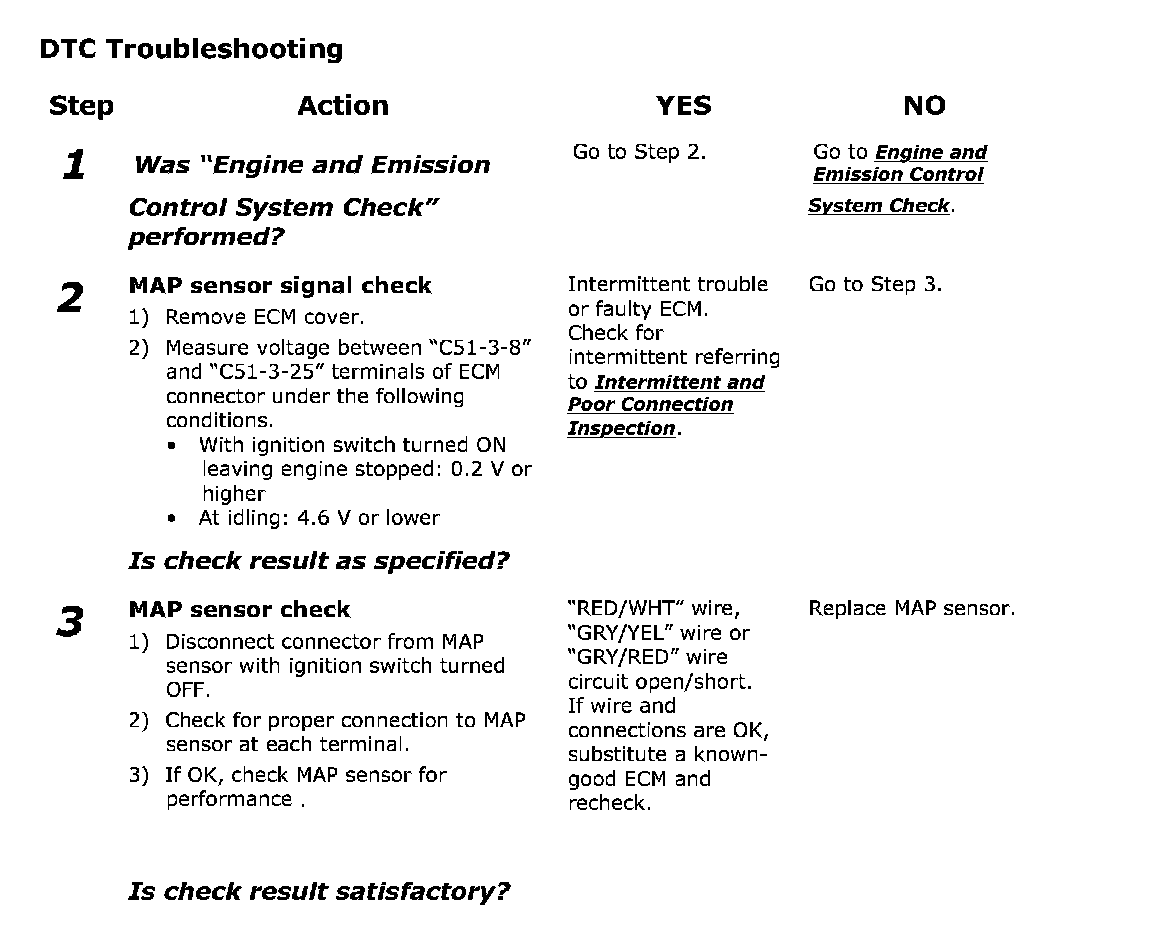

Step 1 - 3:

DTC Troubleshooting
