Transmission Control System

DTC P0713 (No.36): Transmission Fluid Temperature Sensor A Circuit High

Wiring Diagram








DTC Detecting Condition and Trouble Area

DTC Detecting Condition and Trouble Area:

DTC Confirmation Procedure
1. Connect scan tool to DLC with ignition switch OFF.
2. Clear DTCs in TCM and ECM memories by using scan tool.
3. Start engine.
4. Start vehicle and increase vehicle speed to about 40 km/h (25 mile/h) for 20 minutes or more.
5. Stop vehicle.
6. Check DTC, pending DTC and freeze-frame data.

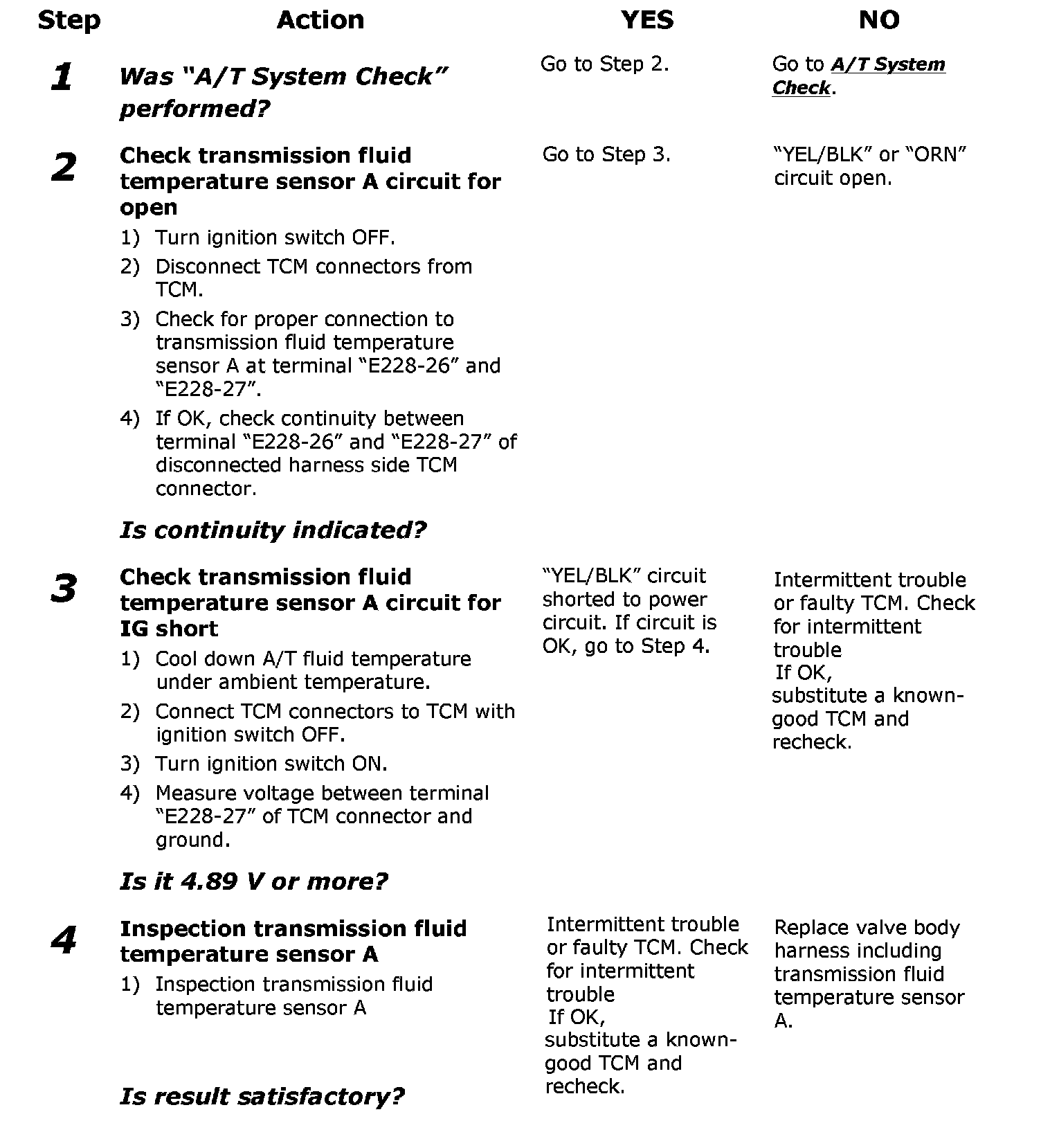

DTC Troubleshooting

Steps 1-4:
