Transmission Control System

DTC P0722 (No.31): Output Speed Sensor Circuit No Signal

Wiring Diagram








DTC Detecting Condition and Trouble Area

DTC Detecting Condition and Trouble Area:

DTC Confirmation Procedure
1. Connect scan tool to DLC with ignition switch OFF.
2. Clear DTCs in TCM and ECM memories by using scan tool.
3. Start engine and shift select lever to D range.
4. Start vehicle and increase vehicle speed to about 80 km/h (50 mile/h) for 2 minutes or more.
5. Stop vehicle.
6. Check DTC, pending DTC and freeze-frame data.

DTC Troubleshooting

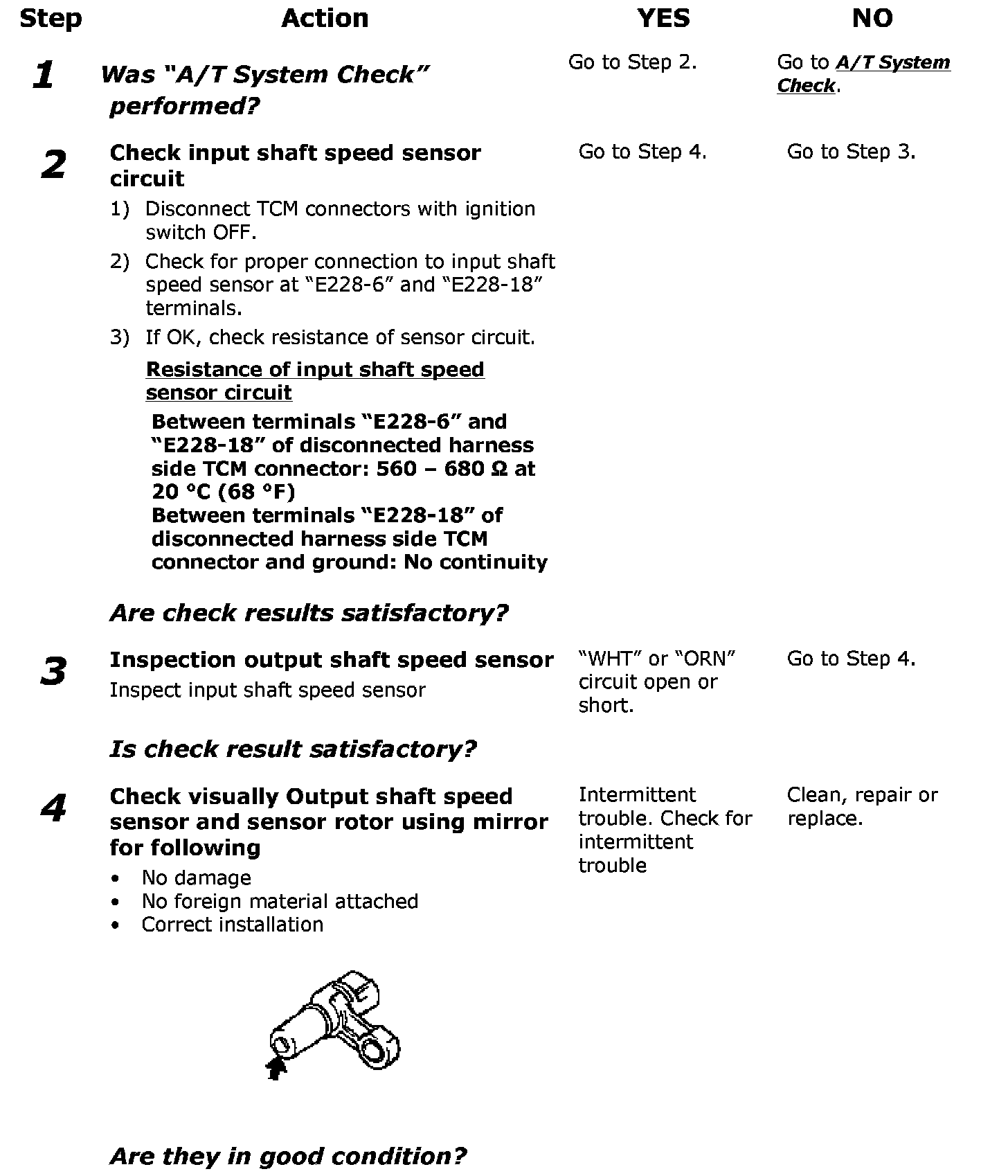

Steps 1-4:
