Buzzers, Relays & Timers

BUZZERS, RELAYS & TIMERS LOCATION

Component Location

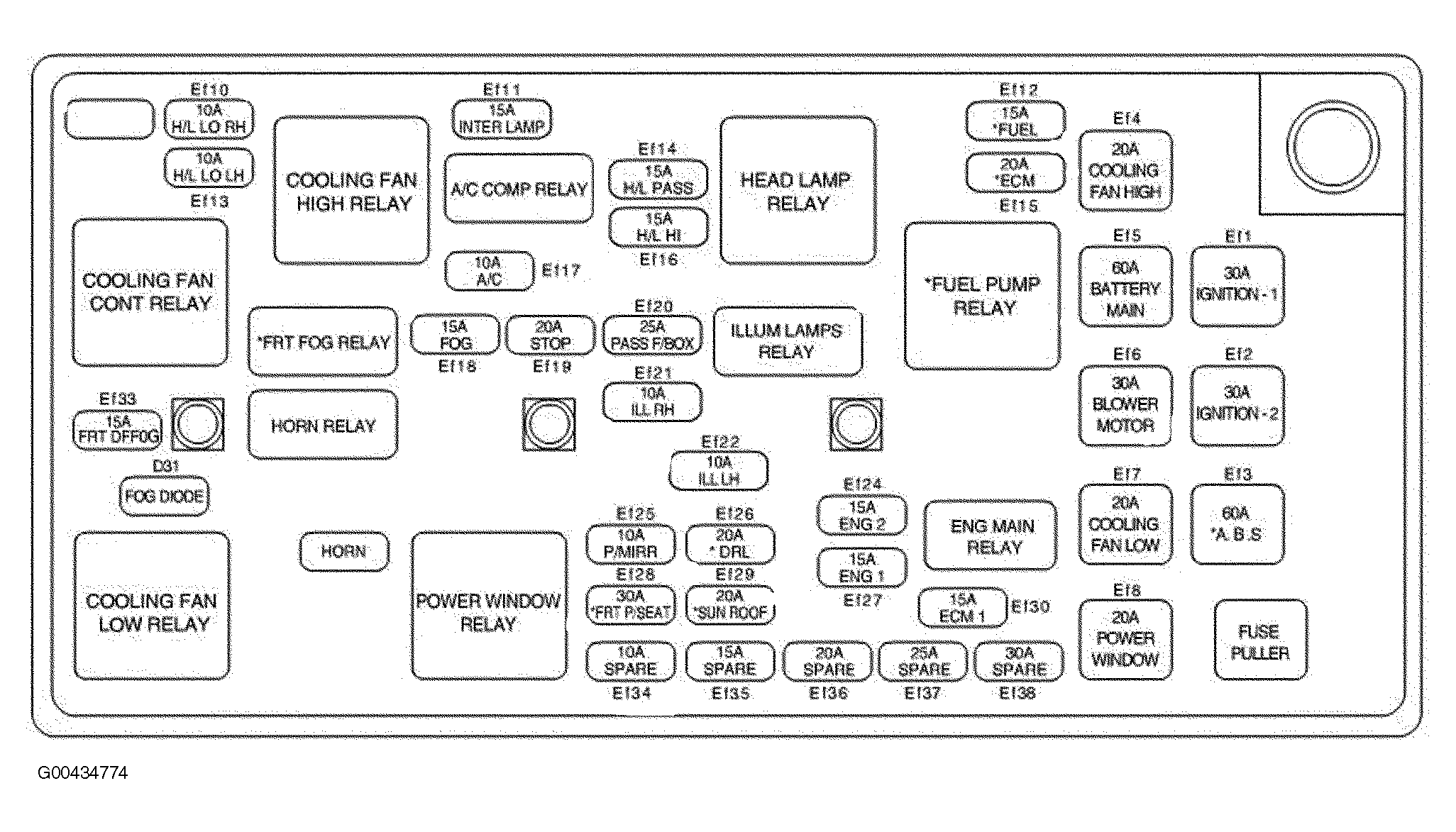

A/C Compressor Relay In engine room fuse block. See Figure.
Cooling Fan Control Relay In engine room fuse block. See Figure.
Cooling Fan High Relay In engine room fuse block. See Figure.
Cooling Fan Low Relay In engine room fuse block. See Figure.
Engine Main Relay In engine room fuse block. See Figure.
Front Fog Relay In engine room fuse block. See Figure.
Fuel Pump Relay In engine room fuse block. See Figure.
Head Lamp Relay In engine room fuse block. See Figure.
Horn Relay In engine room fuse block. See Figure.
Illumination Relay In engine room fuse block. See Figure.
Power Window Relay In engine room fuse bock. See Figure.
