Throttle Body Assembly Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the throttle body assembly.

    Tighten:

    Tighten the throttle body assembly retaining bolts to 8 - 18 N.m (71 - 159 lb-in.).

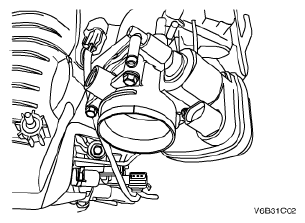

    Fig 1: Identifying Throttle Body Assembly
    G04718854Courtesy of SUZUKI OF AMERICA CORP.
