Inside Lock Rod Removal

  1. Remove the door seal trim. Refer to DOOR SEAL TRIM REMOVAL .
  2. Remove the inside door handle. Refer to Inside Door Handle Removal .
  3. Disconnect the inside lock rods from the lock

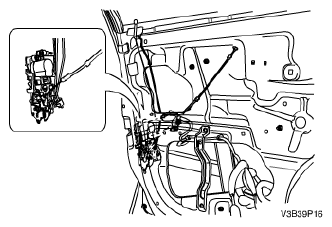

    Fig 1: Identifying Inside Lock Rods & Lock
    G04720484Courtesy of SUZUKI OF AMERICA CORP.
