Glass Antenna Module Removal

  1. Disconnect the negative battery cable.
  2. Remove the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL REMOVAL .
  3. Disconnect the electrical connector.
  4. Remove the screws and the glass antenna module.

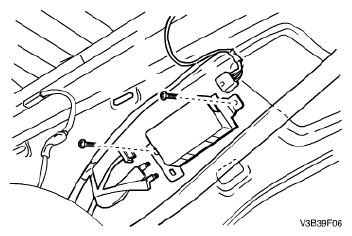

    Fig 1: Identifying Glass Antenna Module With Screws
    G04720712Courtesy of SUZUKI OF AMERICA CORP.
