Automatic Transmission/Transaxle: Locations

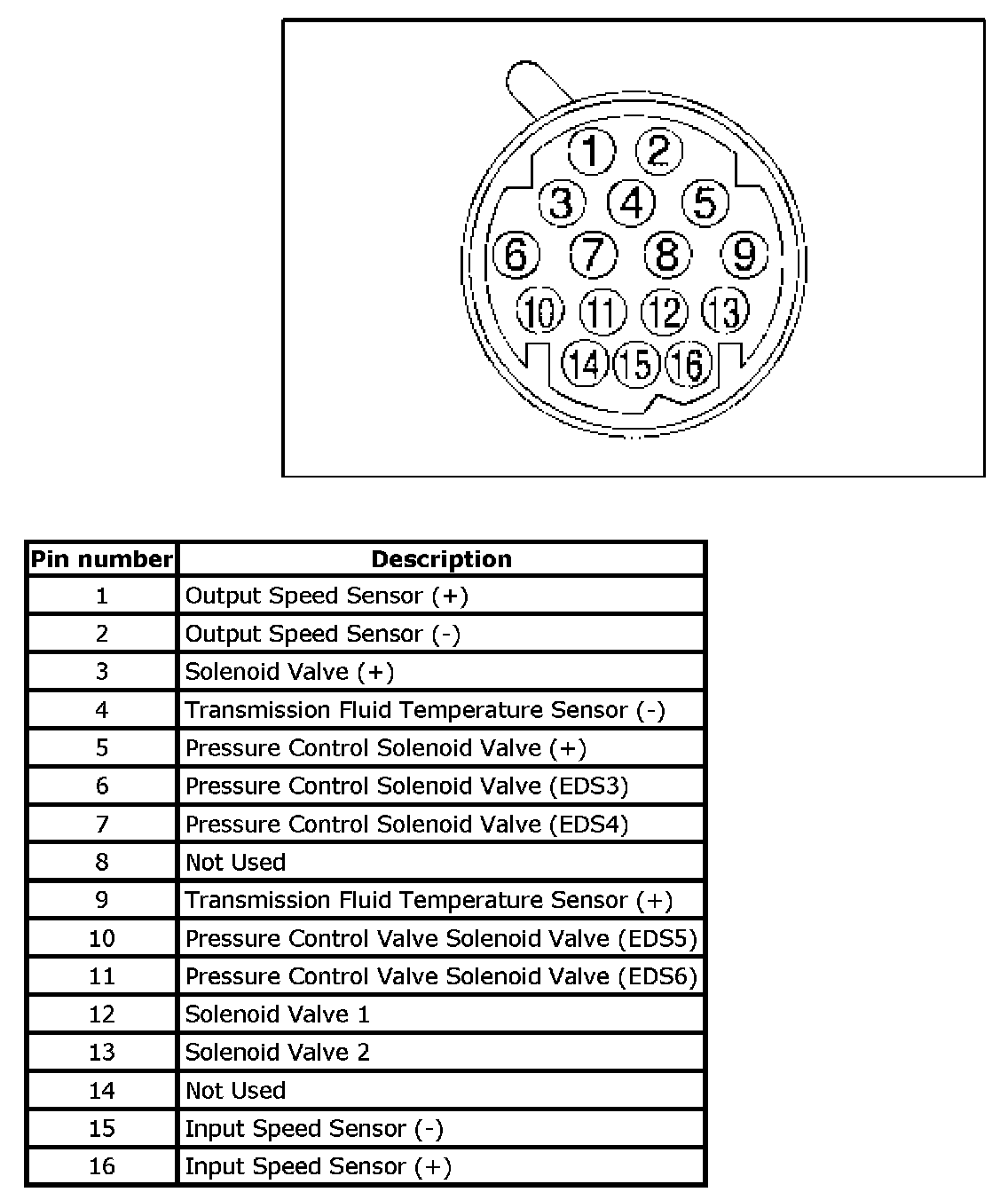

Transaxle Wiring Harness Connector





Wiring Harness Connector

Part 1:




Part 2:





Component Resistance Chart
