Rough Road Wheel Speed Sensor and A/D Converter Circuit
Rough Road Wheel Speed Sensor and A/D Converter Circuit:

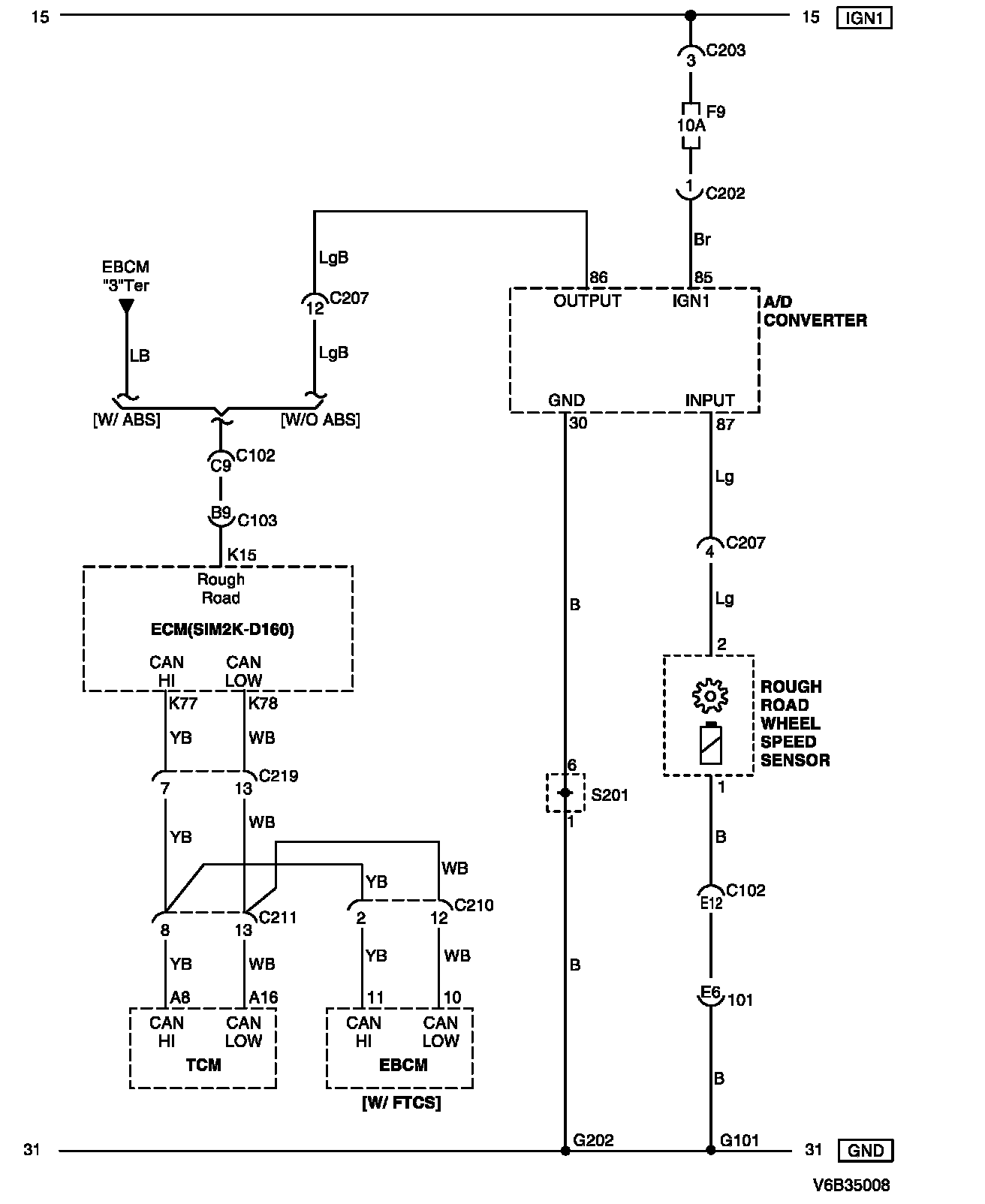

WIRING DIAGRAM
C101 - G202:

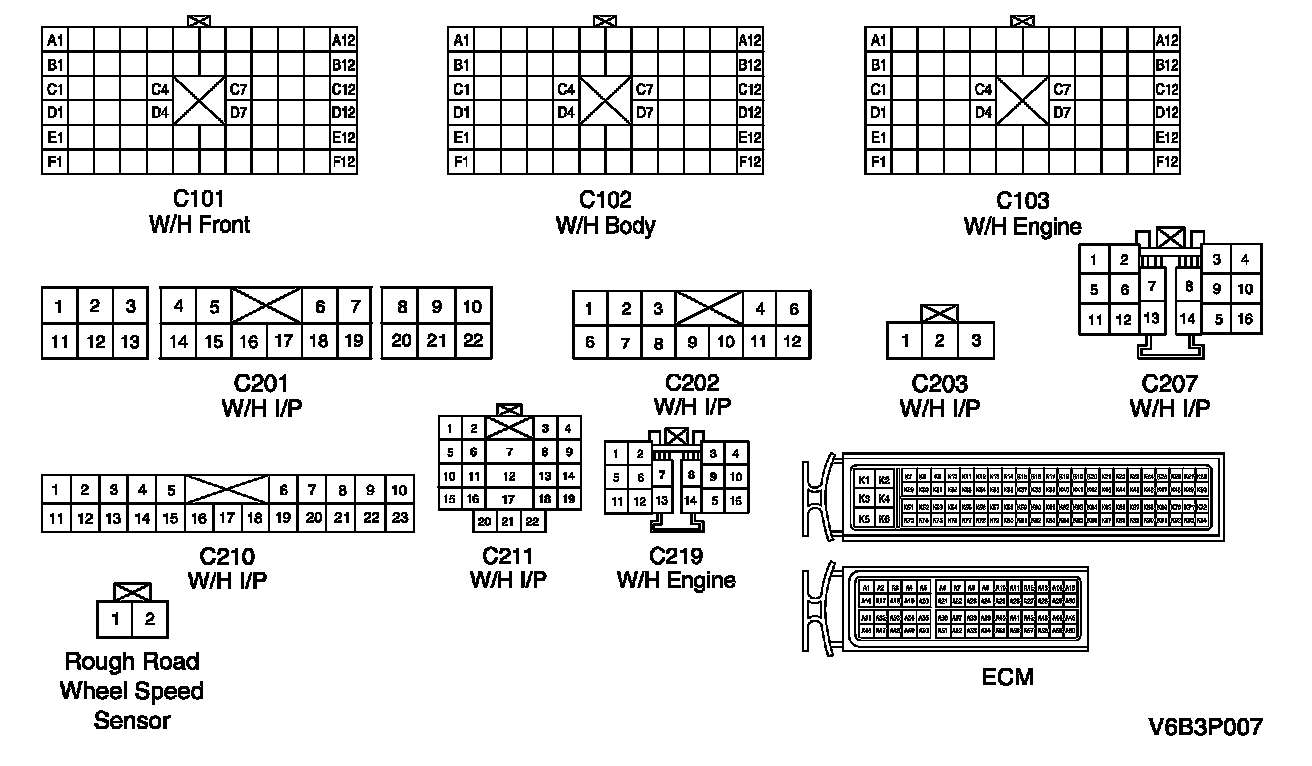

CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

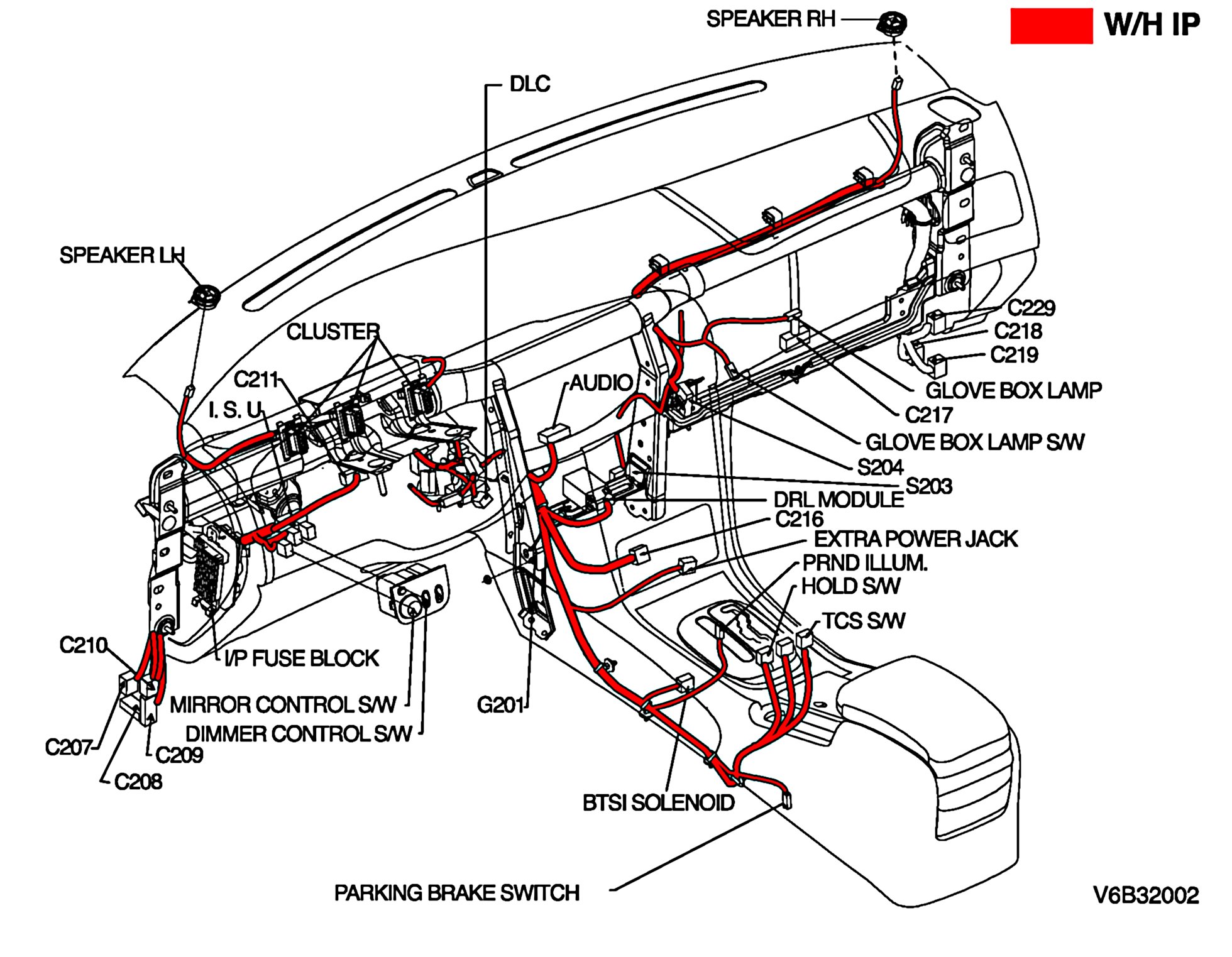

W/H INSTRUMENT PANEL:

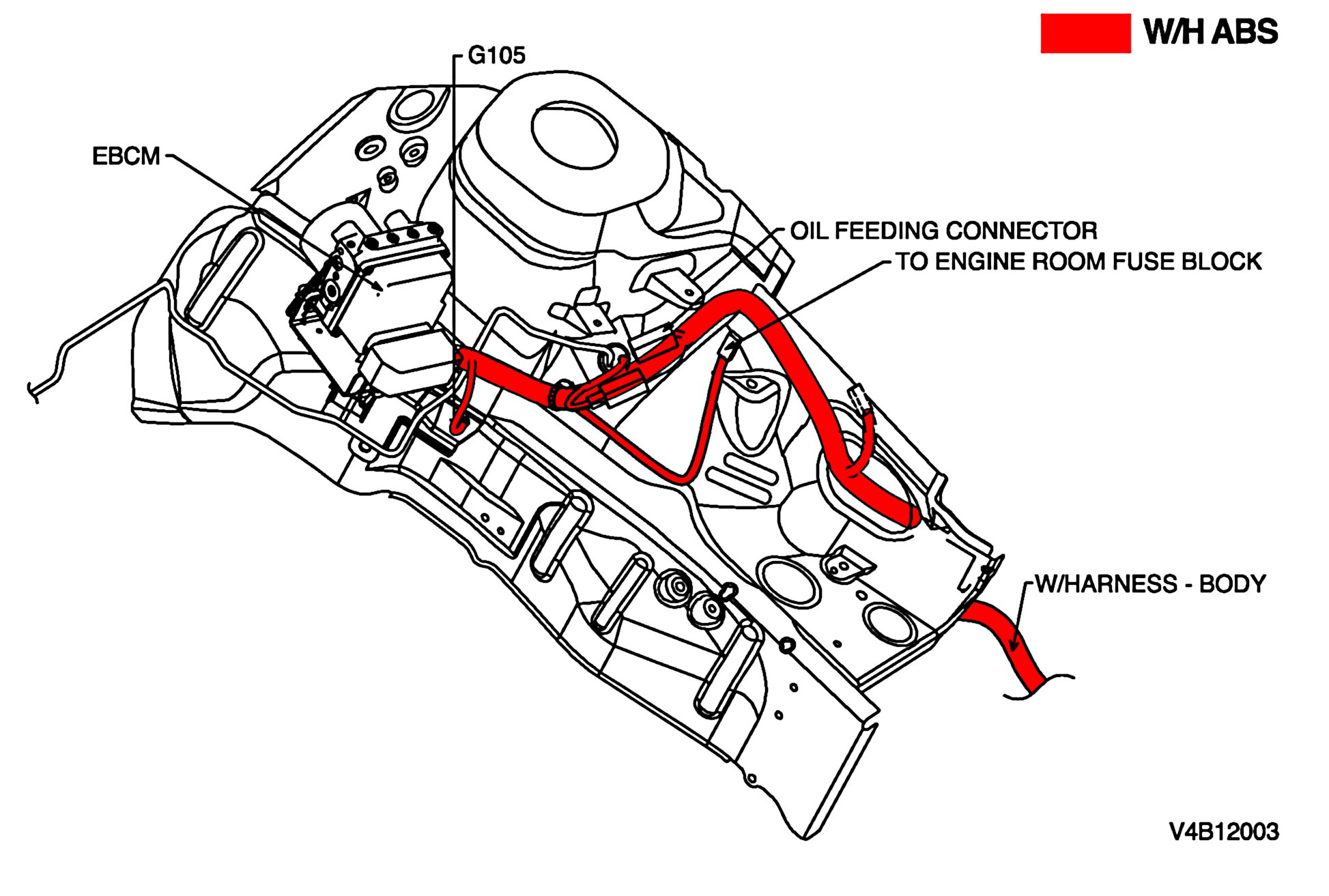

W/H ABS:
POSITION OF CONNECTORS AND GROUNDS
S201 (ORANGE):
SPLICE PACK
