Injector Circuit
Injector Circuit:

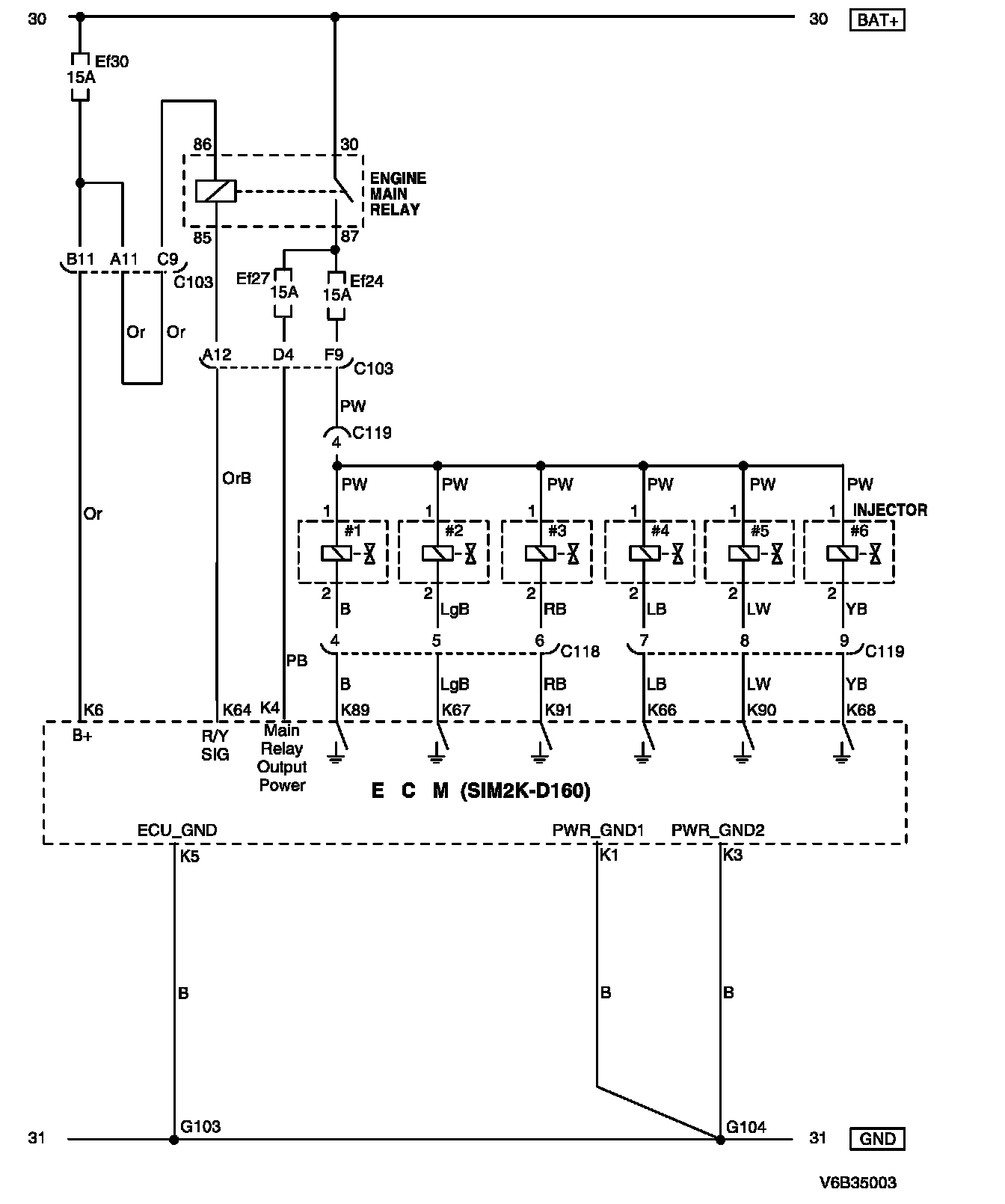

WIRING DIAGRAM
C103 - G104:
CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

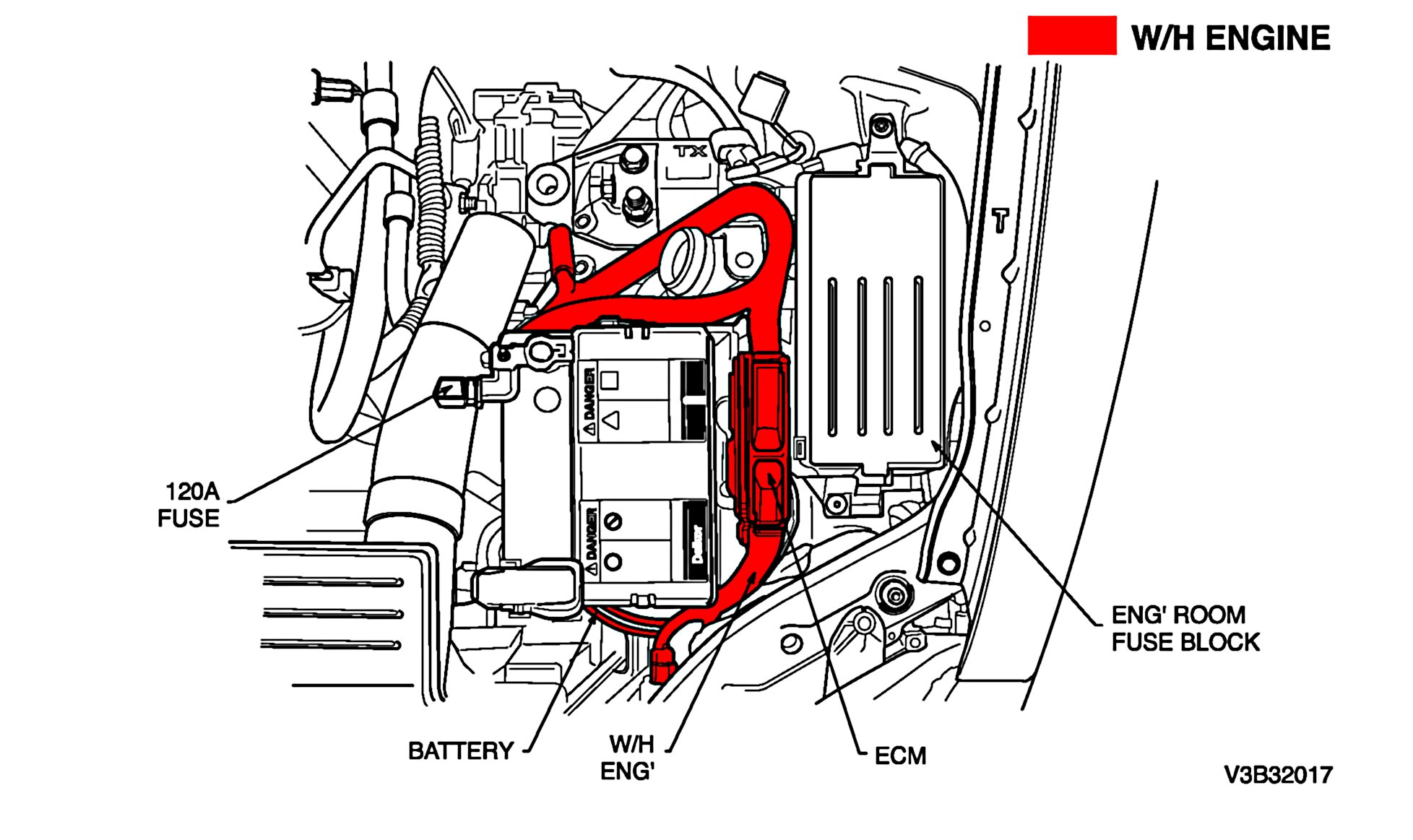

W/H ENGINE:

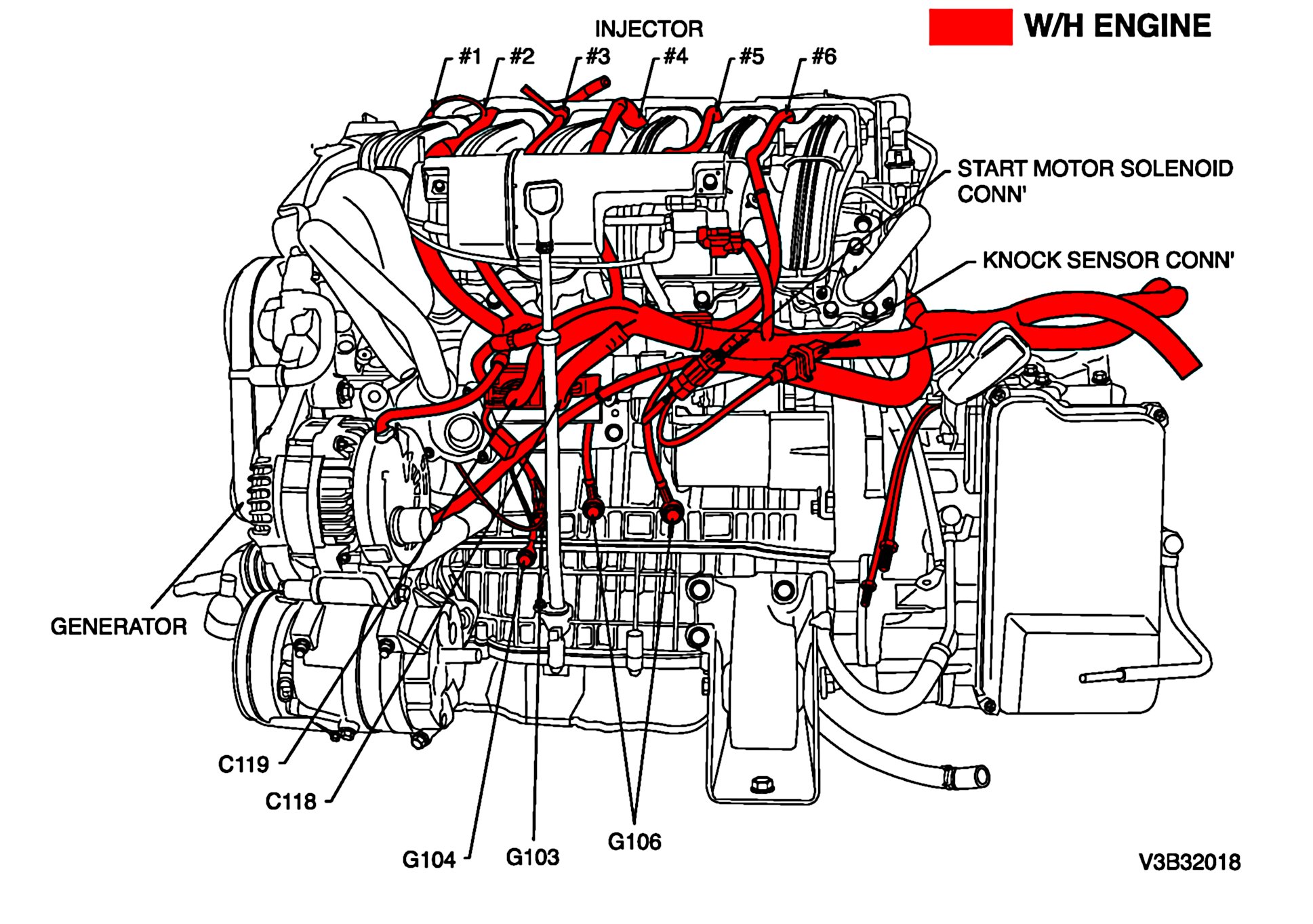

W/H ENGINE:
POSITION OF CONNECTORS AND GROUNDS
