Engine Cranks But Will Not Run

Engine Cranks But Will Not Run

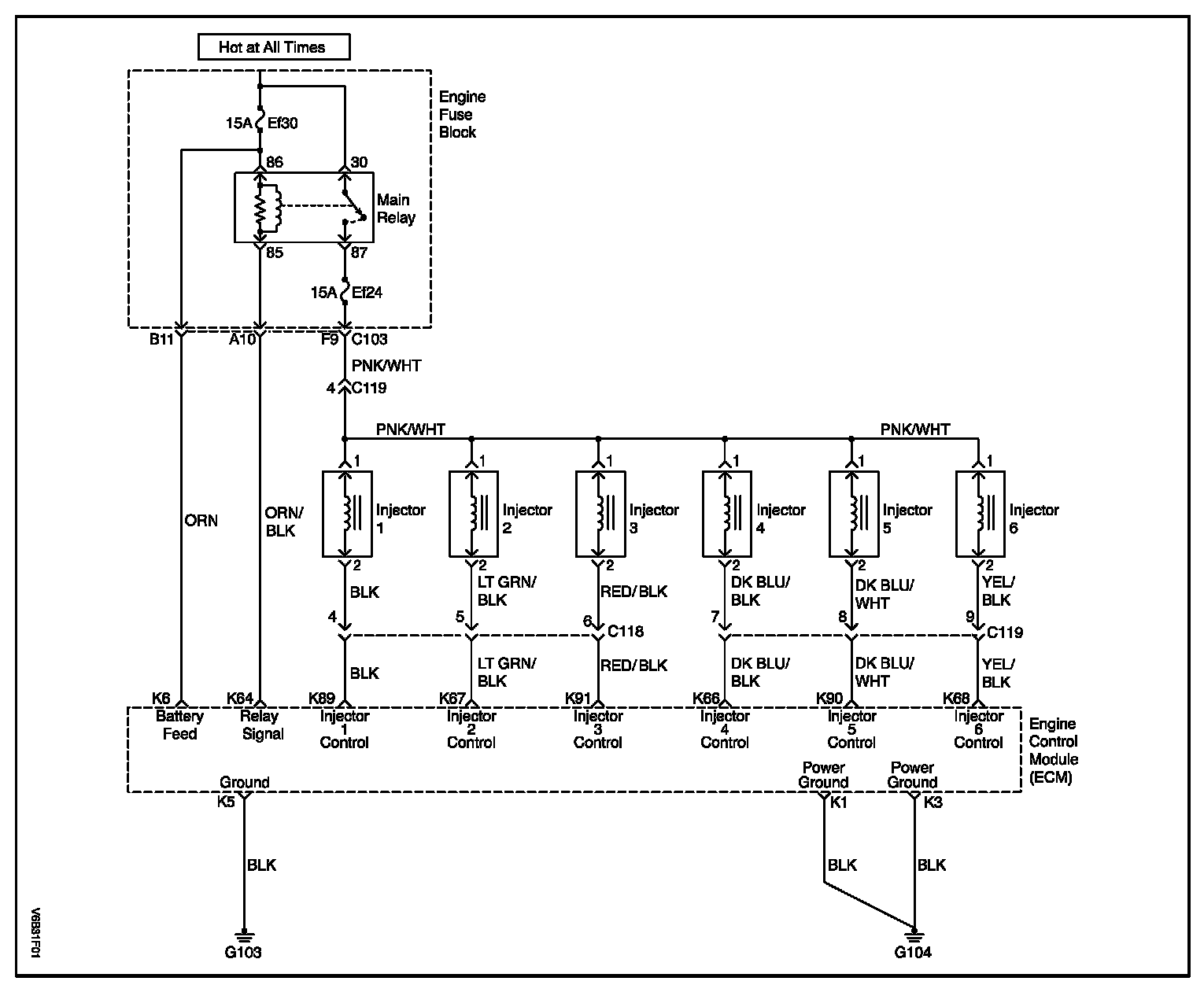

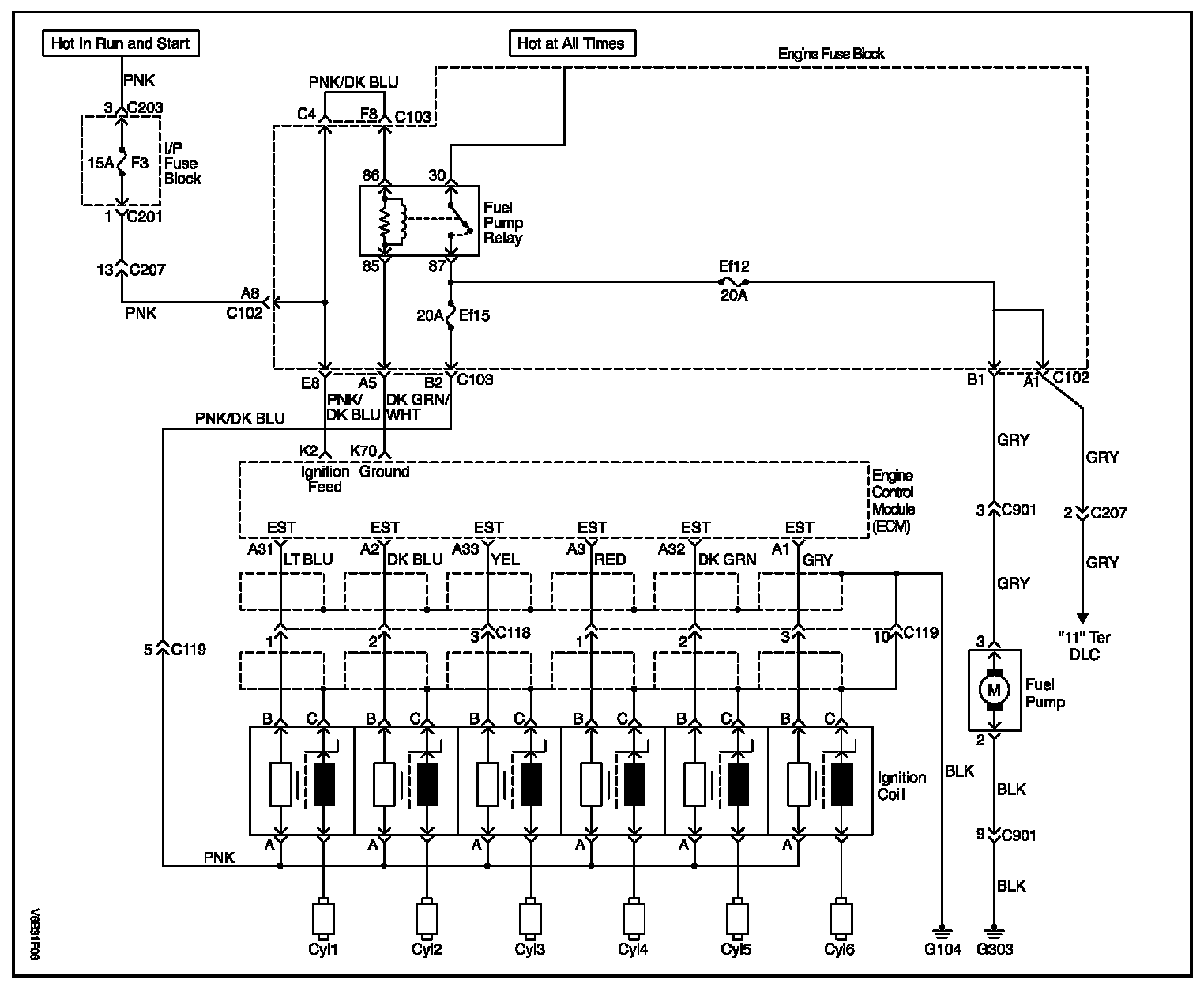

Wiring Diagram:

Wiring Diagram:

Wiring Diagram

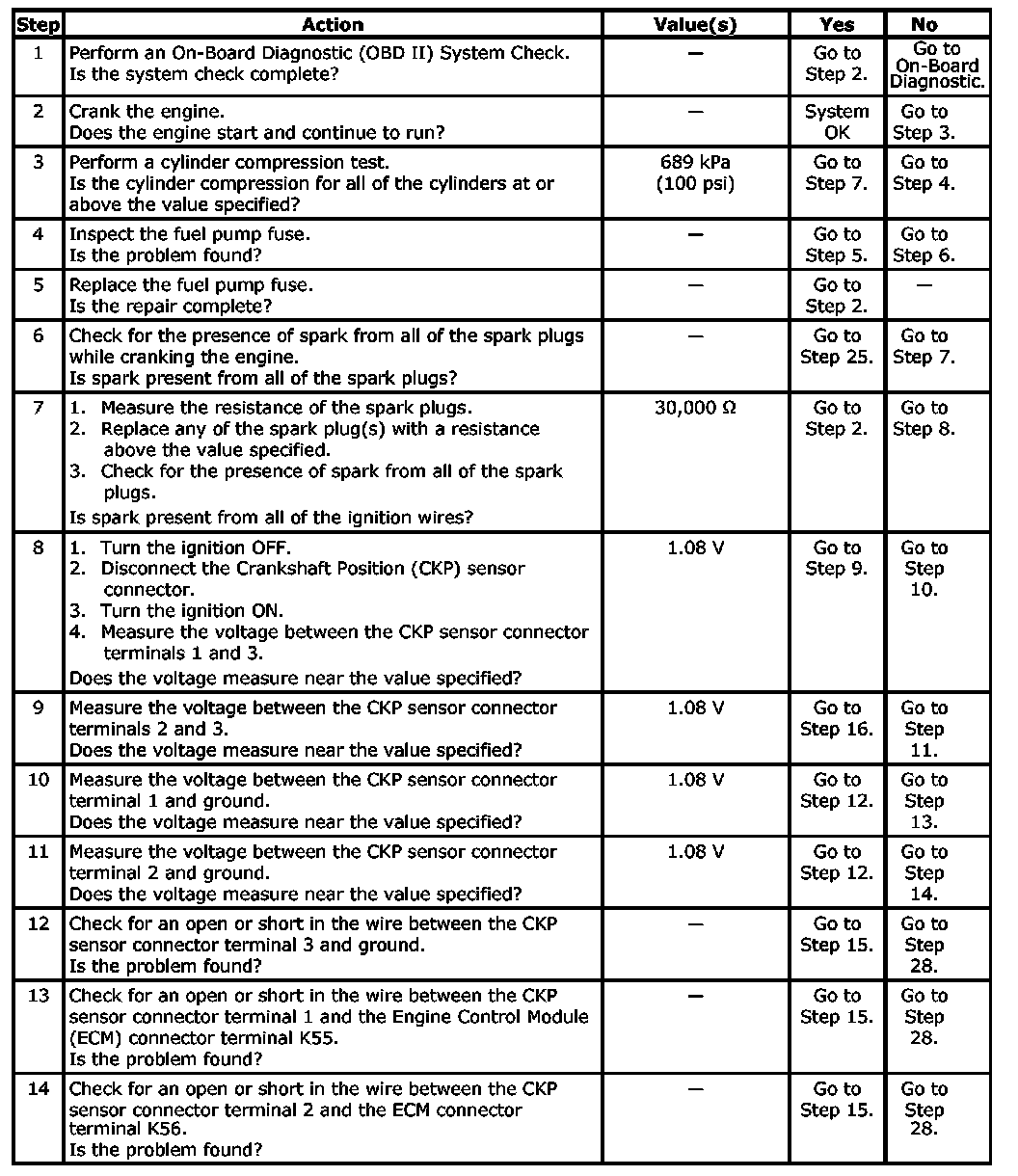

Step 1 - 14:

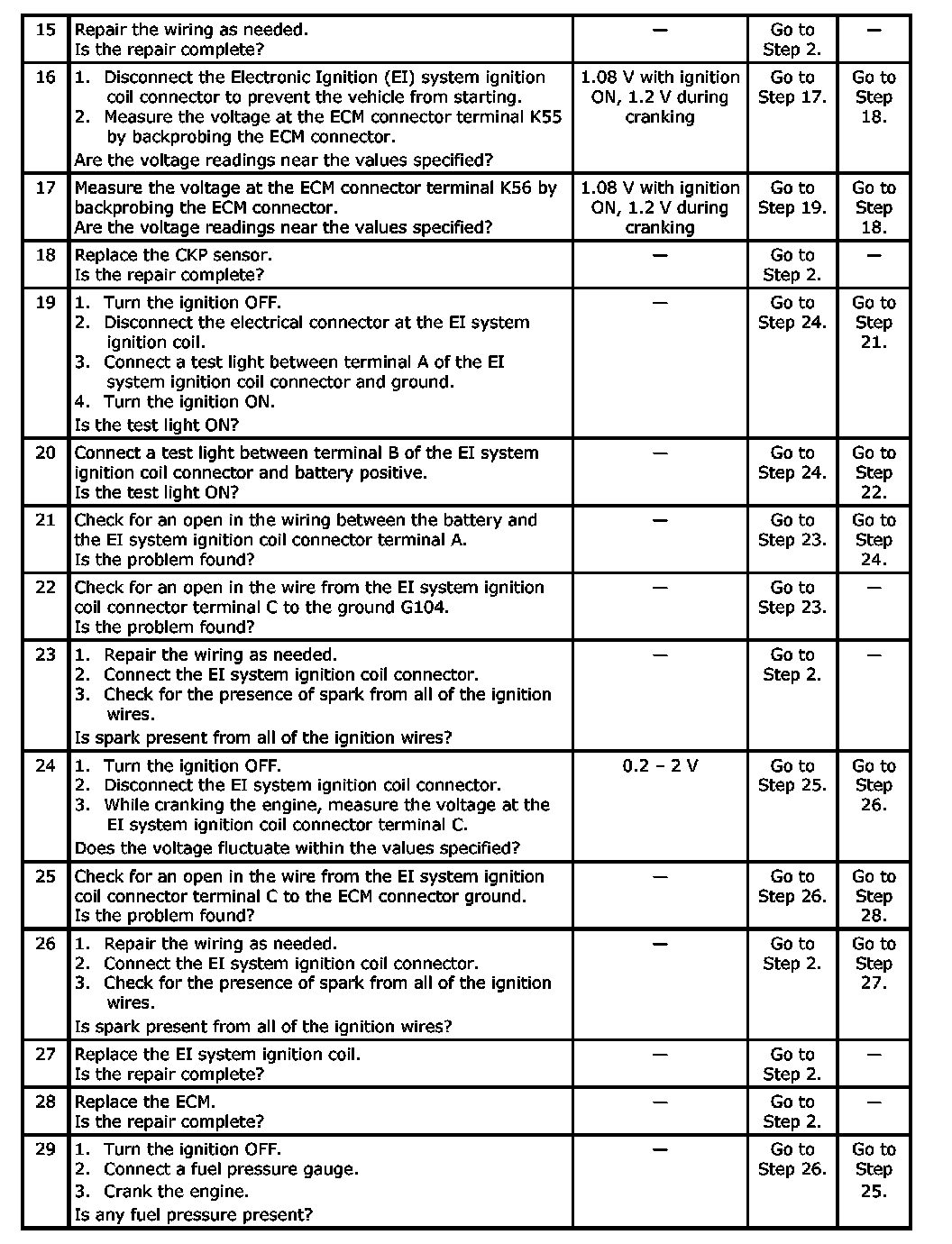

Step 15 - 29:

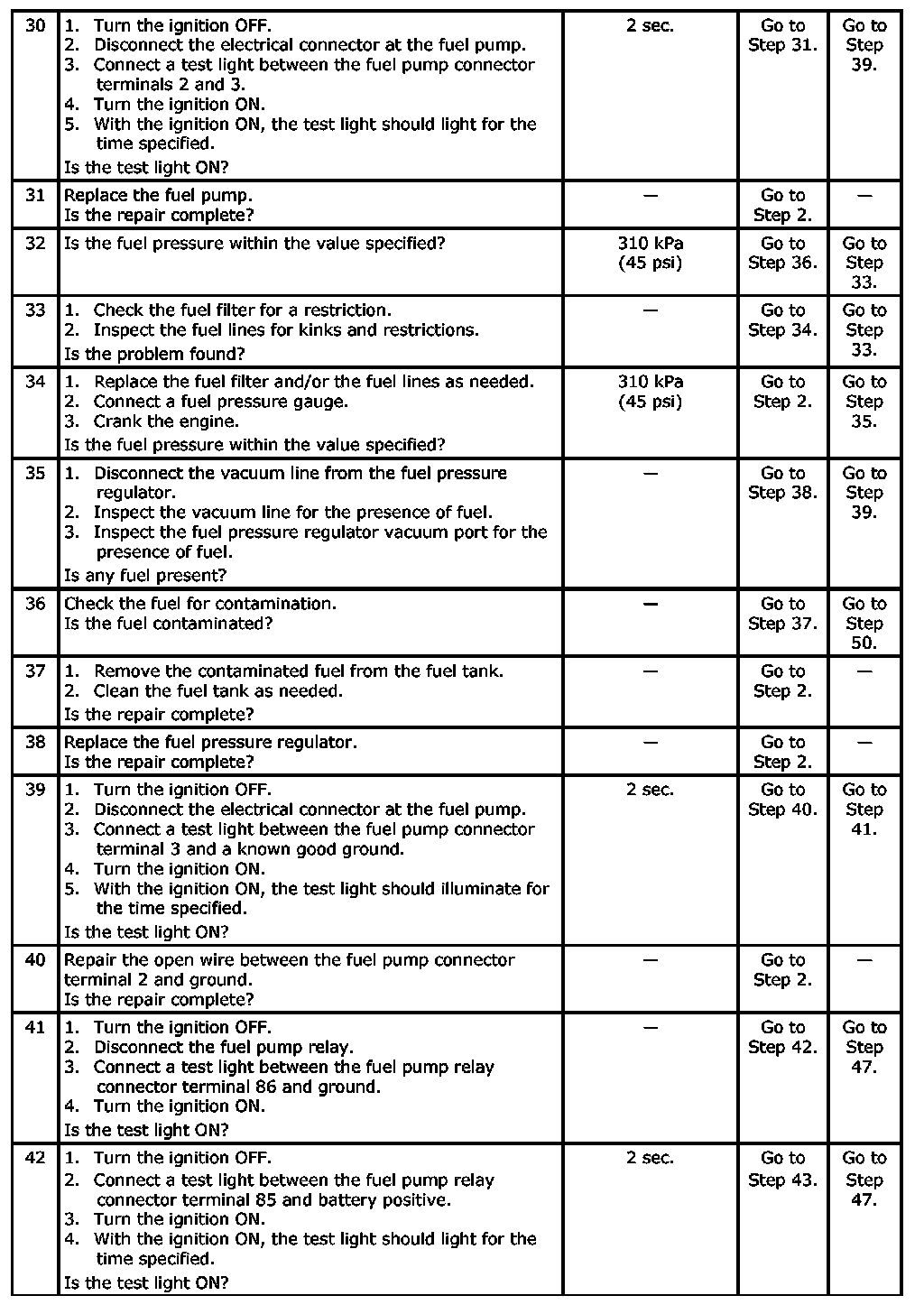

Step 30 - 42:

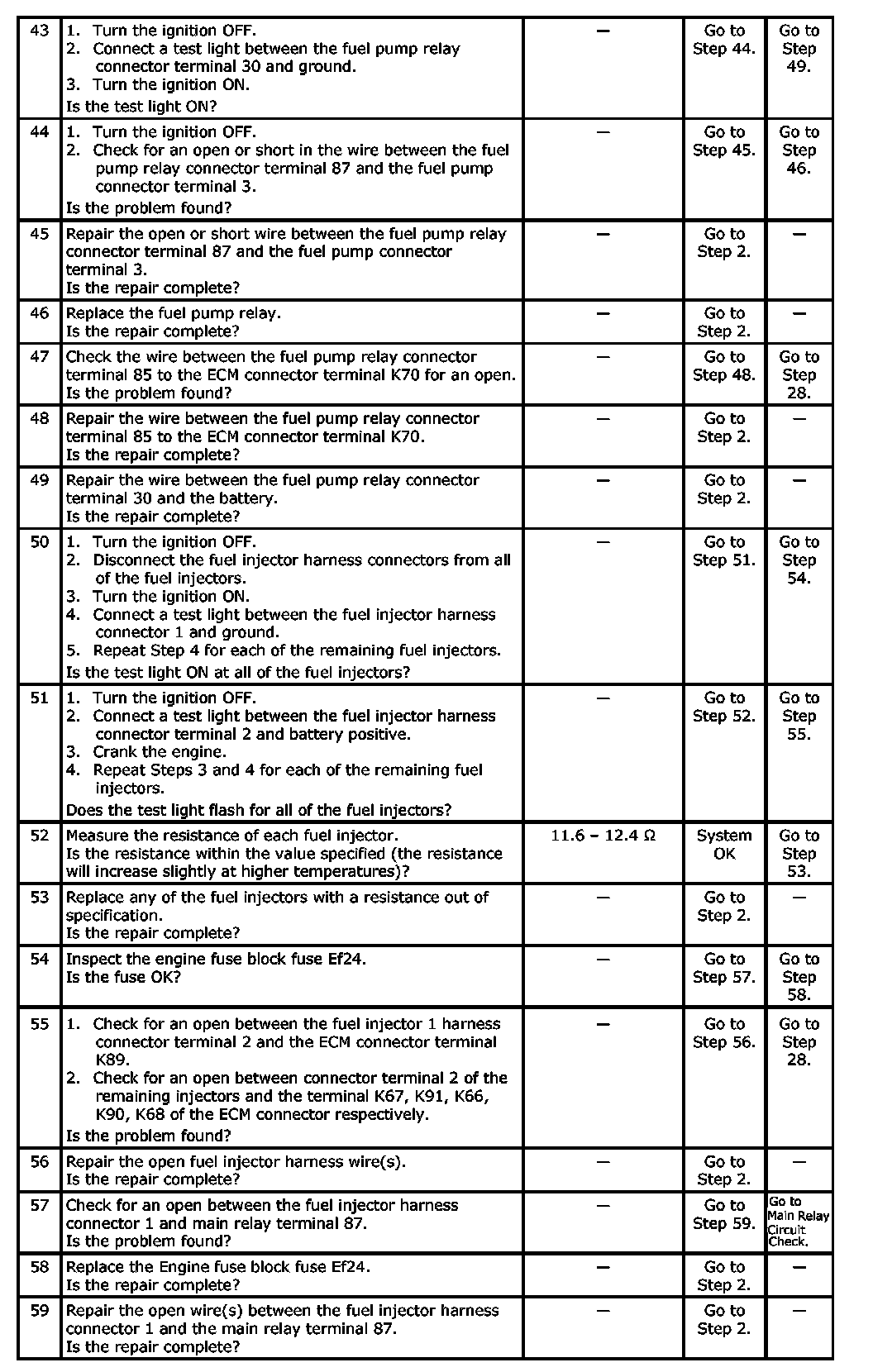

Step 43 - 59:

WARNING: Do not pinch or restrict nylon fuel lines. Damage to the lines could cause a fuel leak, resulting in possible fire or personal injury.

CAUTION: Use only electrically insulated pliers when handling ignition wires with the engine running to prevent an electrical shock.
