How to Read Electric Wiring Diagram

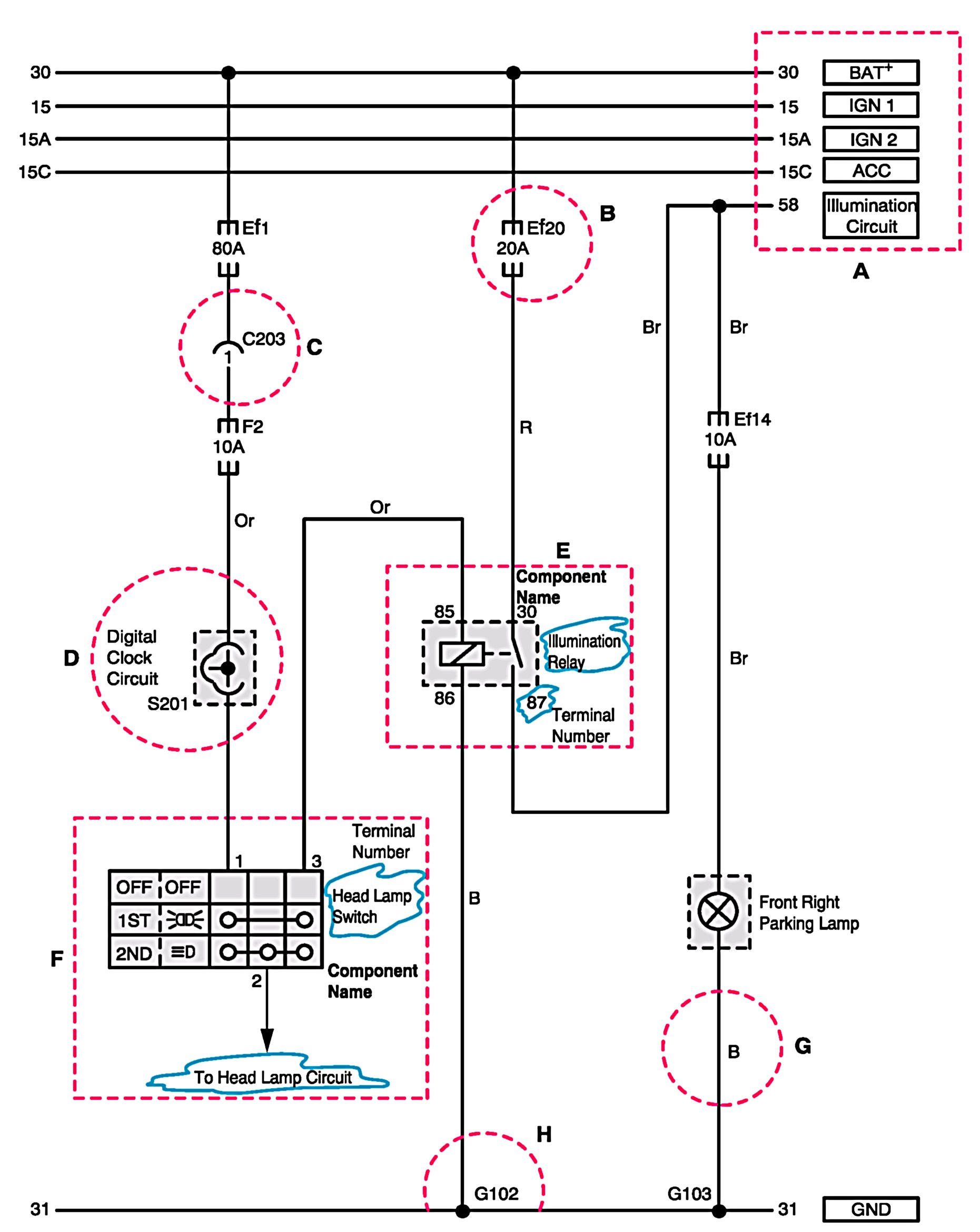

How To Read Electric Wiring Diagram:

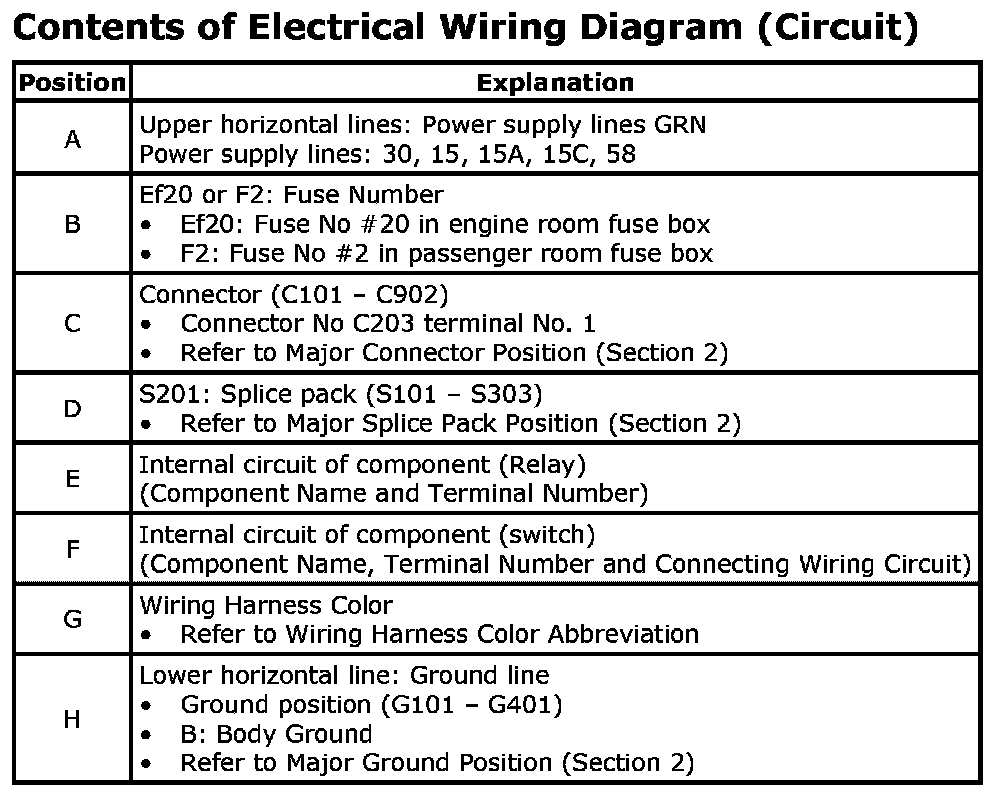

Contents Of Electrical Wiring Diagram (Circuit):




HOW TO READ ELECTRIC WIRING DIAGRAM

Circuit Identification Symbol:




CIRCUIT IDENTIFICATION SYMBOL

Function Of Power Supply Line (Number):




FUNCTION OF POWER SUPPLY LINE (NUMBER)
