Suzuki
>>
2006
>>
Verona L6-2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
I/P Fuse Block
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
I/P Fuse Block

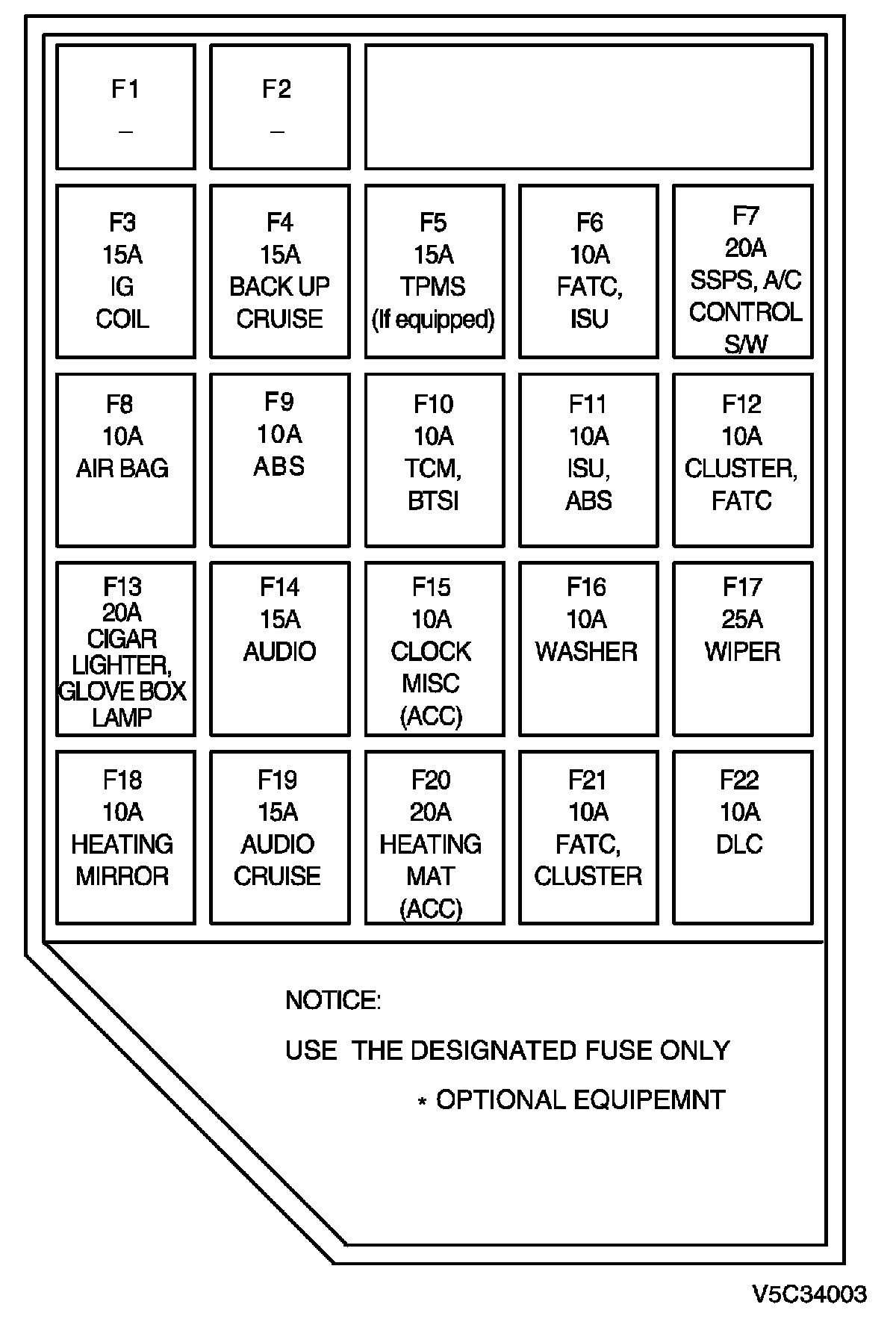

Location View:
POSITION OF
RELAY
AND FUSE

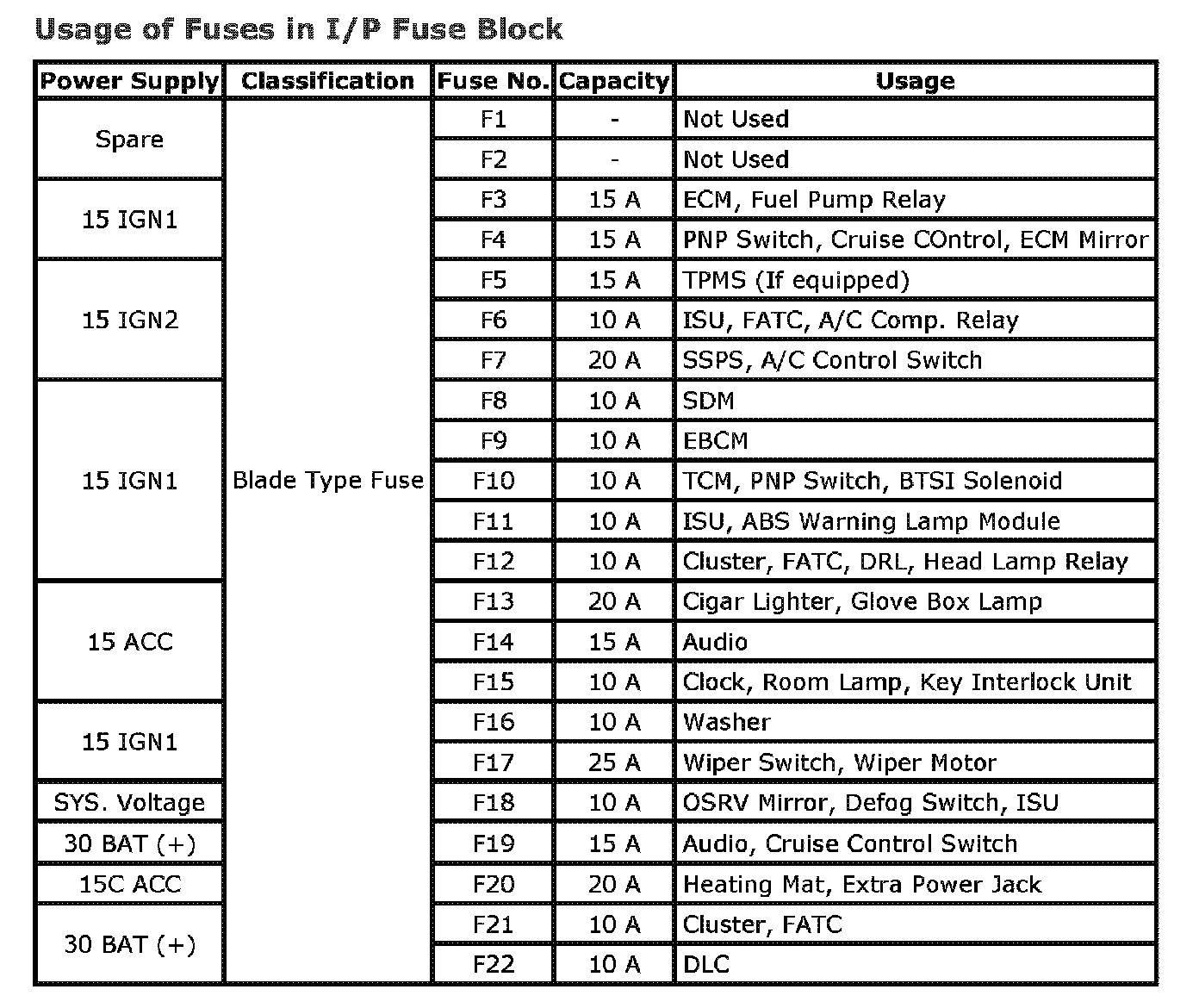

Usage Of Fuse In I/p Fuse Block:
USAGE OF FUSE IN I/P FUSE BLOCK
