System Diagram

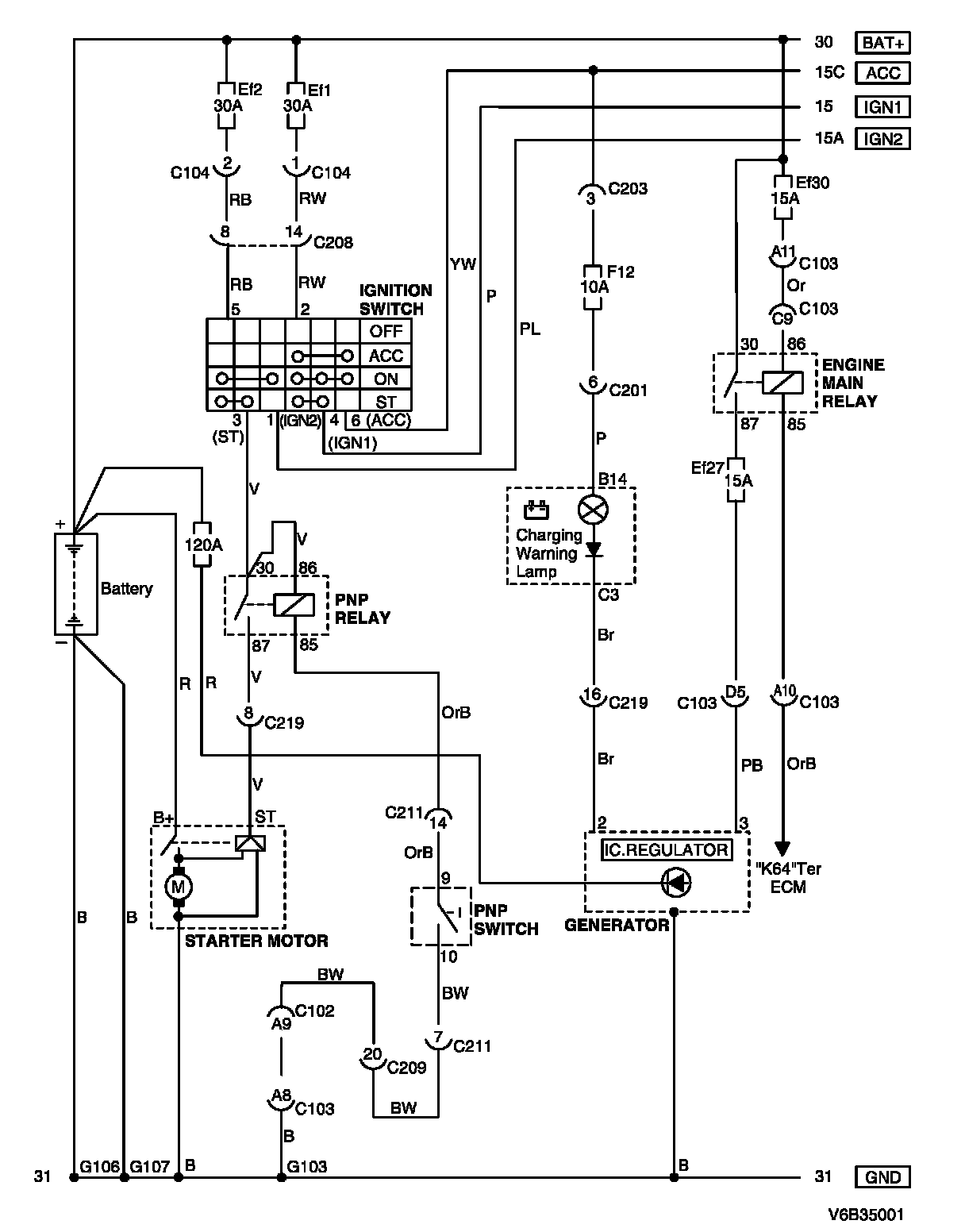

Ignition Switch, Starter Motor, Generator and PNP Switch Circuit Diagram:
WIRING DIAGRAM
C102 - G107:

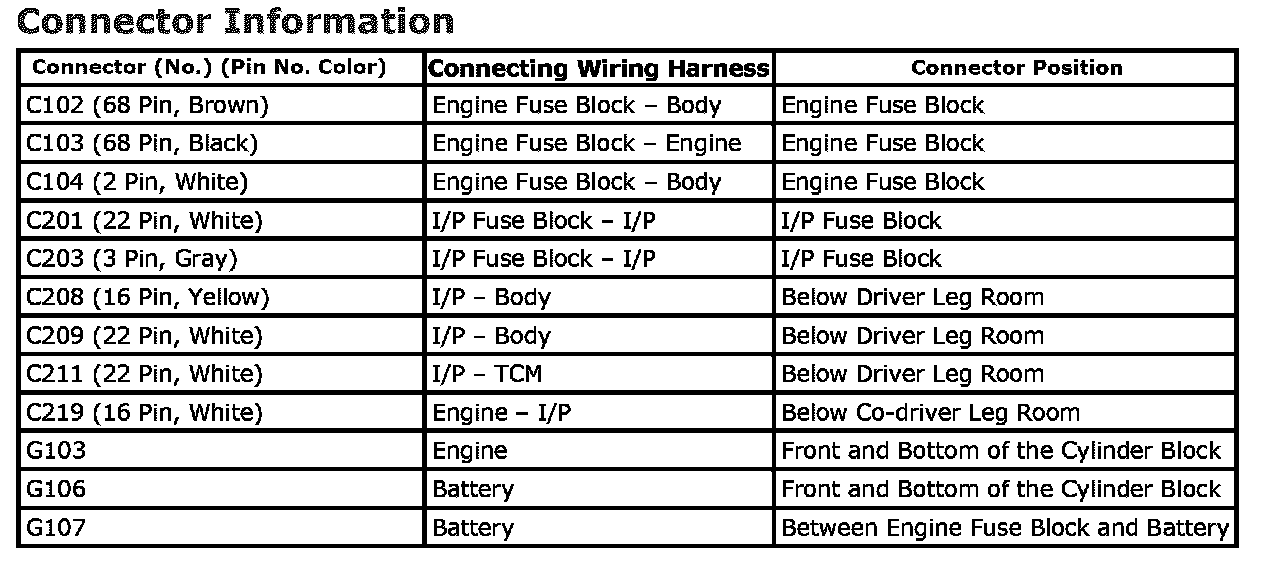

CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

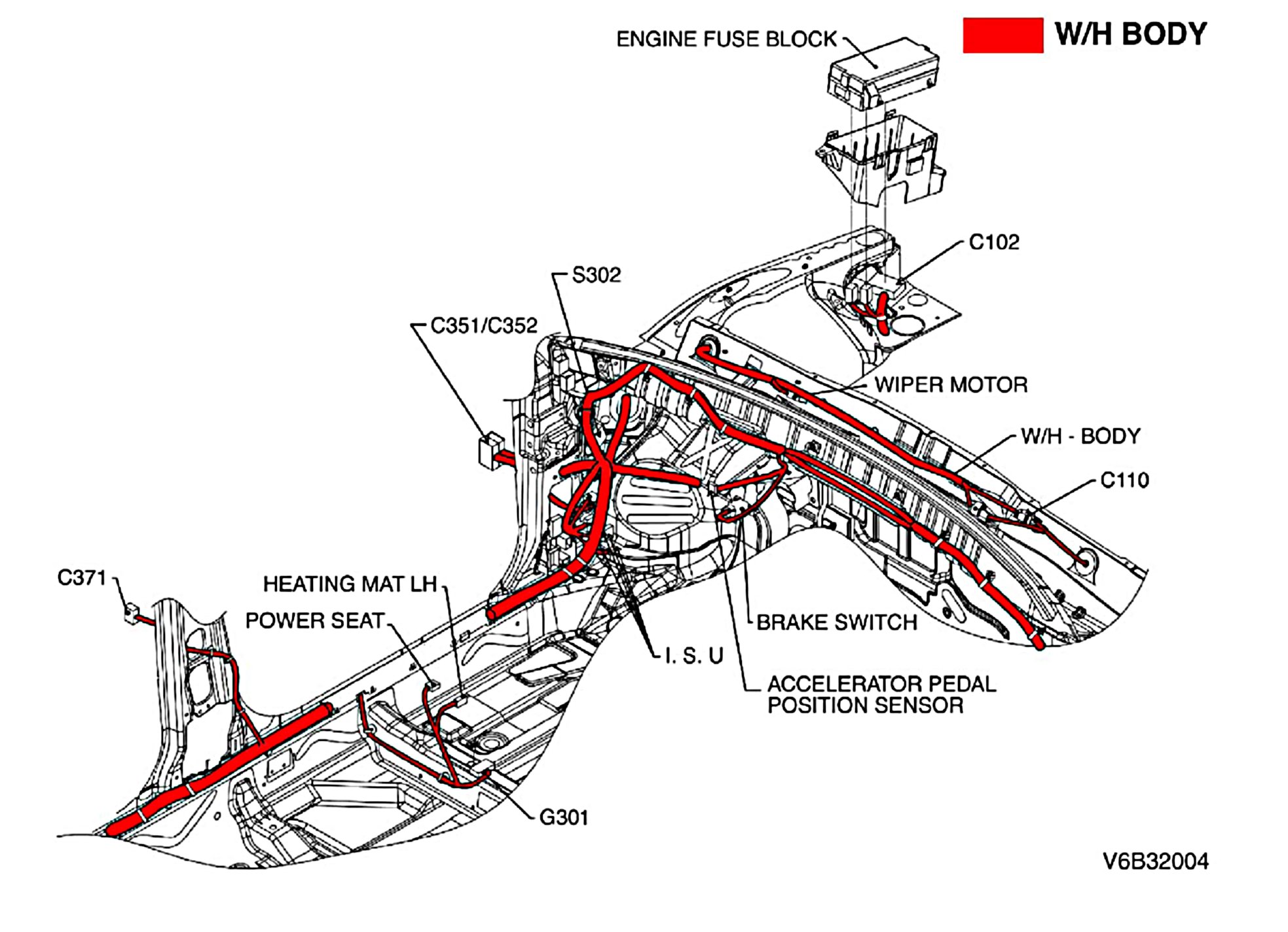

W/H Body:

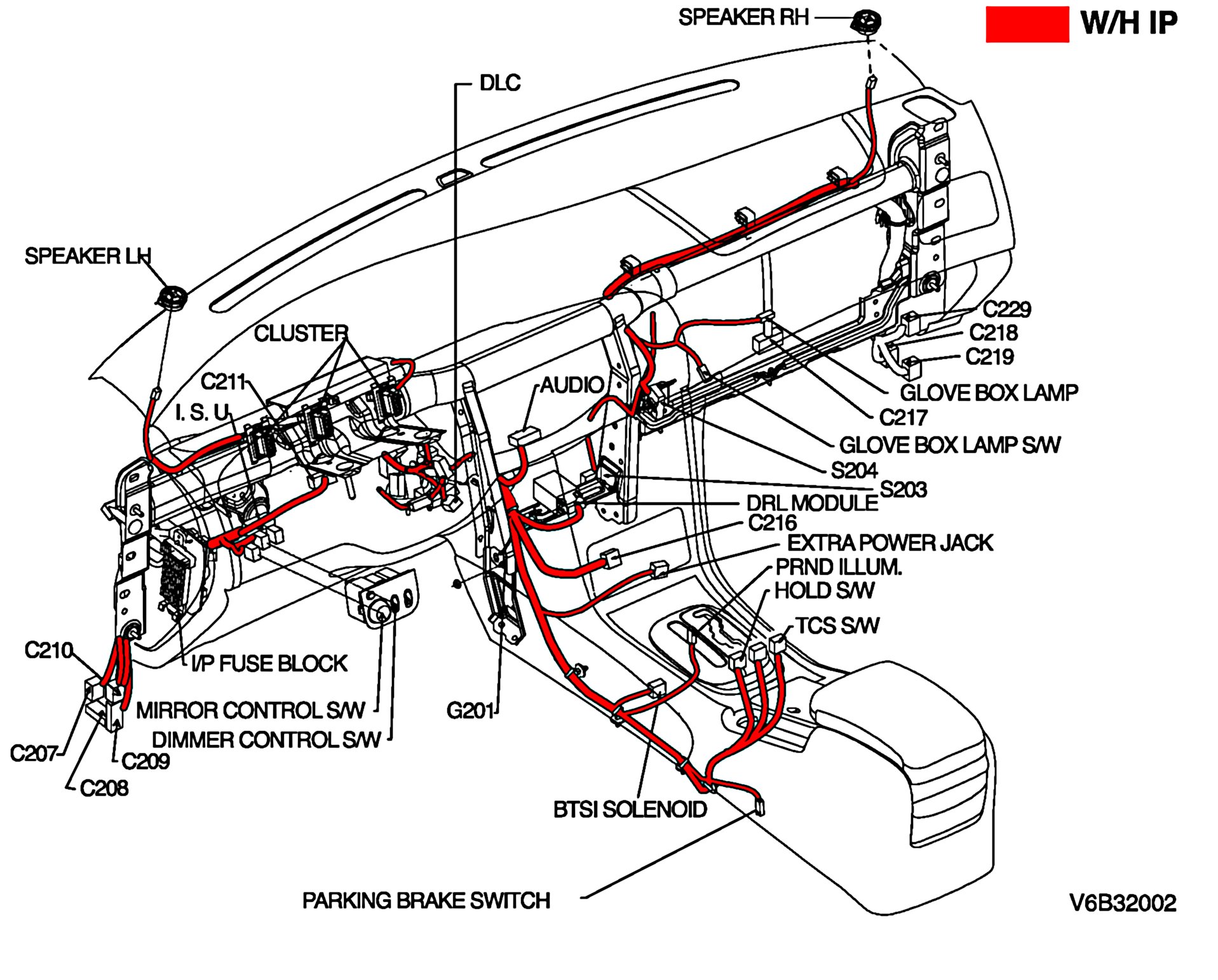

W/H Instrument Panel:
POSITION OF CONNECTORS AND GROUNDS
