Suzuki
>>
2006
>>
Verona L6-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Starting System
>>
Ignition Lock Solenoid
>>
Position of Connectors and Grounds
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

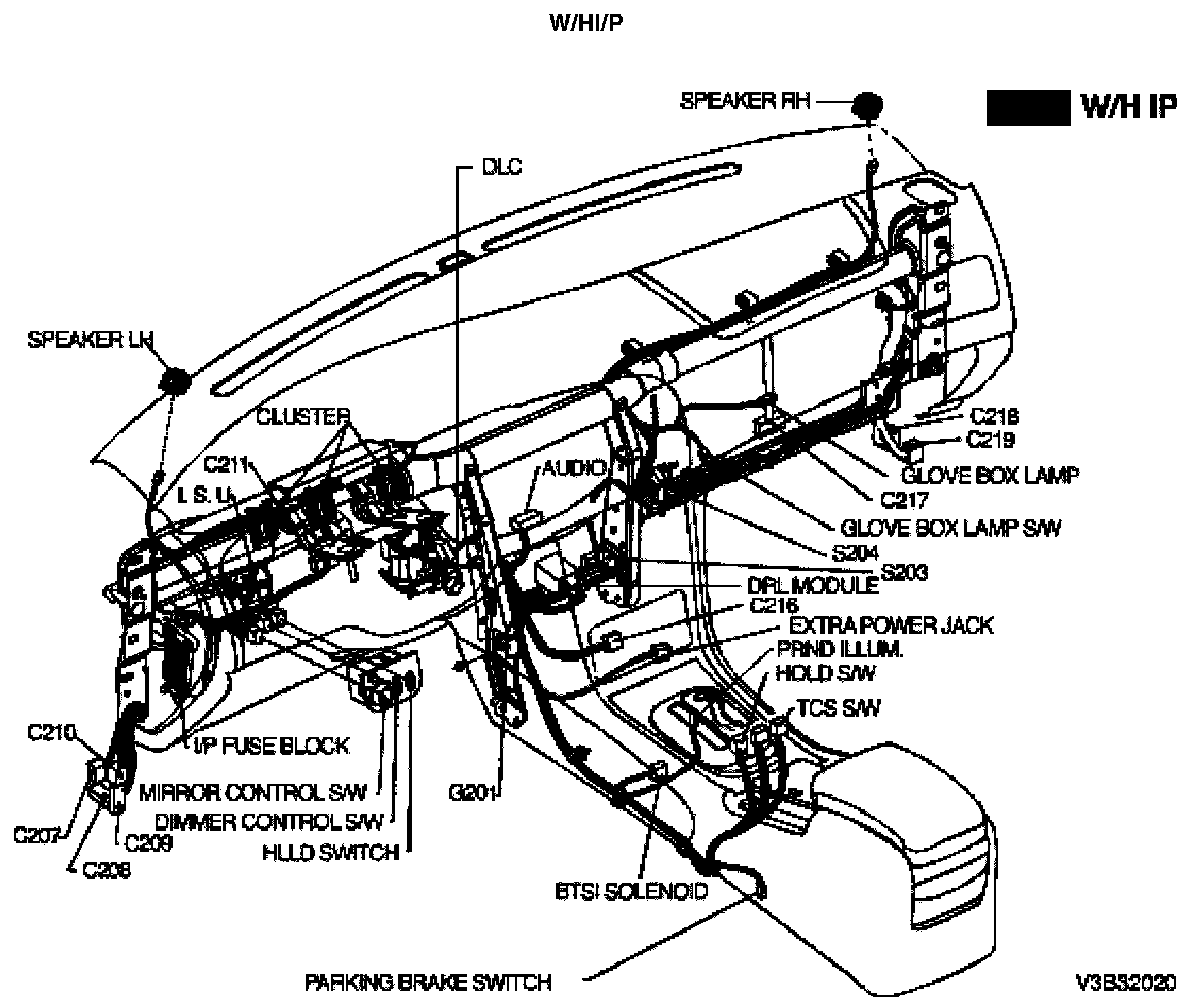

Position of Connectors and Grounds
