MIL Lamp and DLC Circuit
MIL Lamp and DLC Circuit:

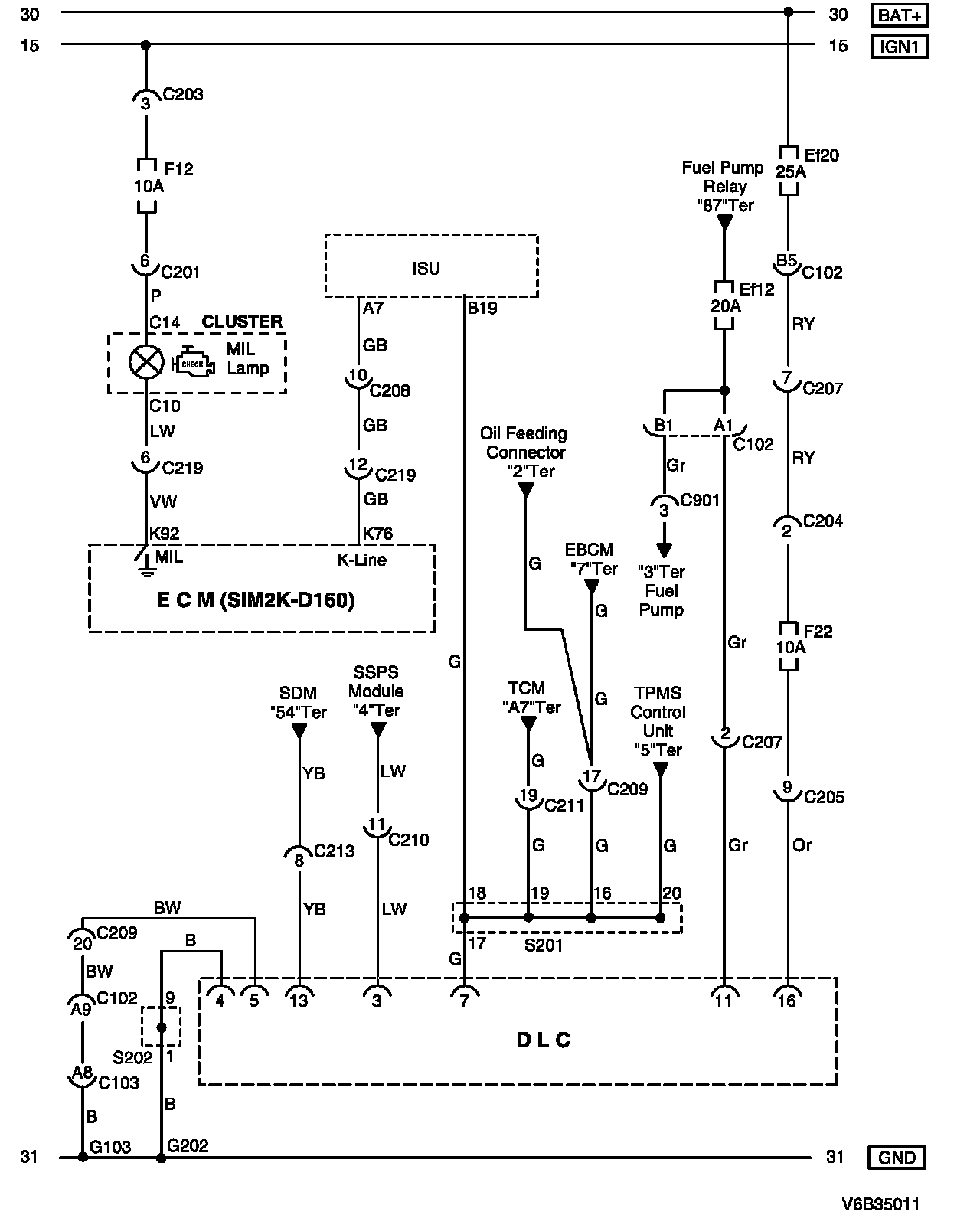

WIRING DIAGRAM
C102 - G202:

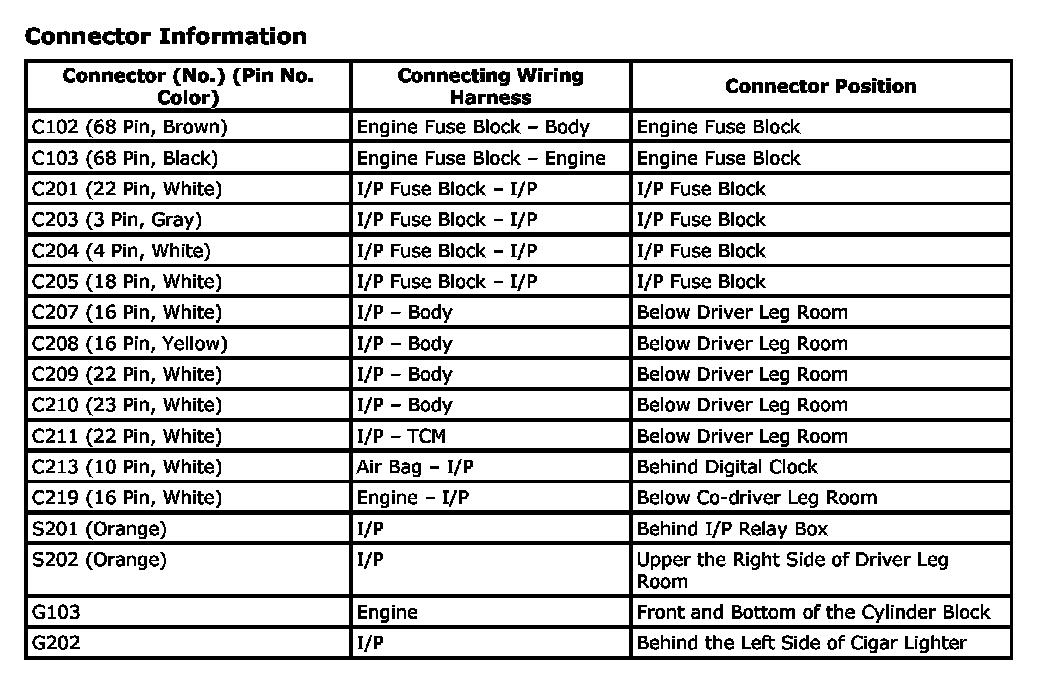

CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:

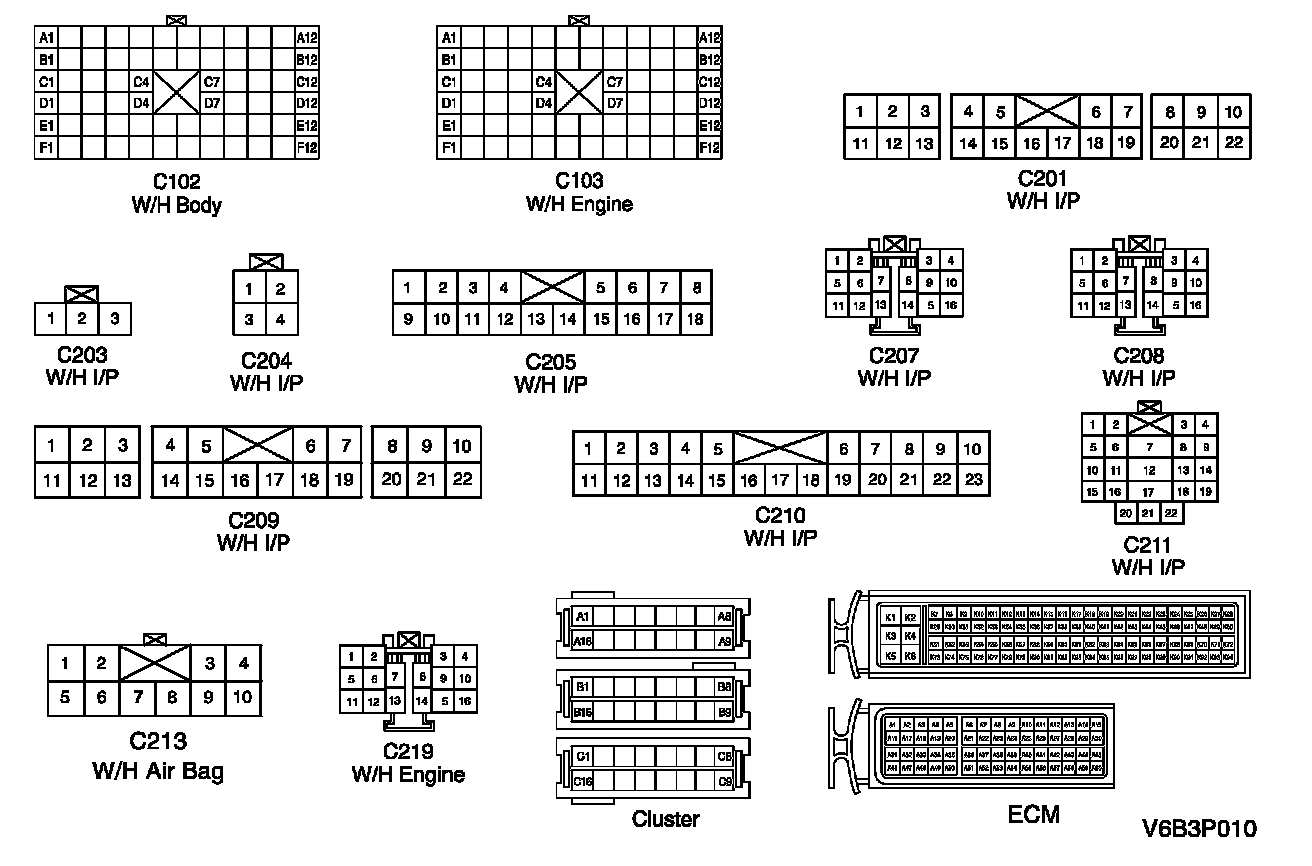

CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
W/H INSTRUMENT PANEL:

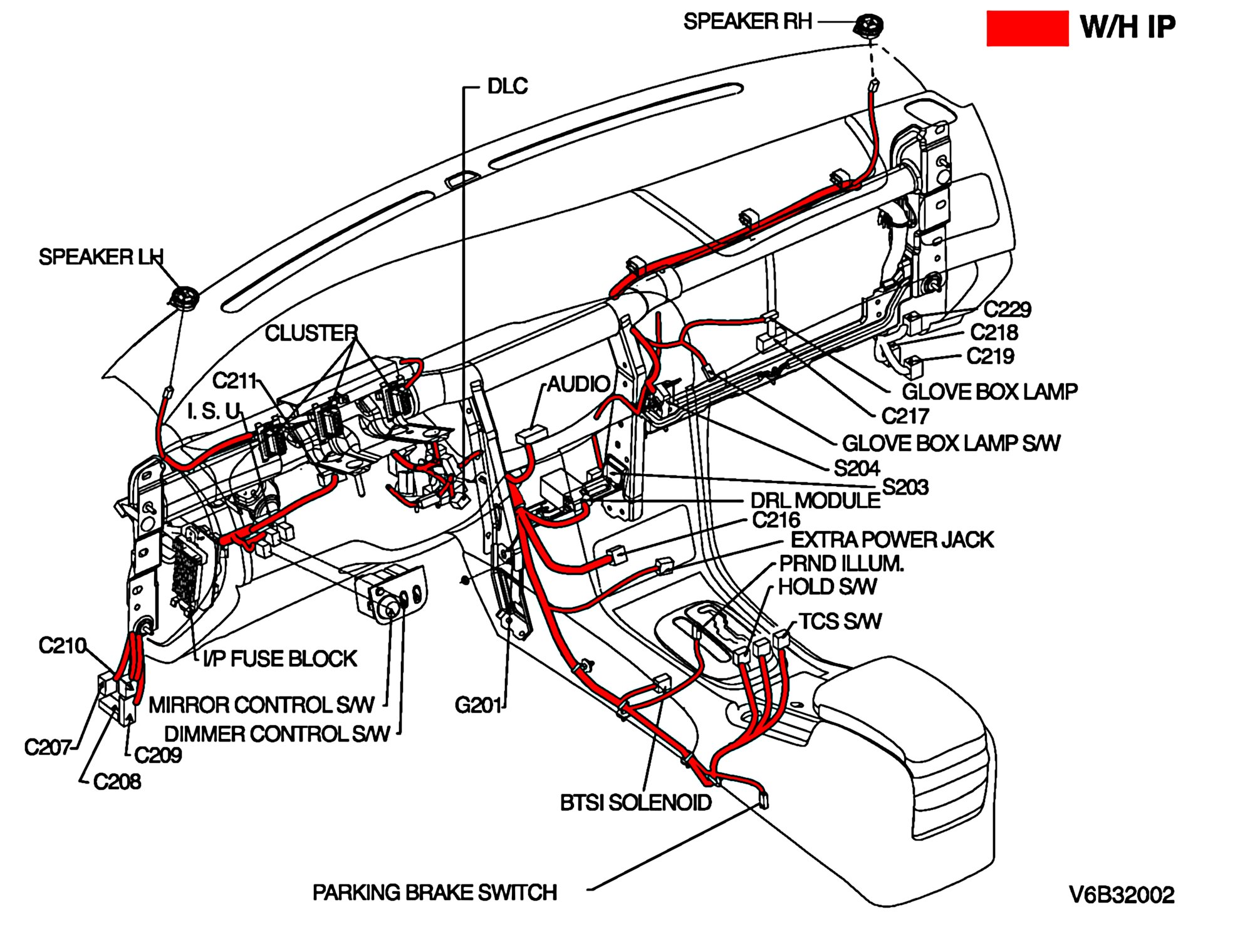

POSITION OF CONNECTORS AND GROUNDS
S201 (ORANGE):
S202 (ORANGE):
SPLICE PACK
