Power Supply, Ground and DLC Circuit
Power Supply, Ground and DLC Circuit:
WIRING DIAGRAM
C102 - G301:

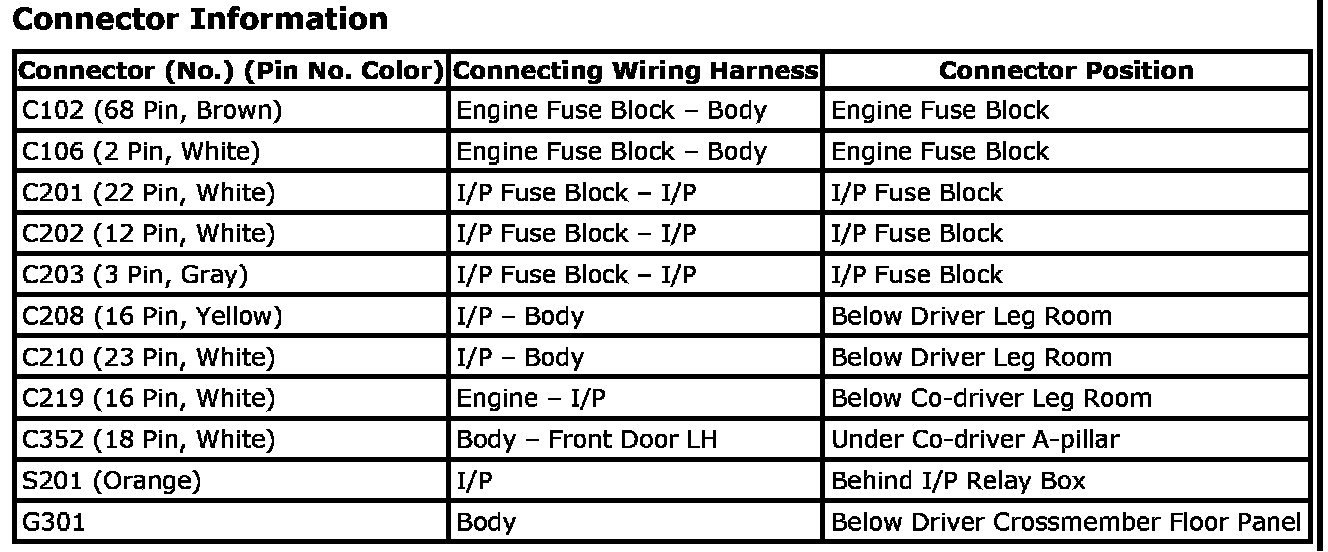

CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
W/H Body:

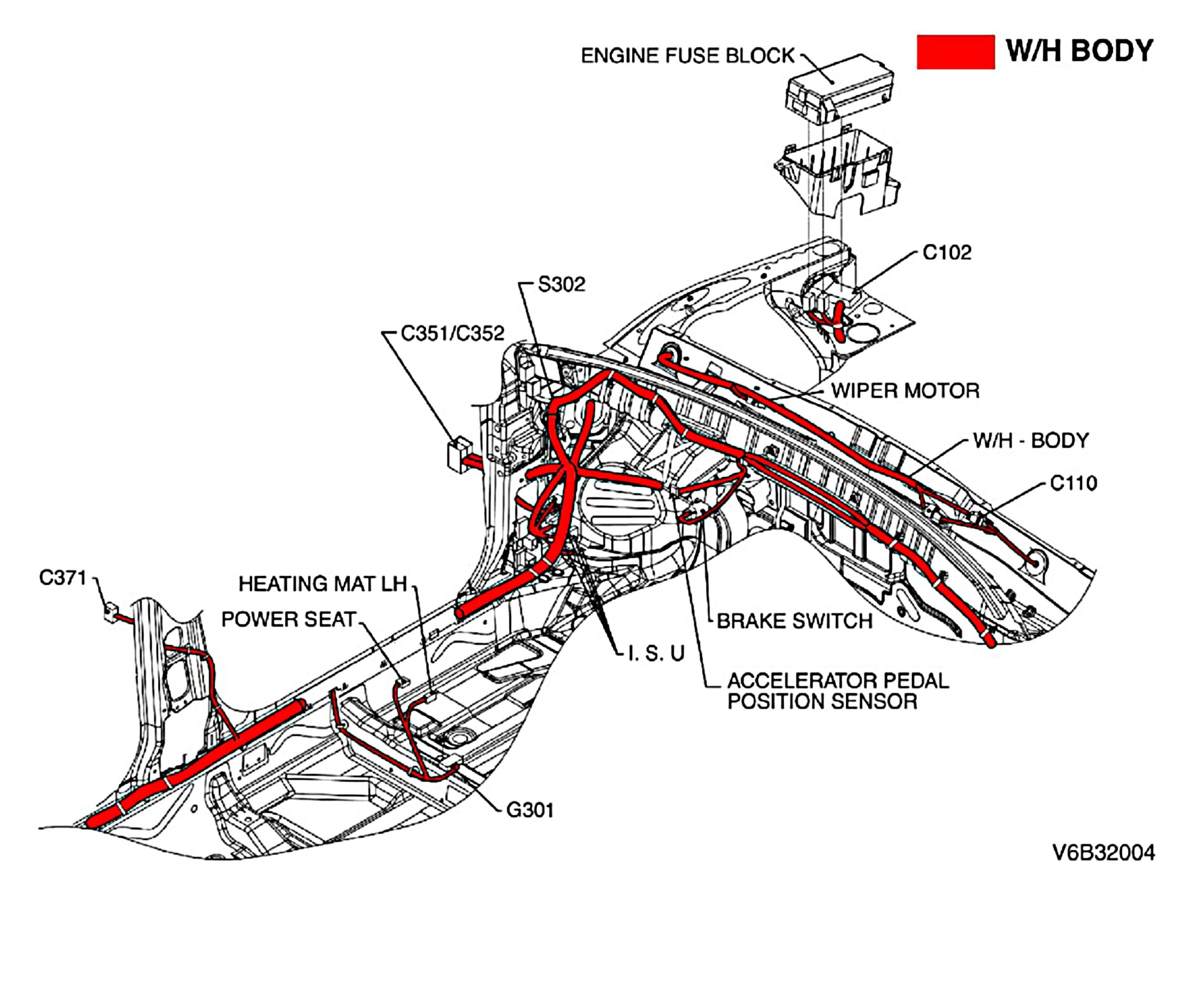

POSITION OF CONNECTORS AND GROUNDS
S201 (ORANGE):
SPLICE PACK
