Door Actuator and Central Door Lock Unit Circuit
Door Actuator and Central Door Lock Unit Circuit:

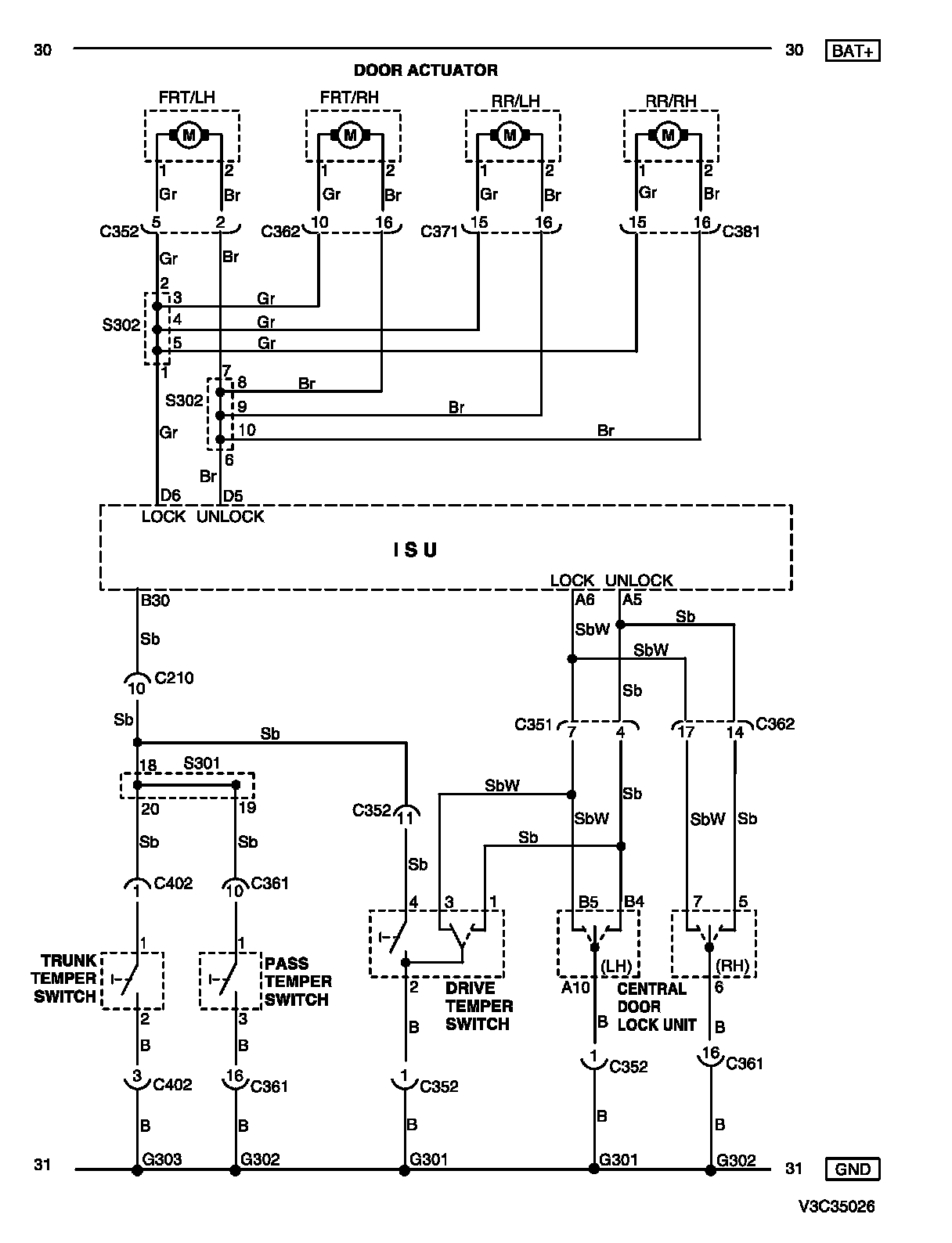

WIRING DIAGRAM
C210 - G303:

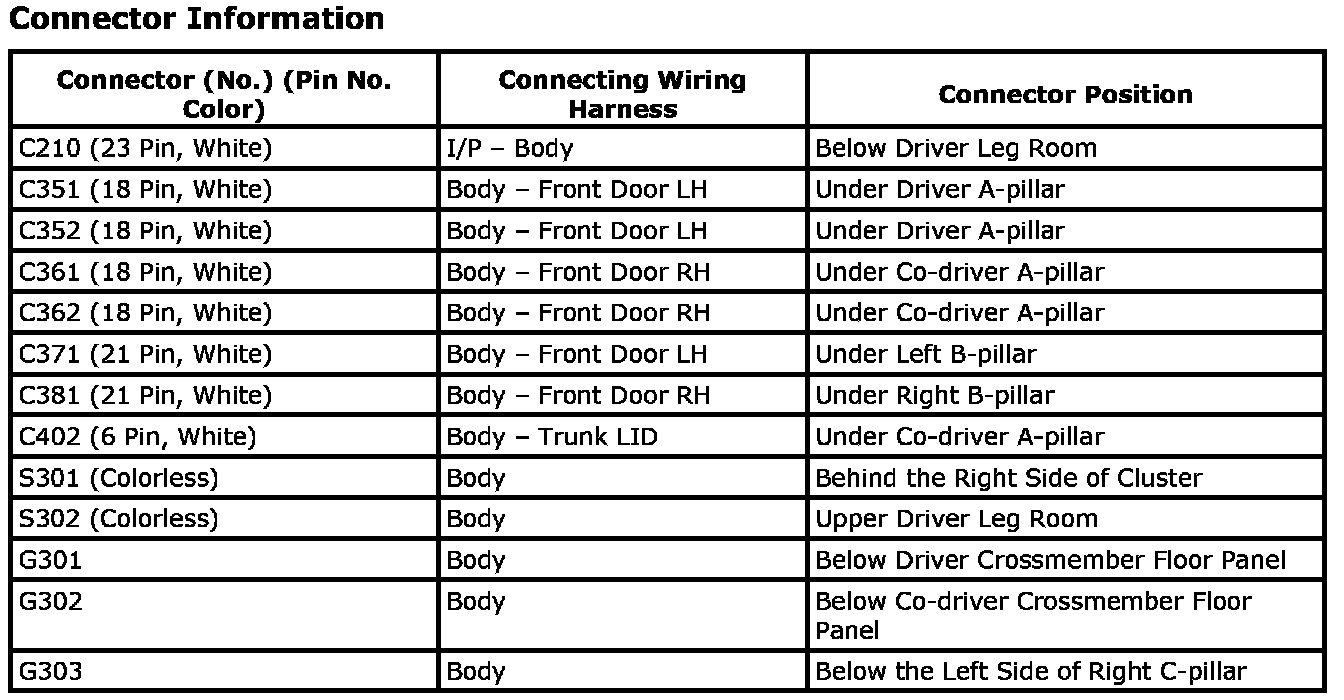

CONNECTOR INFORMATION

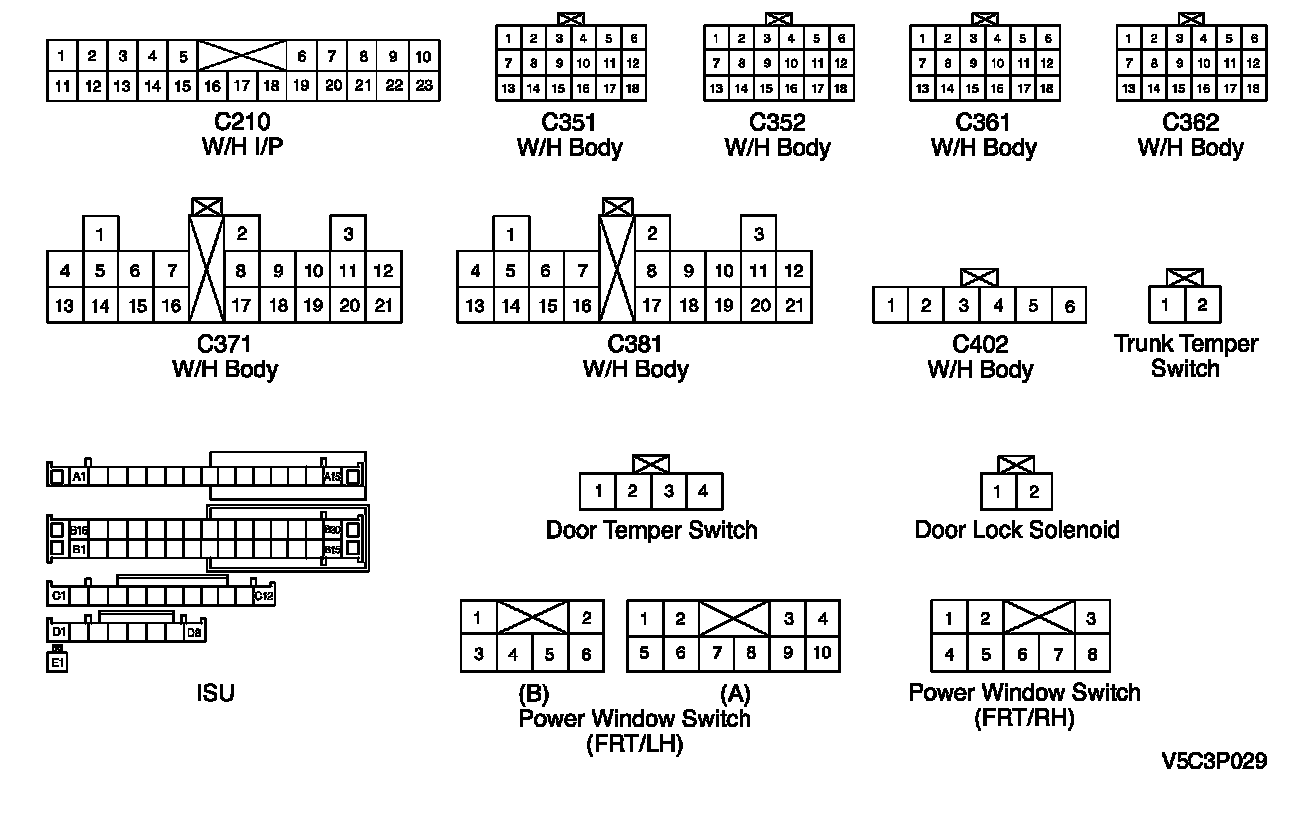

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

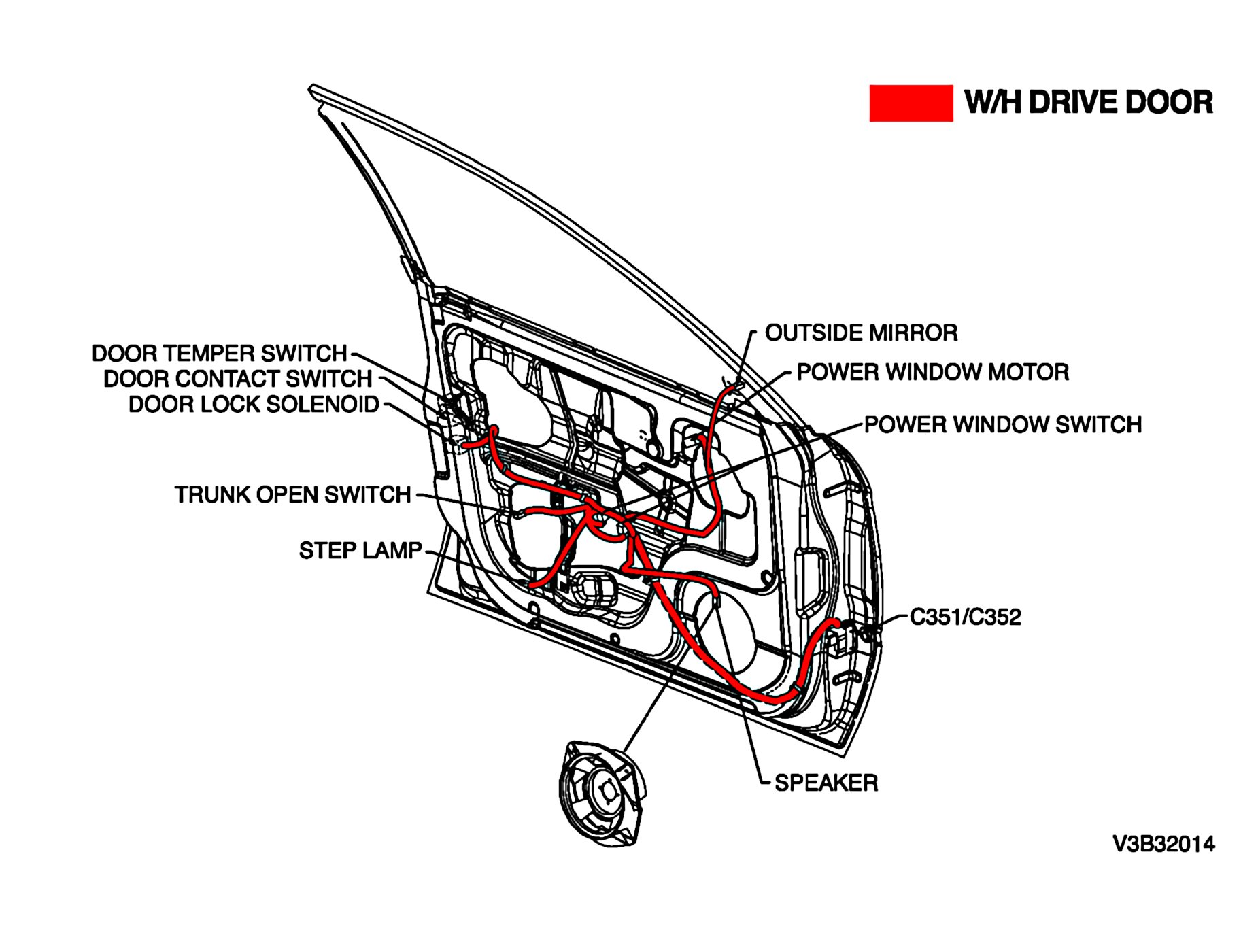

W/H DRIVER DOOR:

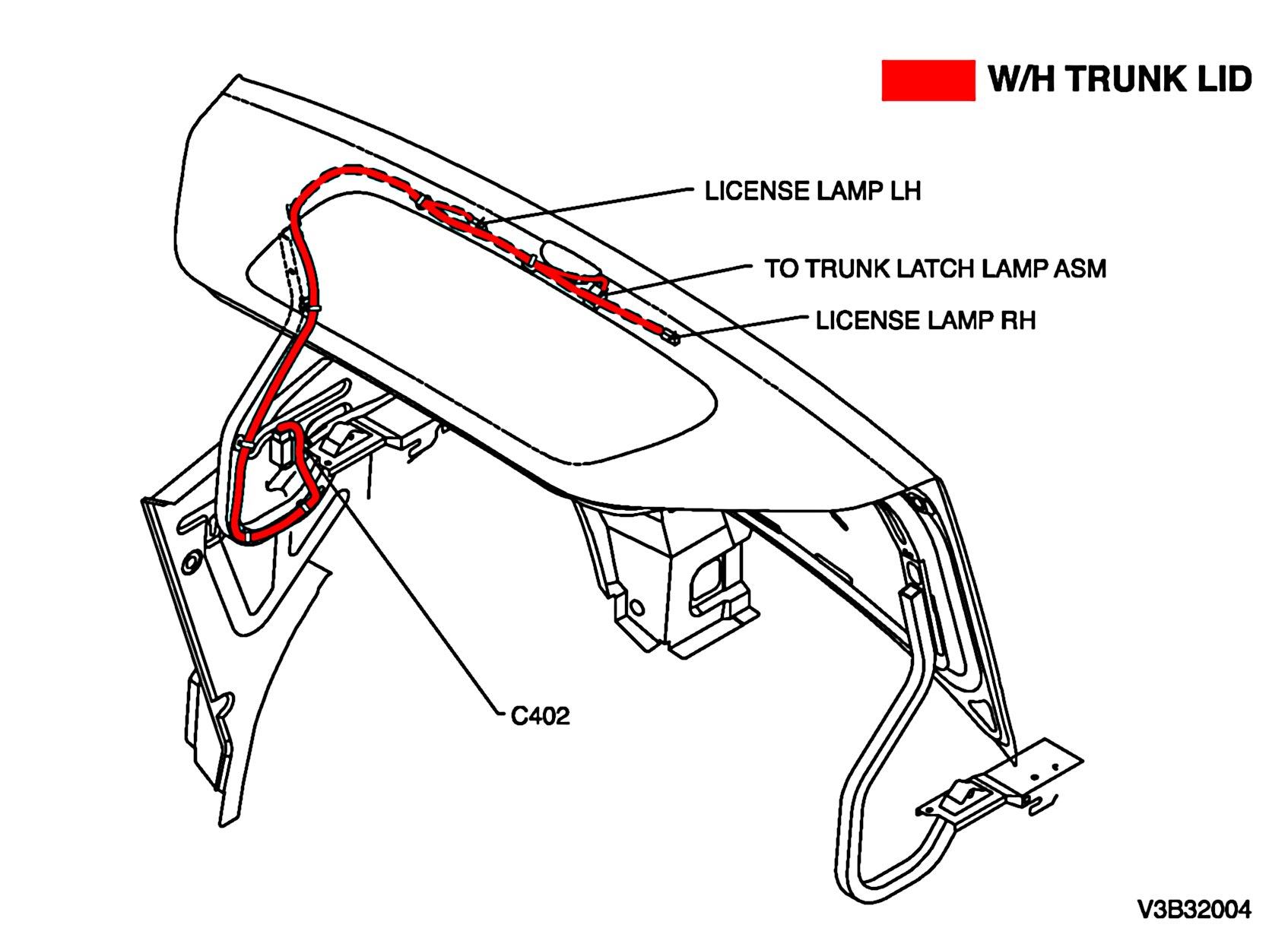

W/H TRUNK LID:
POSITION OF CONNECTORS AND GROUNDS
S301 (COLORLESS):
S302 (COLORLESS):
SPLICE PACK
