Without Back Up Lamp In Rear Combination Lamp

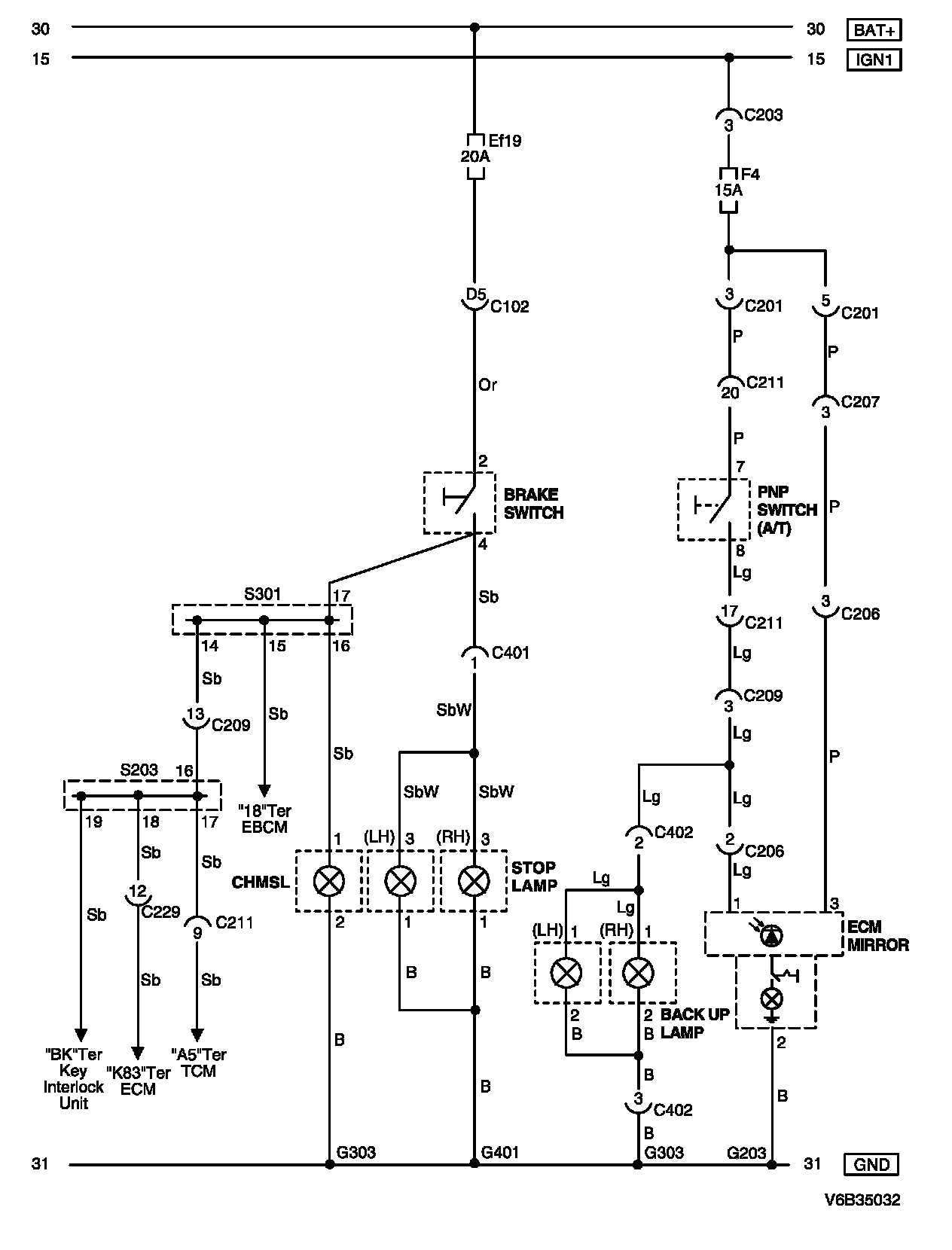

Without Back Up Lamp In Rear Combination Lamp Circuit Diagram:
WIRING DIAGRAM
C102 - G401:

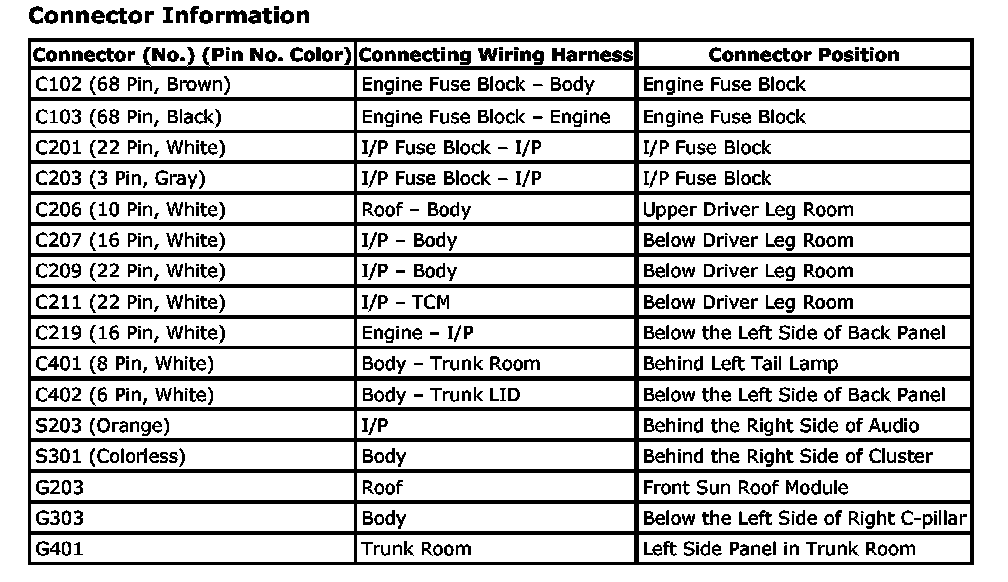

CONNECTOR INFORMATION

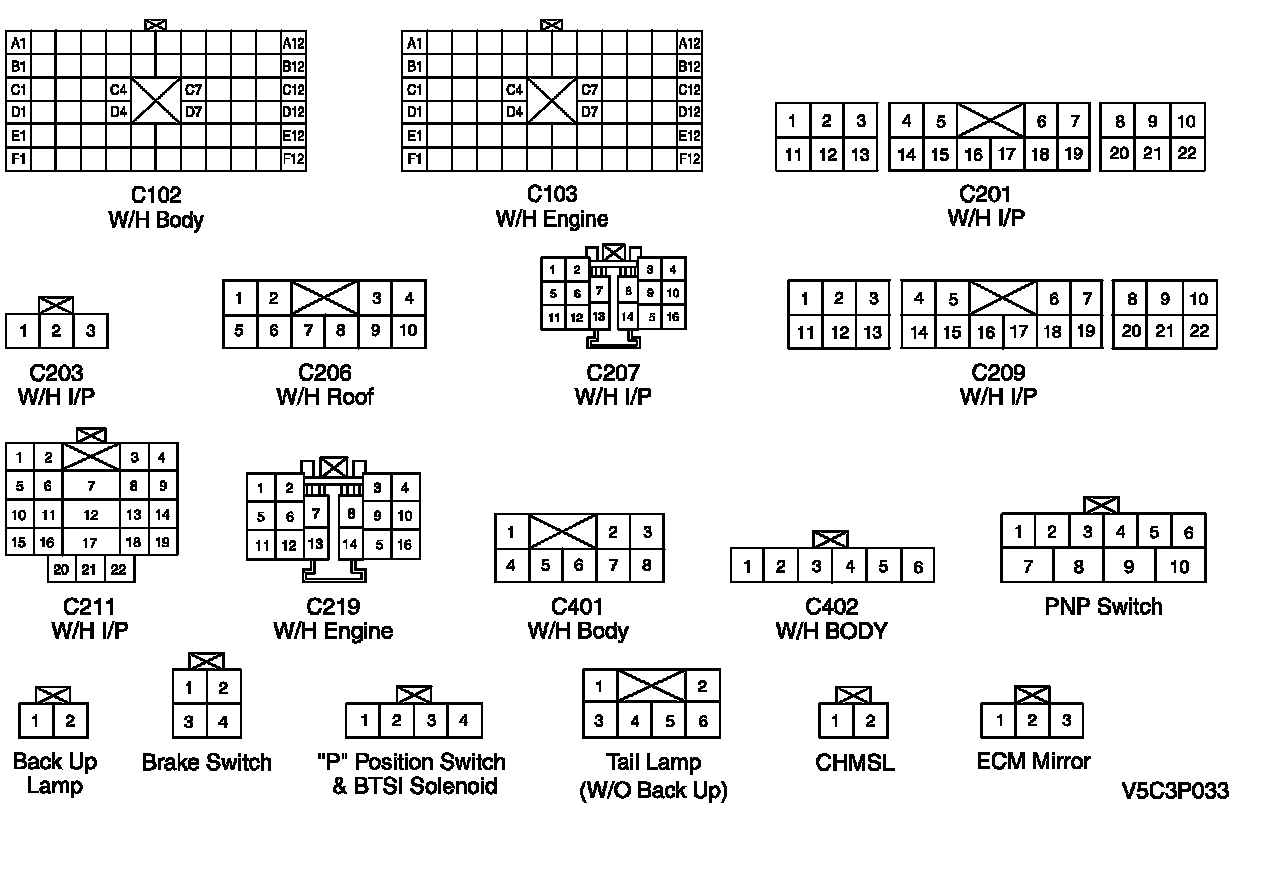

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

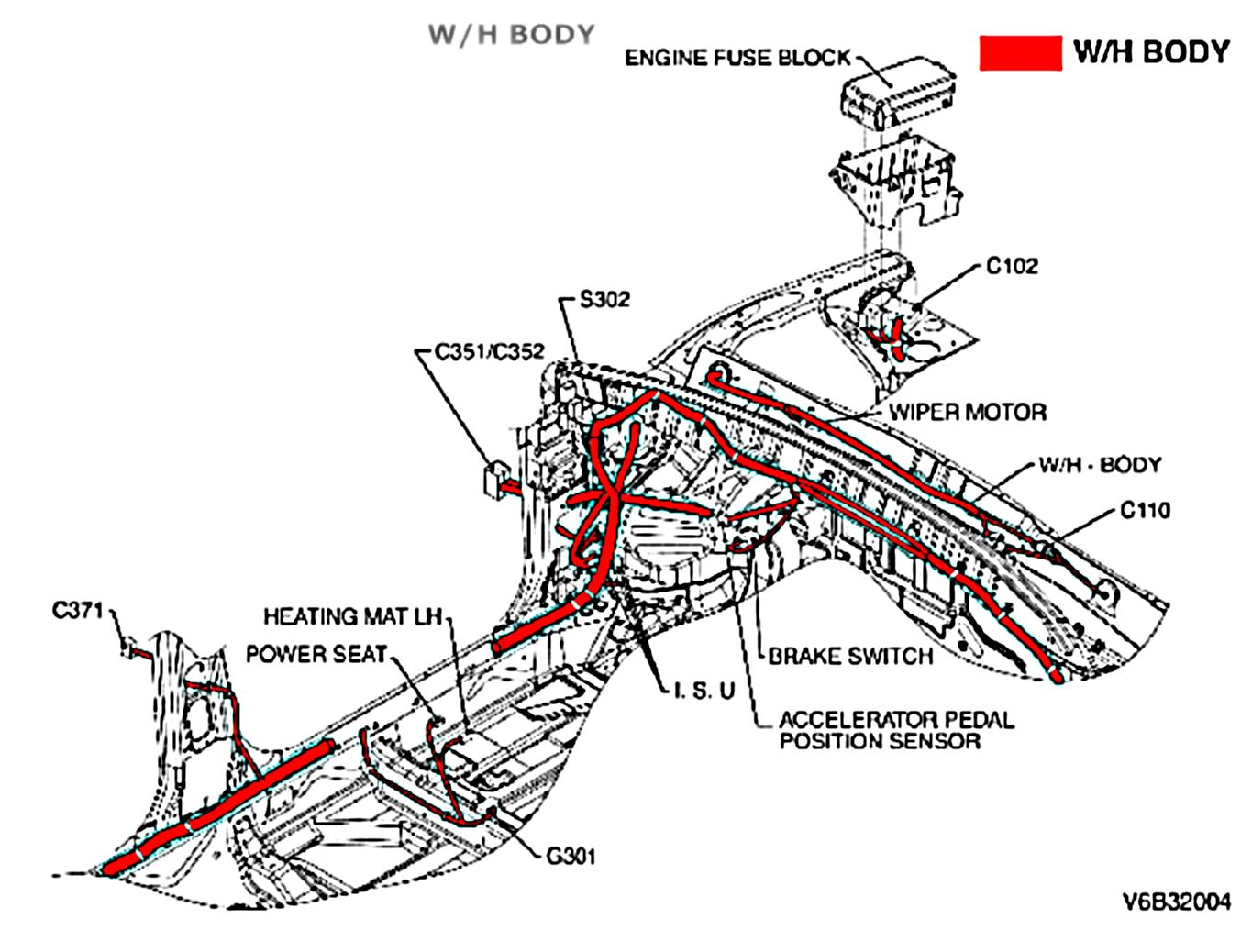

W/H BODY:

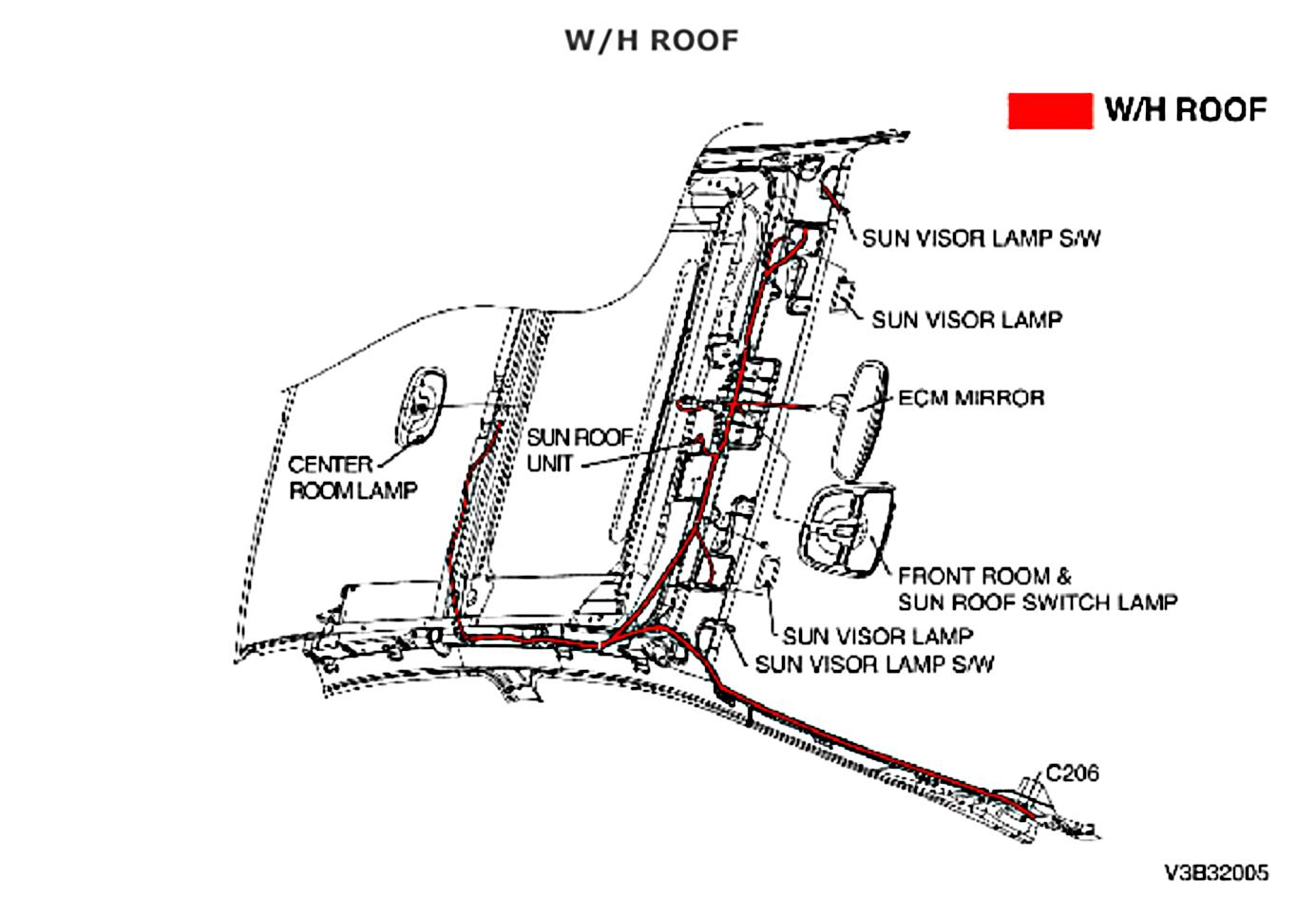

W/H ROOF:
POSITION OF CONNECTORS AND GROUNDS
S203 (ORANGE):
S301 (COLORLESS):
SPLICE PACK
