Power Supply, Wheel Speed Sensor and TCS Switch Circuit
Power Supply, Wheel Speed Sensor and TCS Switch Circuit:

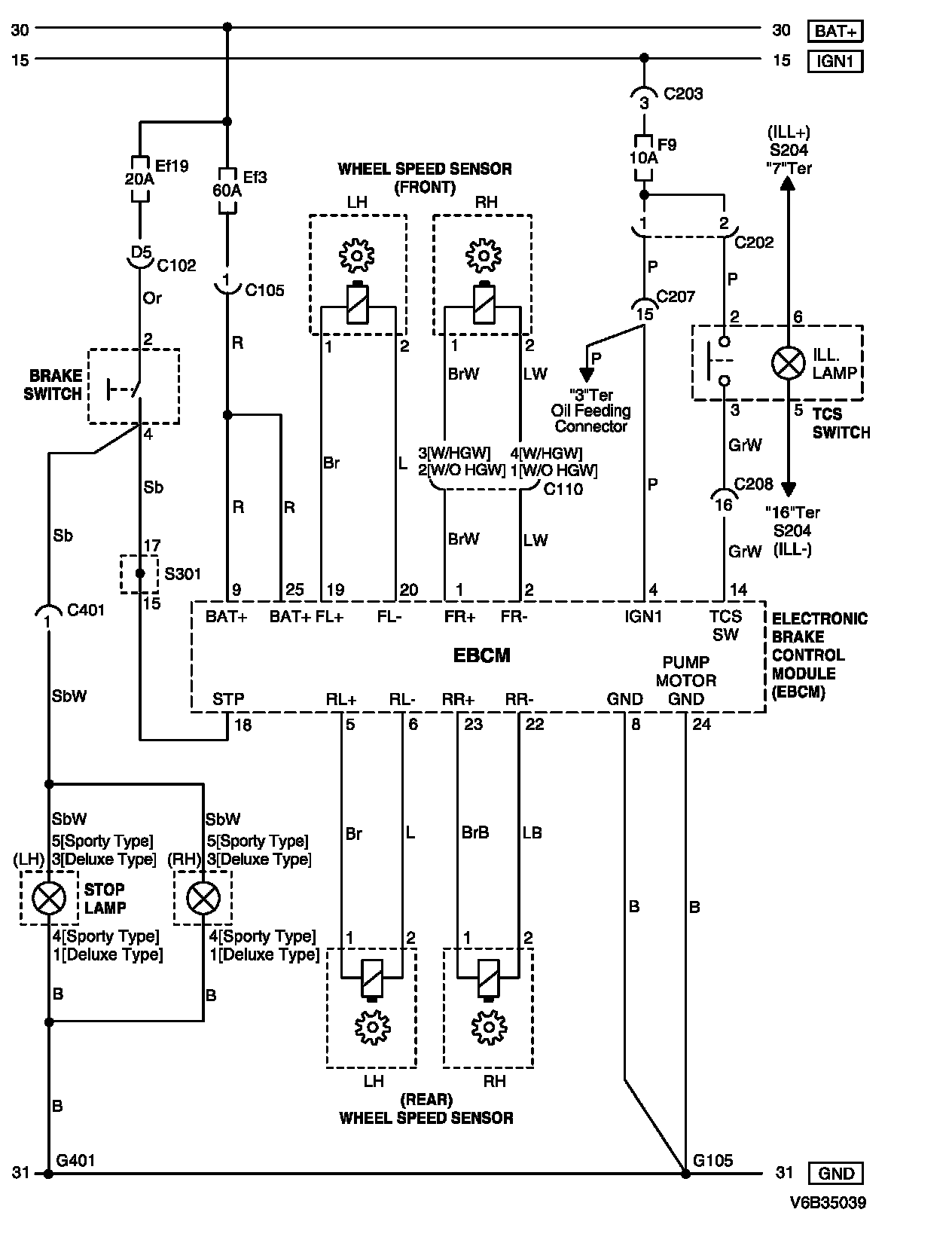

WIRING DIAGRAM
C102 - G401:
CONNECTOR INFORMATION

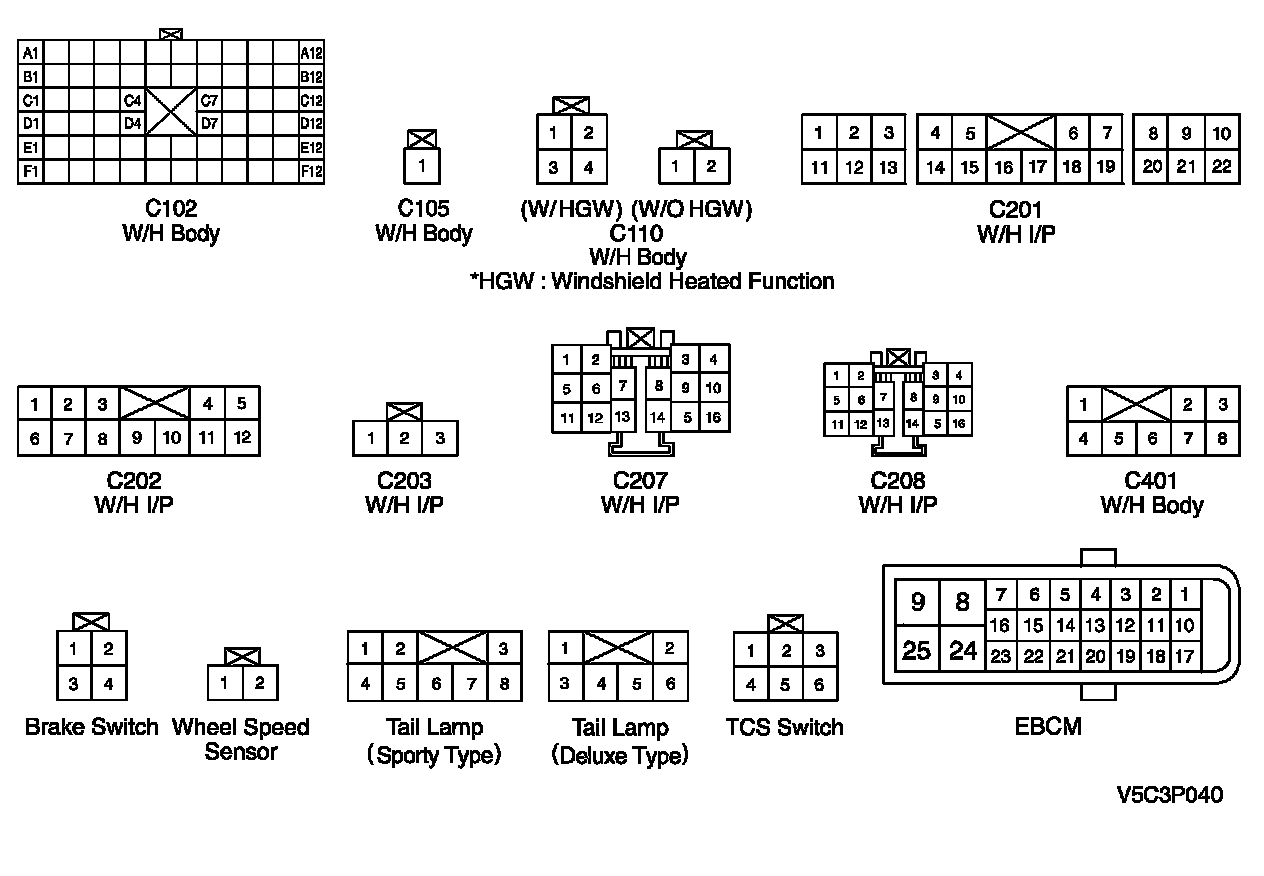

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
W/H ABS:

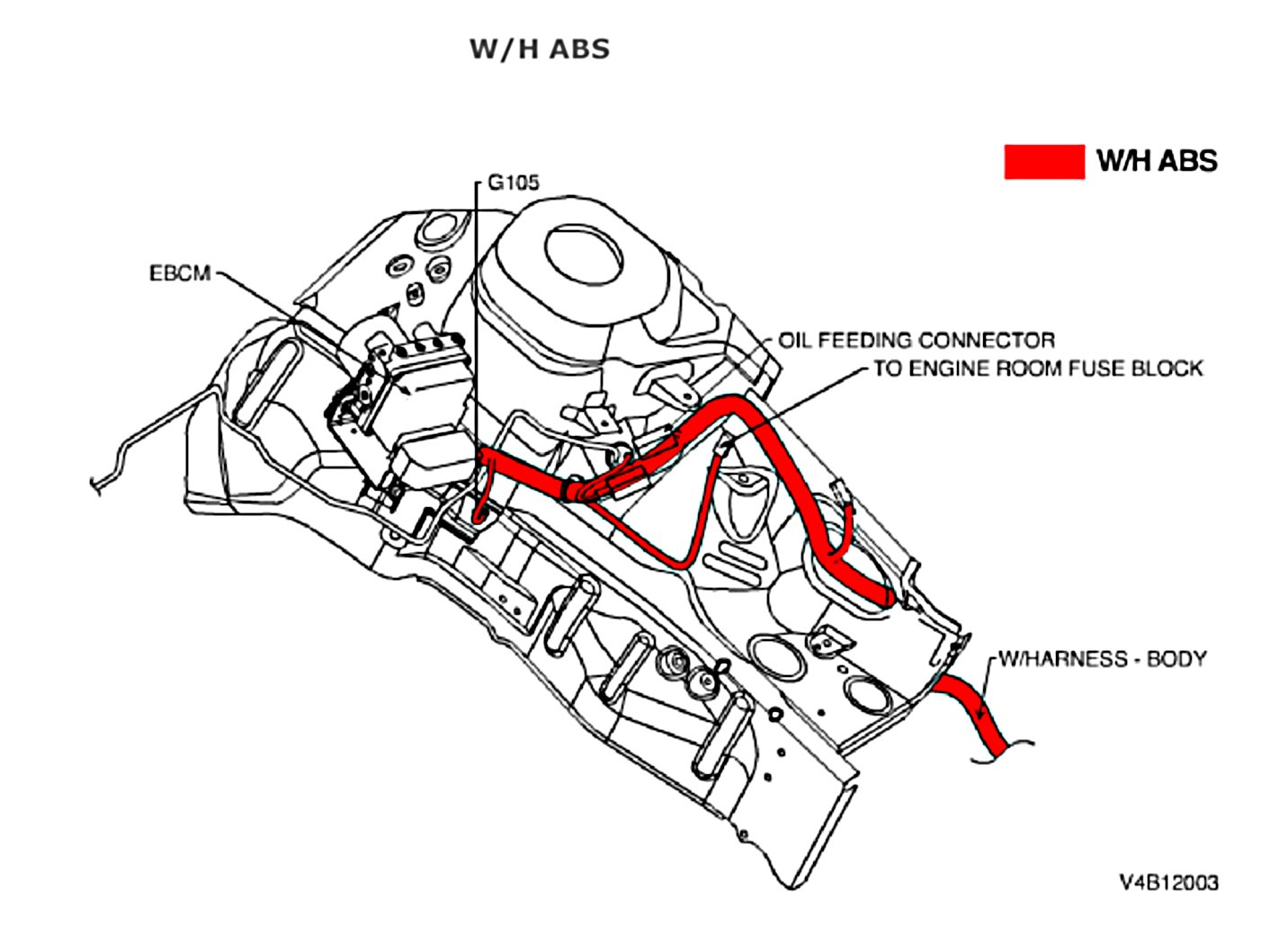

POSITION OF CONNECTORS AND GROUNDS
S203 (ORANGE):
S204 (RED):
S301 (COLORLESS):
SPLICE PACK
