Cluster, ABS Warning Lamp Module, Oil Feeding Connector and DLC Circuit
Cluster, ABS Warning Lamp Module, Oil Feeding Connector and DLC Circuit:

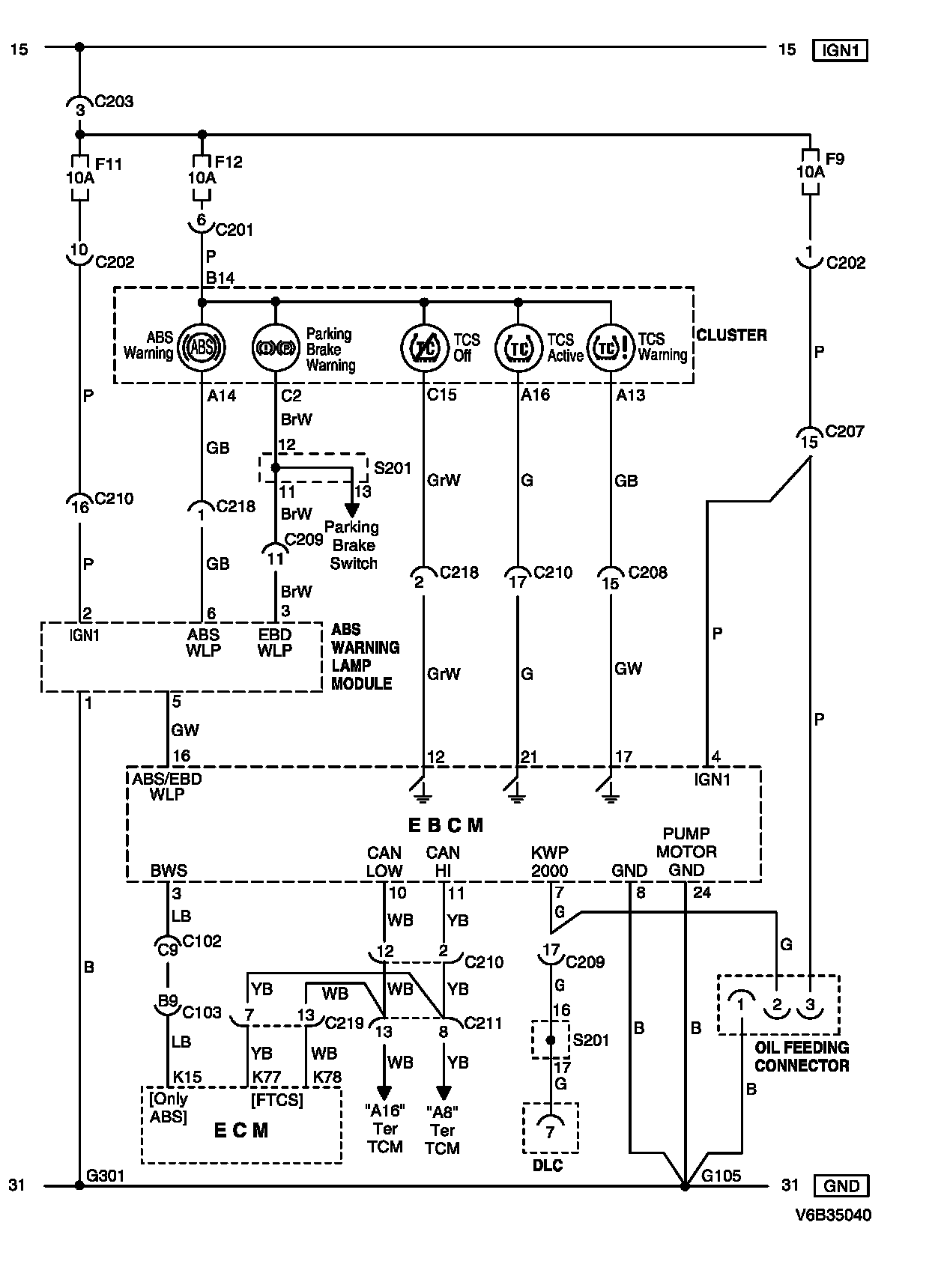

WIRING DIAGRAM
C201 - G202:

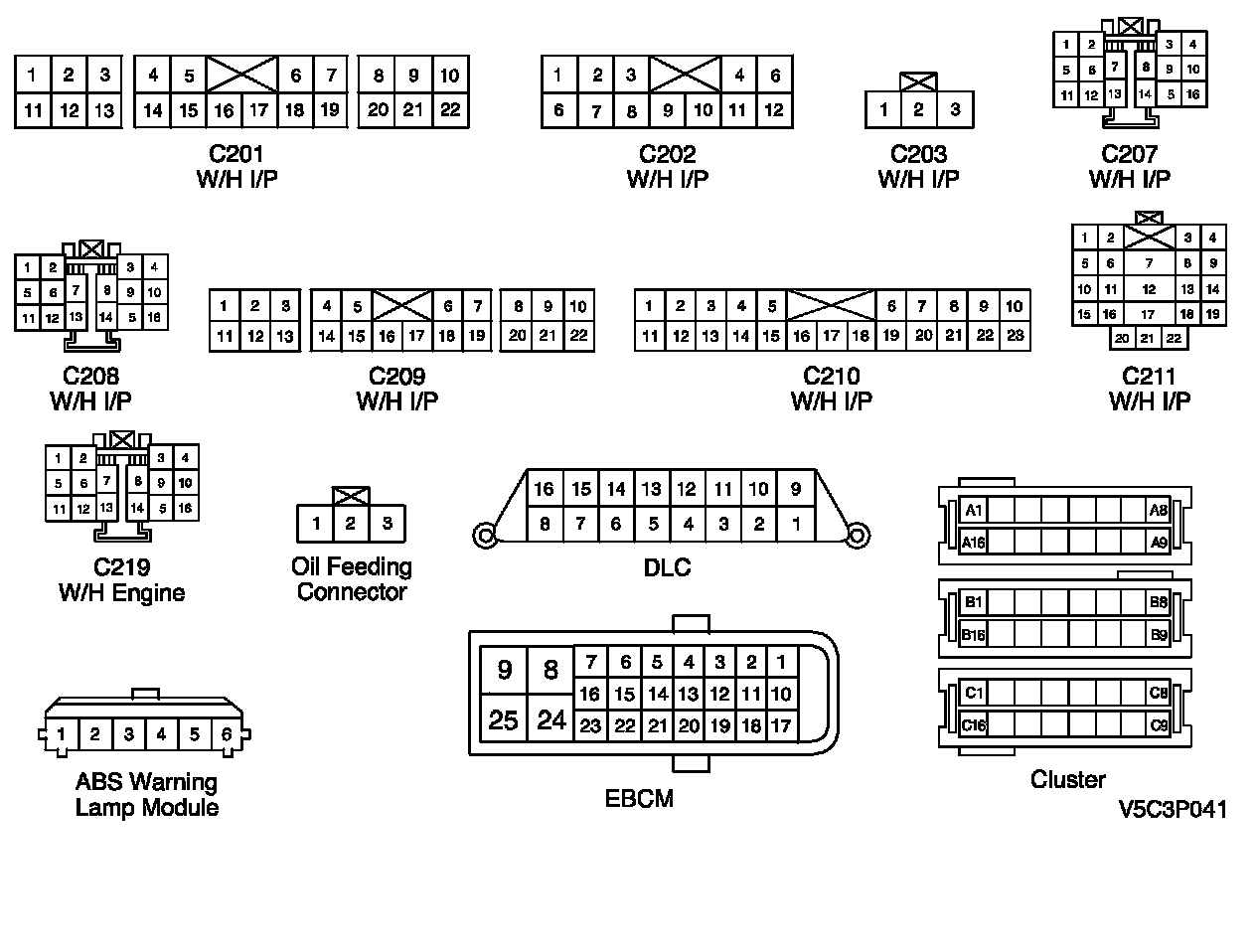

CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

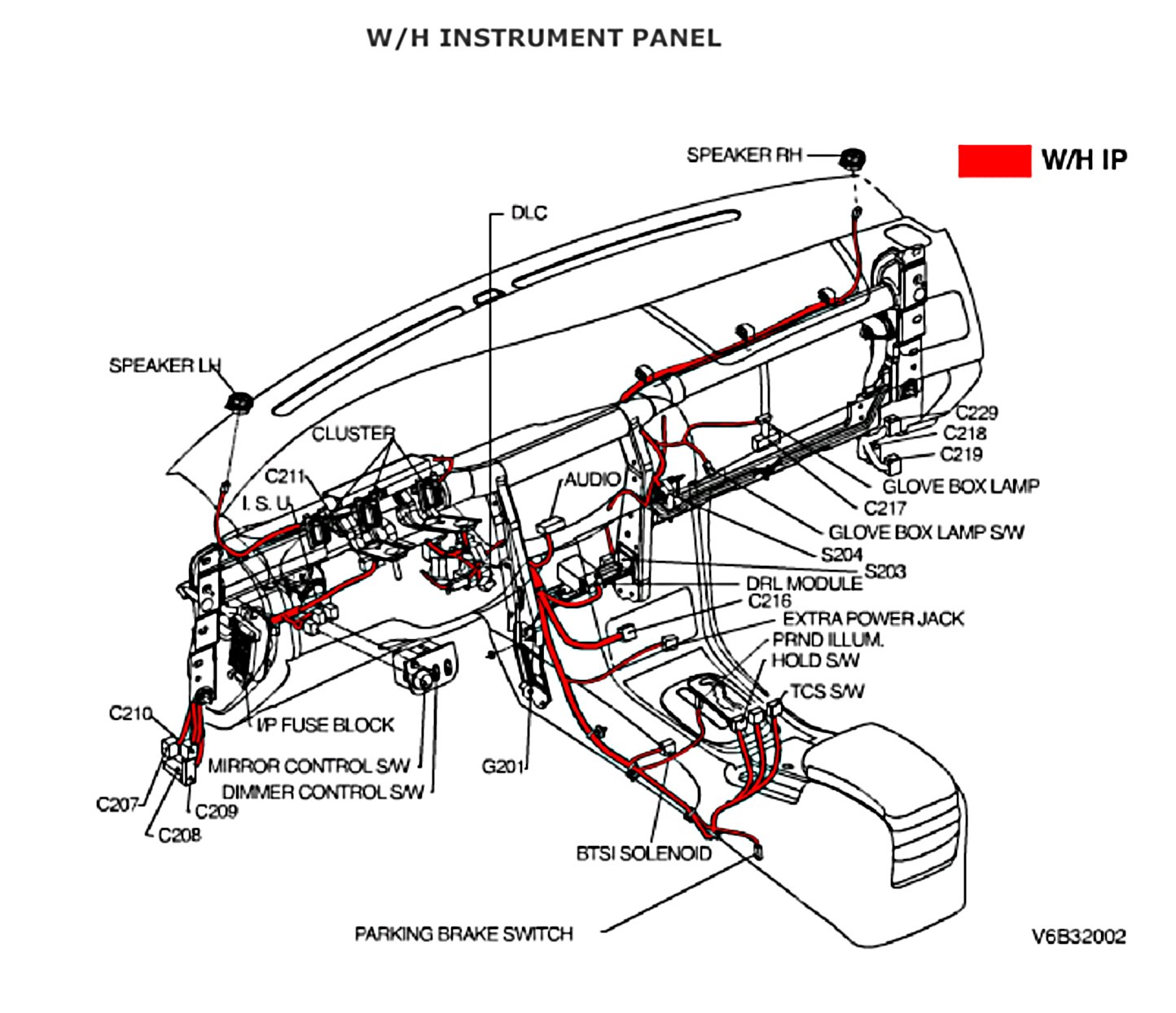

W/H INSTRUMENT PANEL:

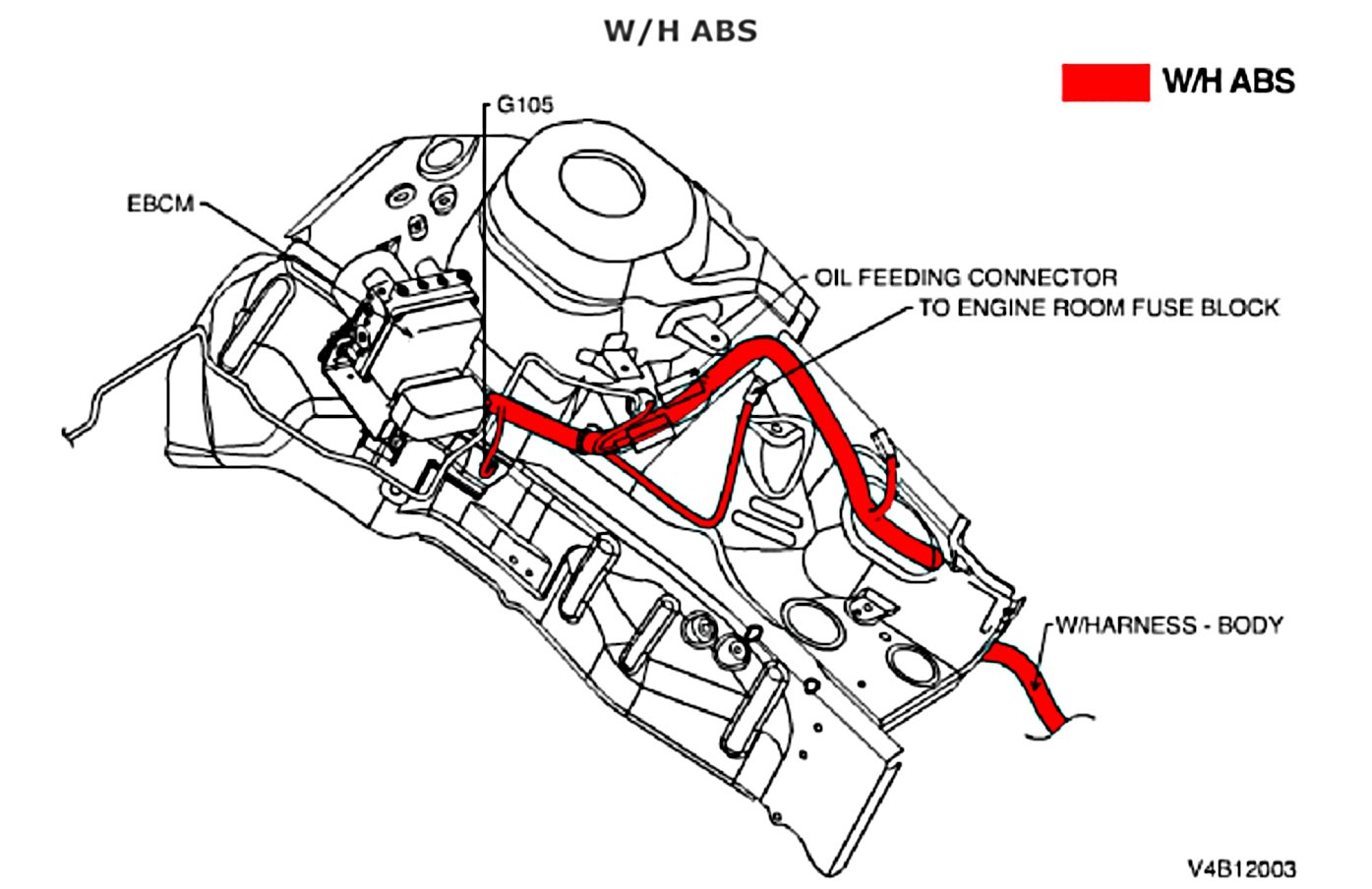

W/H ABS:
POSITION OF CONNECTORS AND GROUNDS
S201 (ORANGE):
SPLICE PACK
