Power Supply, G-Sensor, Occupant Sensor and Early Crash Sensor Circuit
Power Supply, G-Sensor, Occupant Sensor and Early Crash Sensor Circuit:

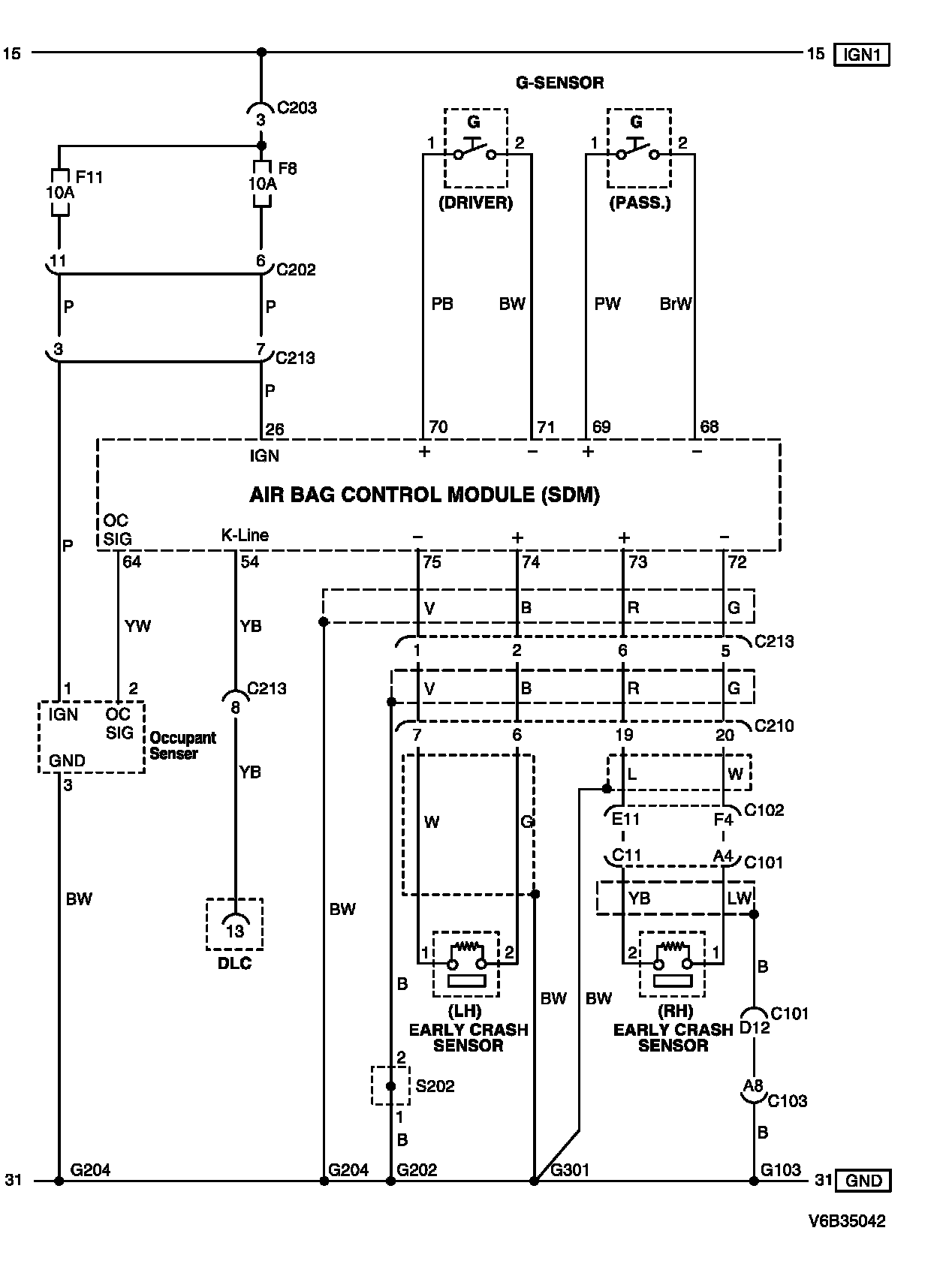

WIRING DIAGRAM
C101 - G301:
CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

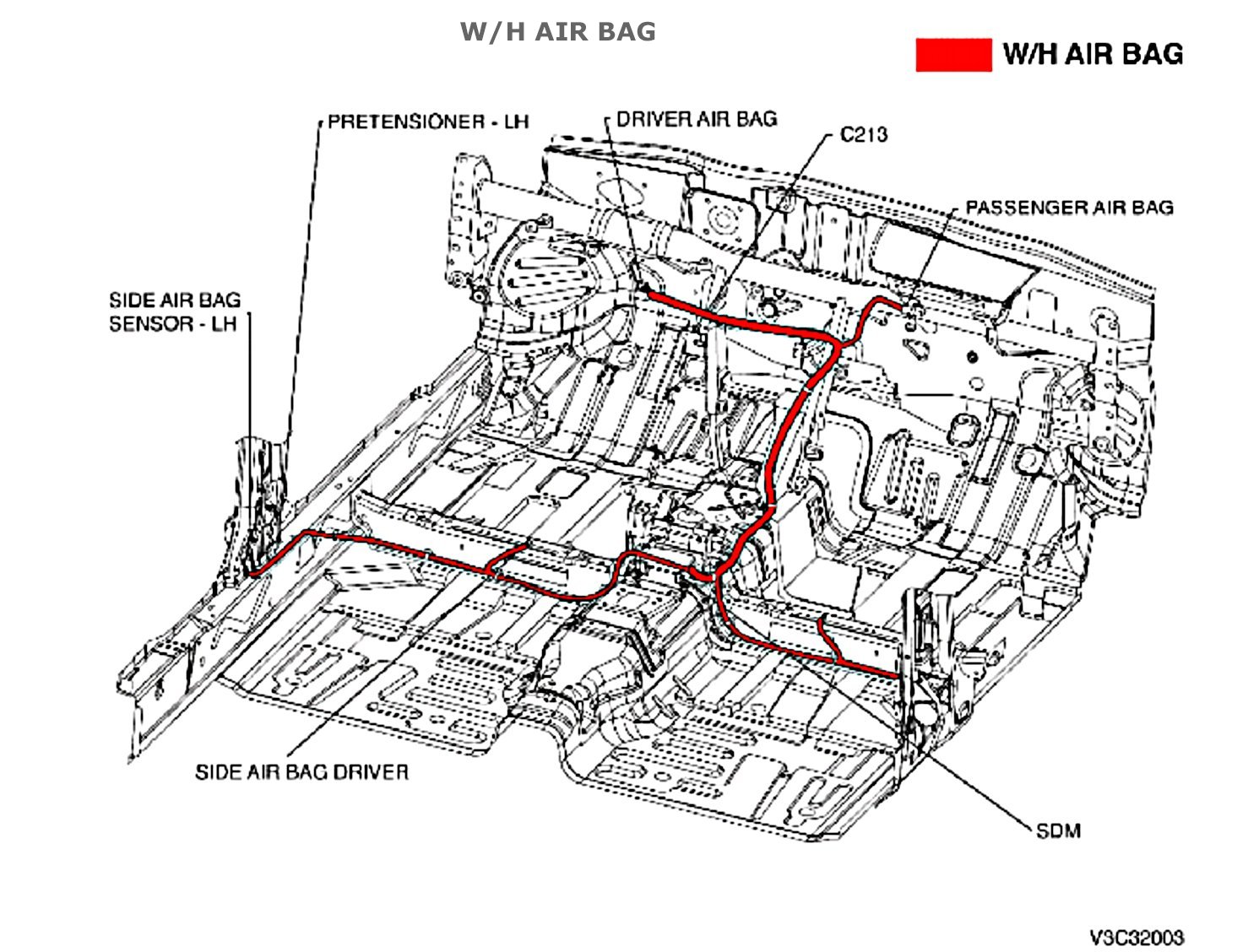

W/H AIR BAG:

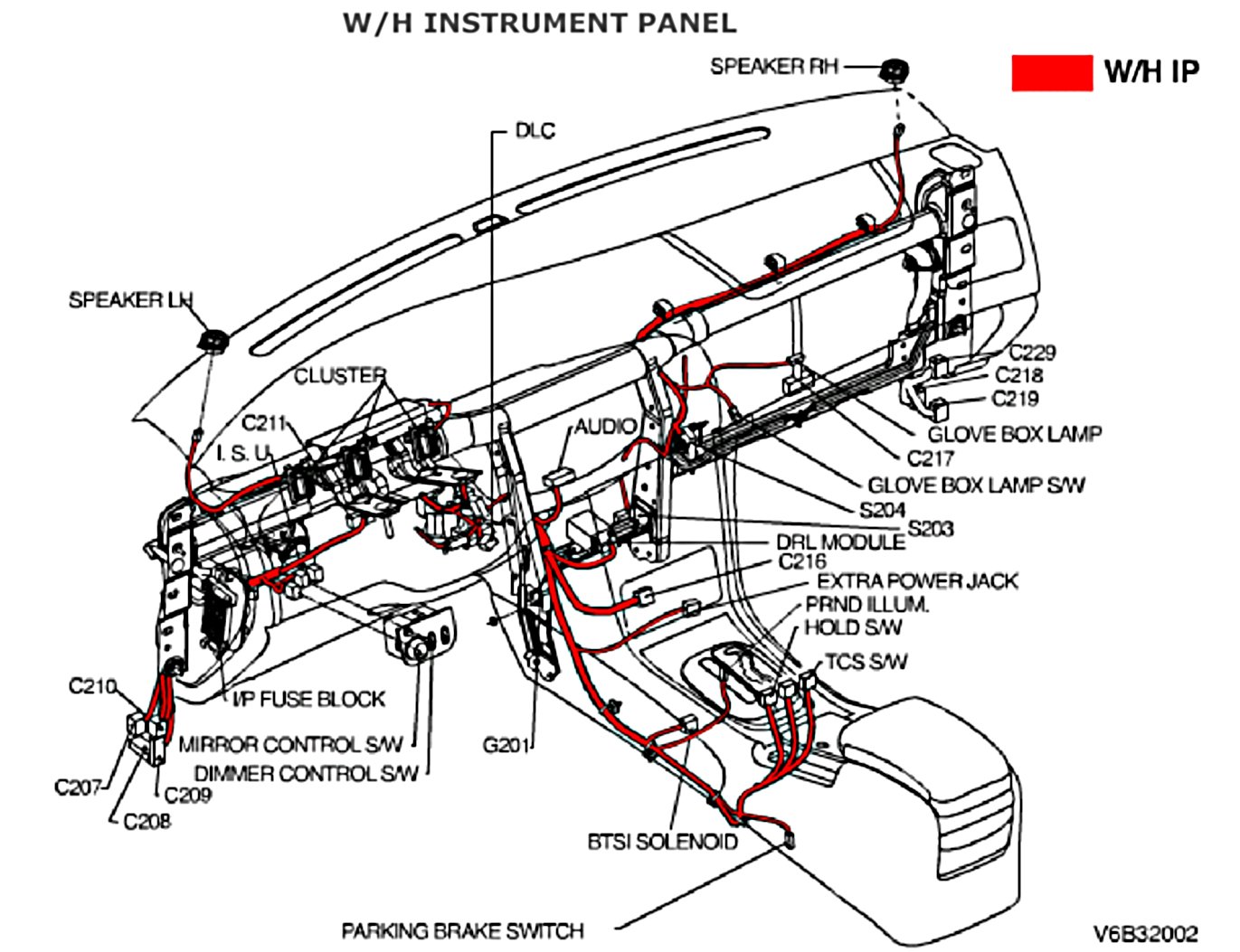

W/H INSTRUMENT PANEL:
POSITION OF CONNECTORS AND GROUNDS
S202 (ORANGE):
SPLICE PACK
