Electrical Diagrams
Cruise Control System Circuit:

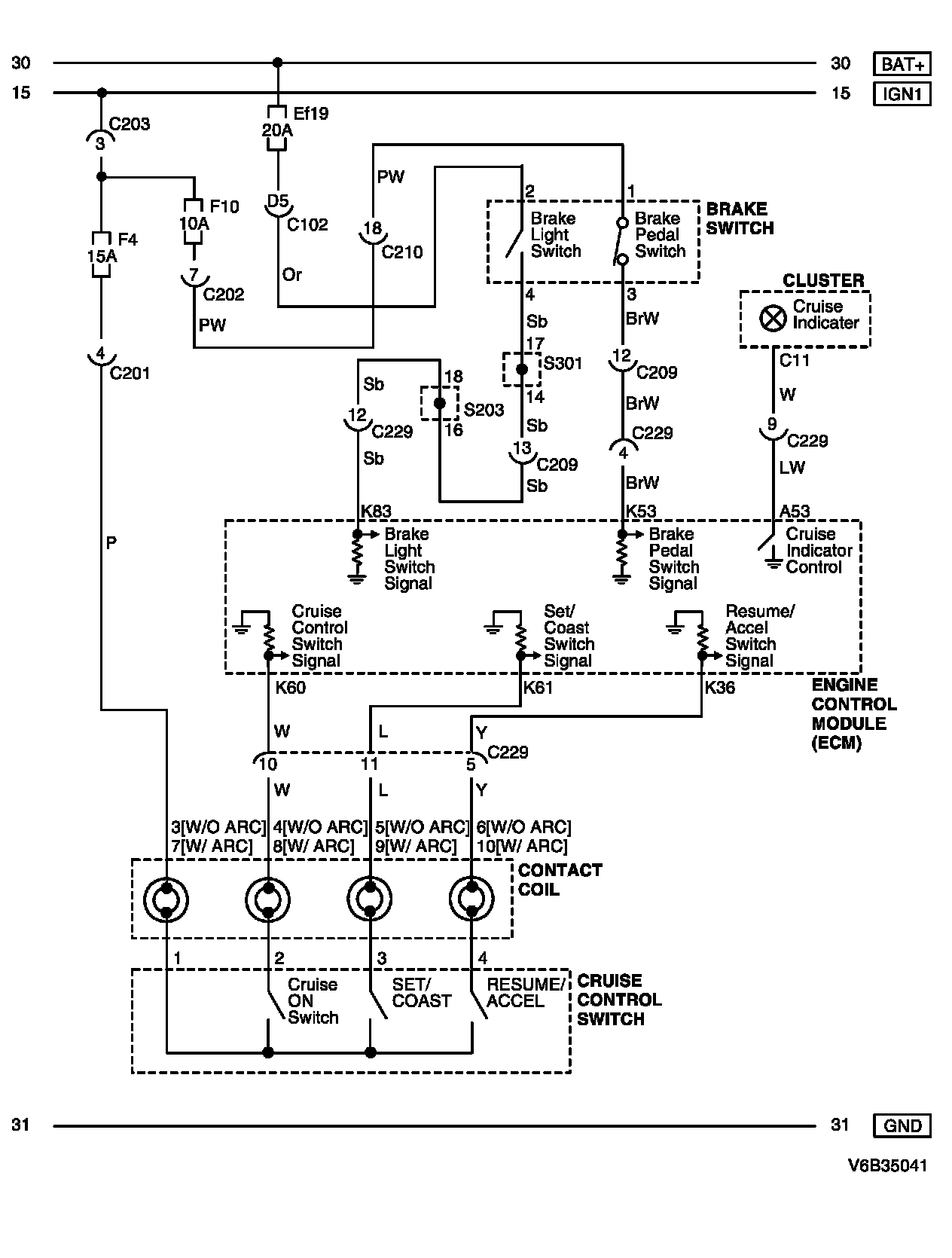

WIRING DIAGRAM
C102 - S301:

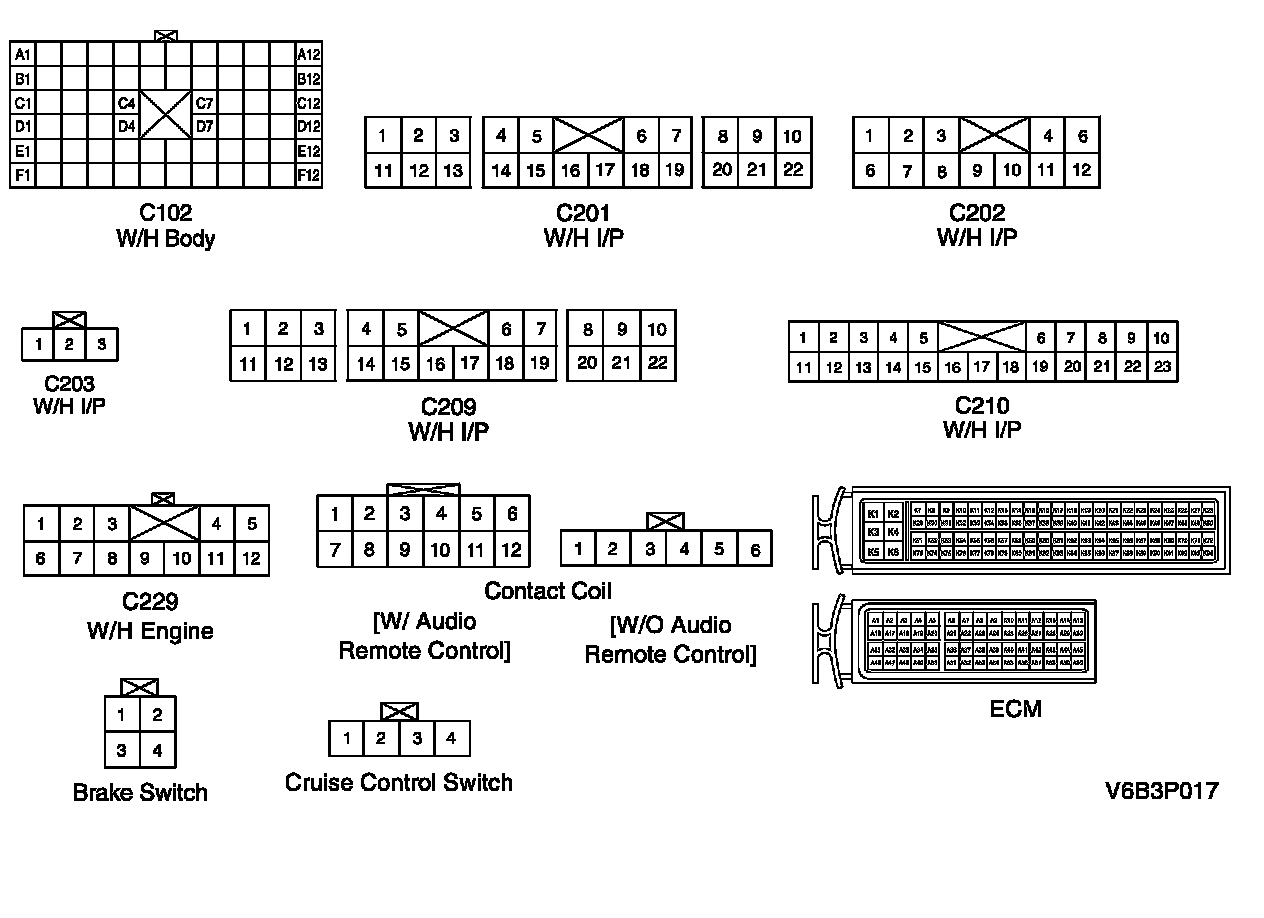

CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

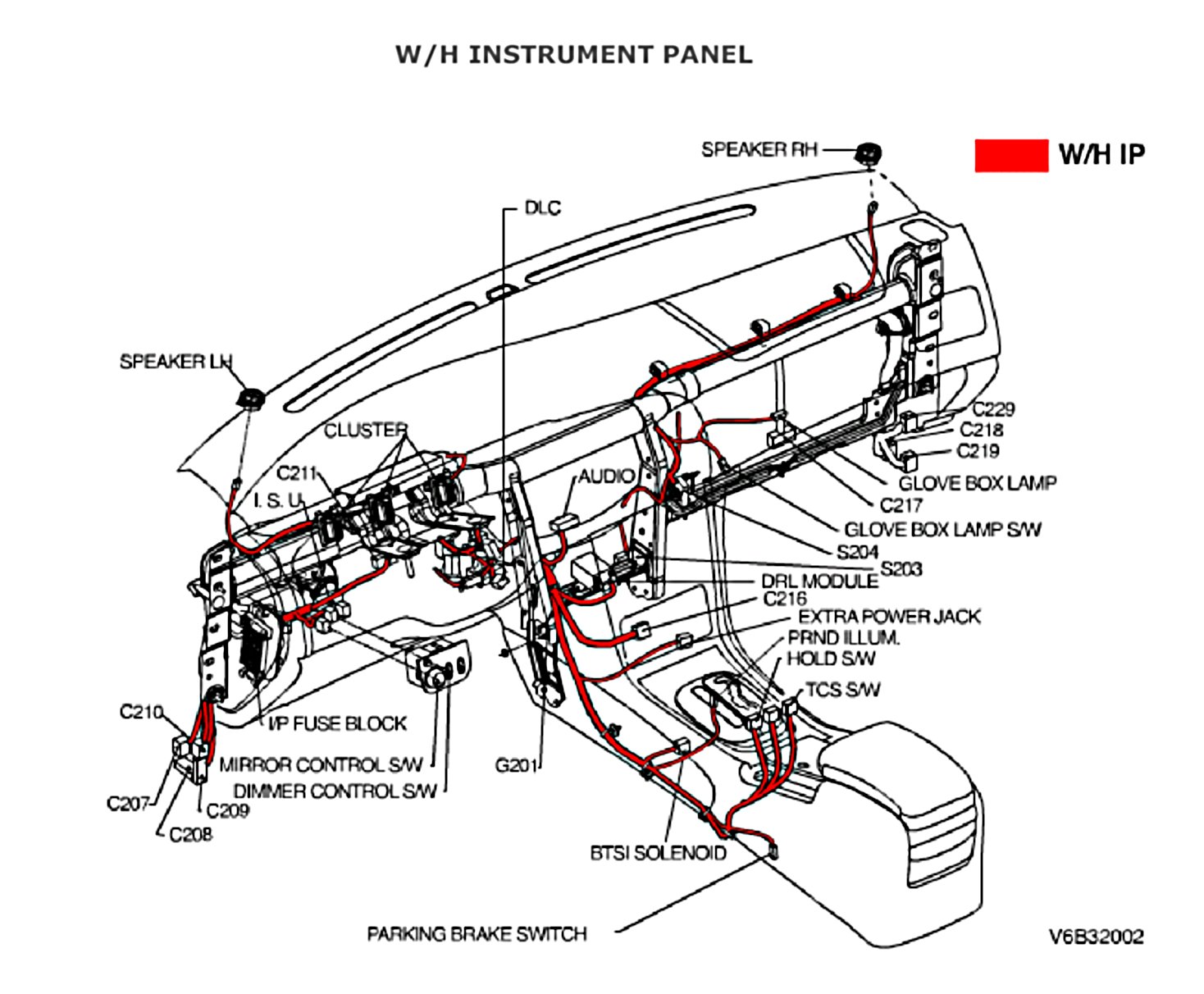

W/H INSTRUMENT PANEL:

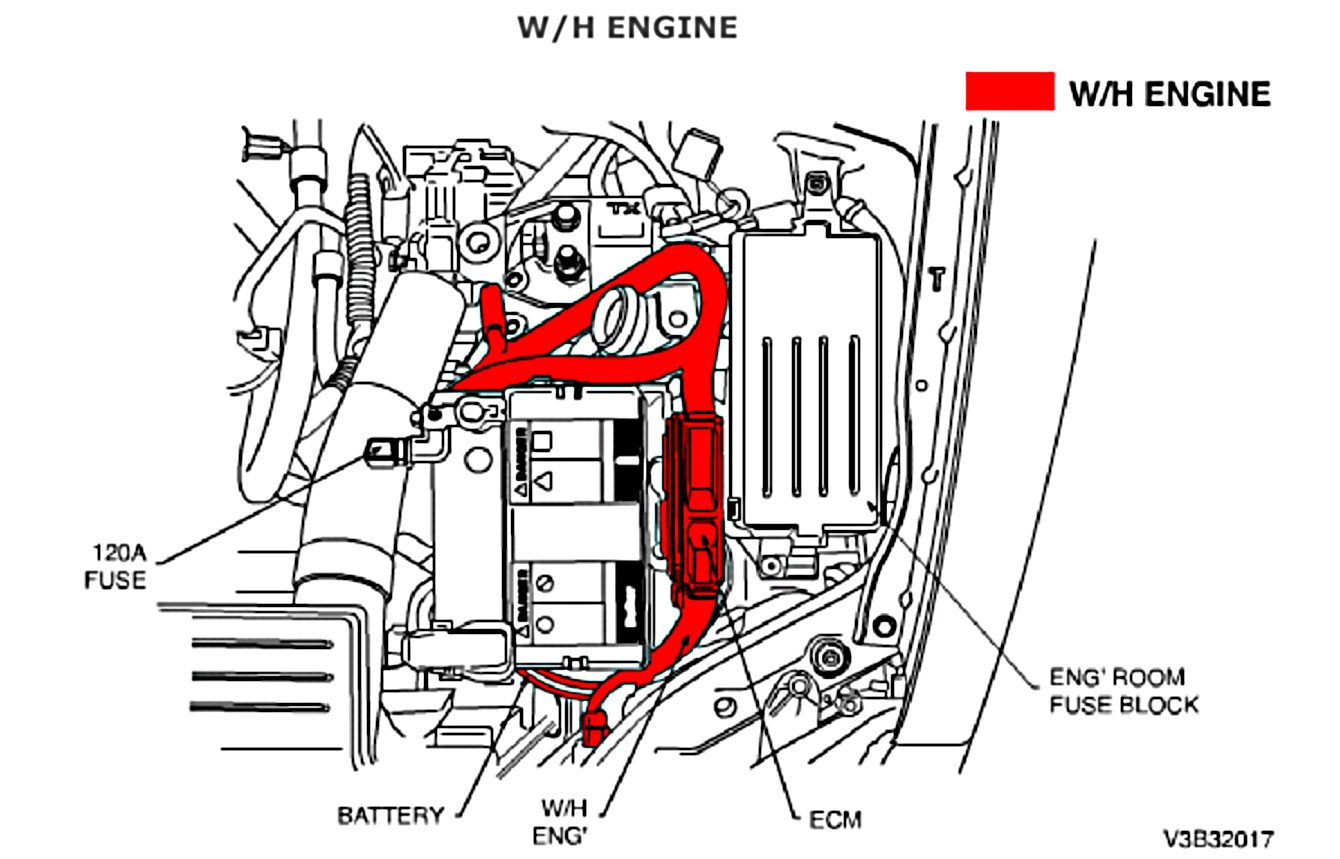

W/H ENGINE:
POSITION OF CONNECTORS AND GROUNDS
S203 (ORANGE):
S301 (COLORLESS):
SPLICE PACK
