Mirror Control Switch and Drive Power Mirror Unit Circuit
Mirror Control Switch and Drive Power Mirror Unit Circuit:

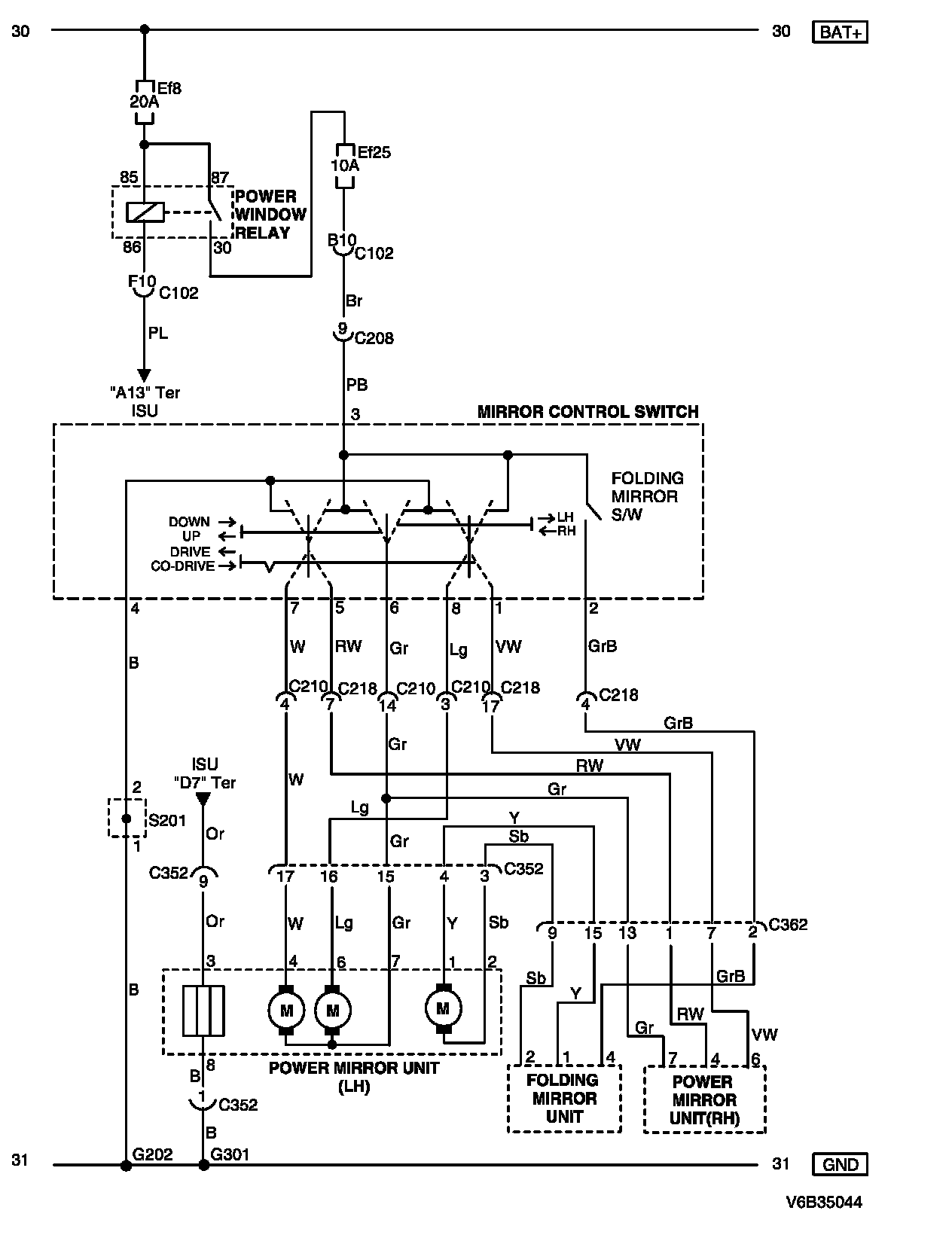

WIRING DIAGRAM
C102 - G301:
CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

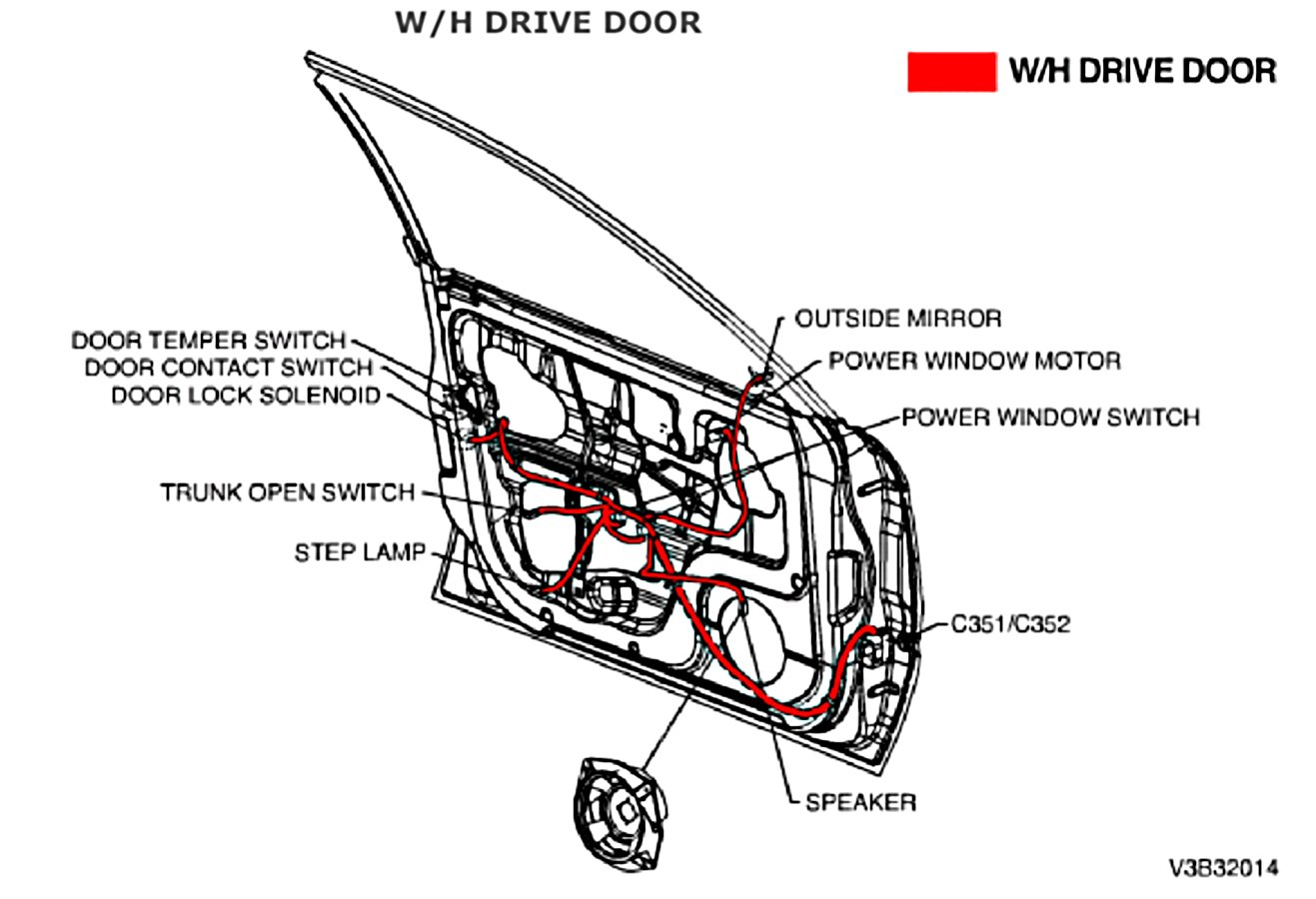

W/H DRIVE DOOR:

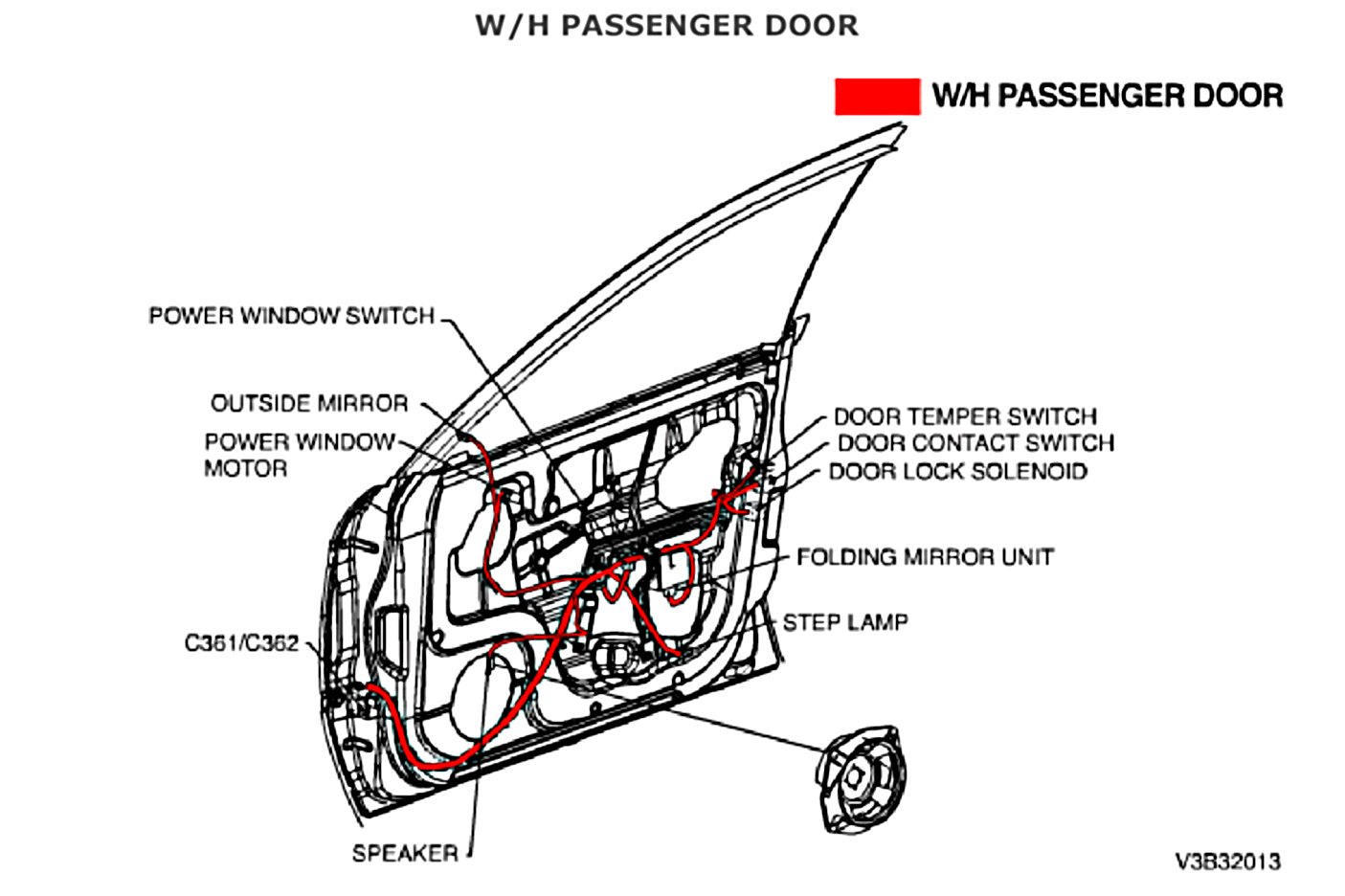

W/H PASSENGER DOOR:

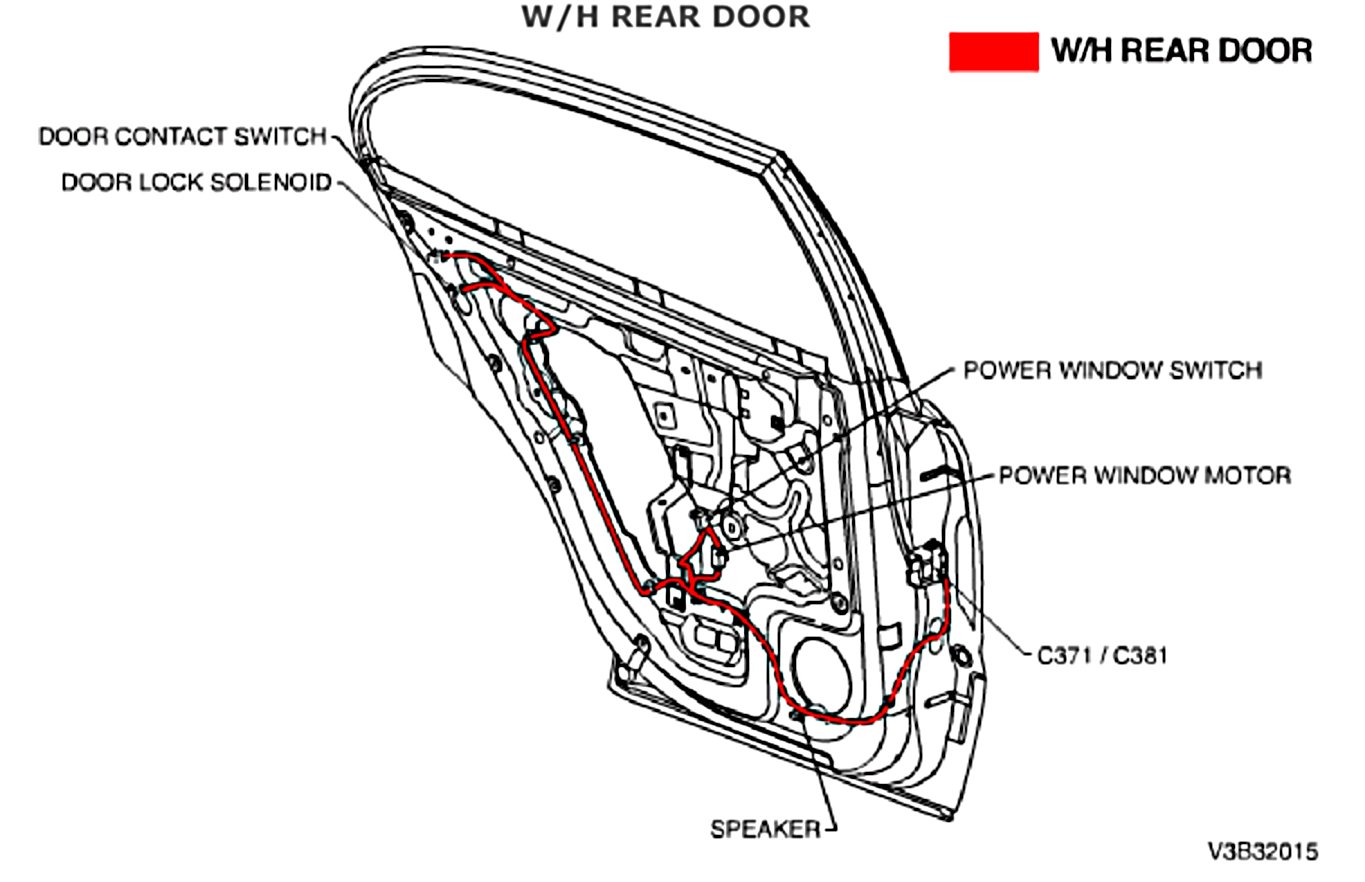

W/H REAR DOOR:
POSITION OF CONNECTORS AND GROUNDS
S201 (ORANGE):
SPLICE PACK
