Turn Signal and Hazard Switch Circuit
Turn Signal and Hazard Switch Circuit:

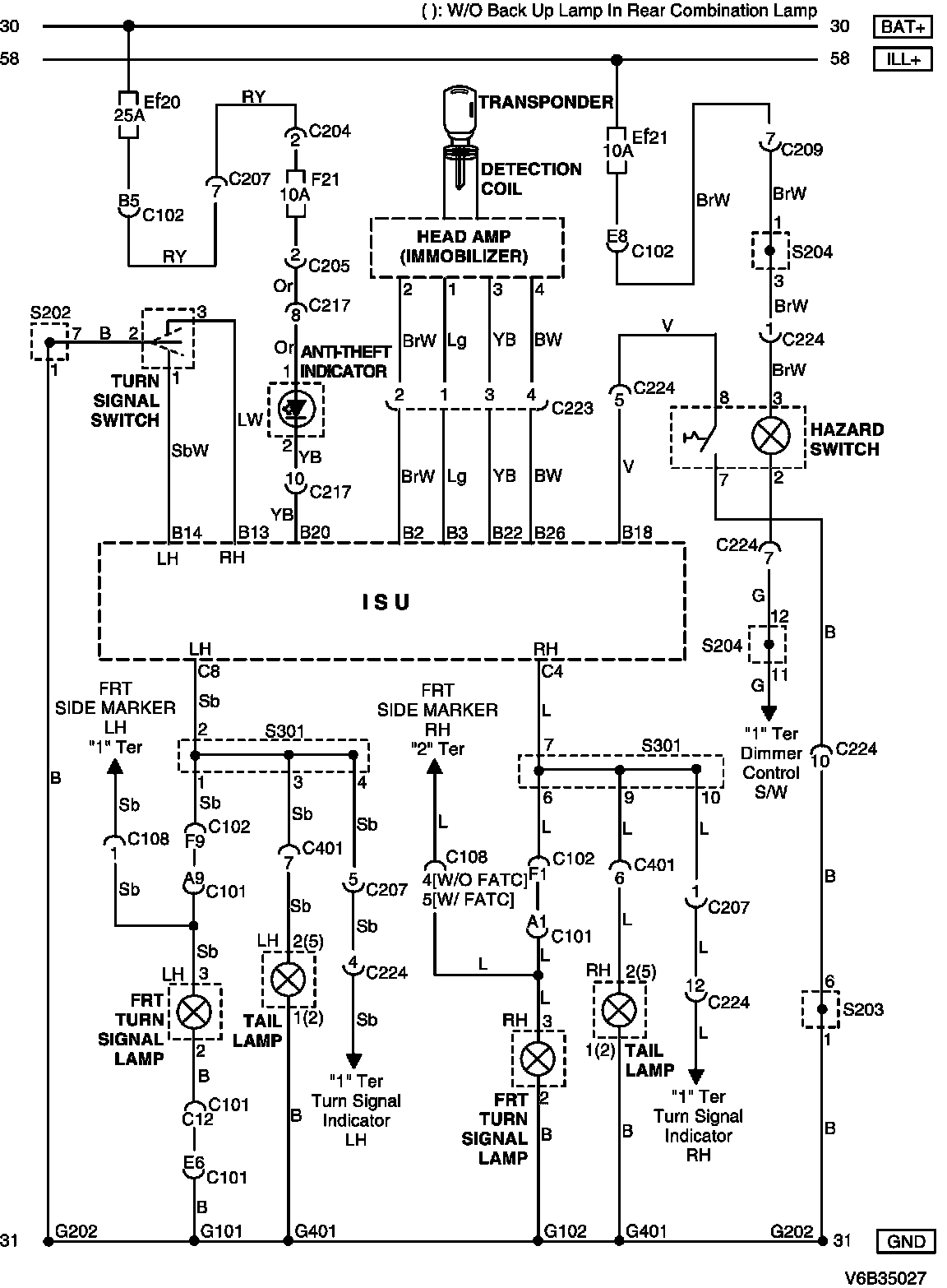

WIRING DIAGRAM
C101 - G401:

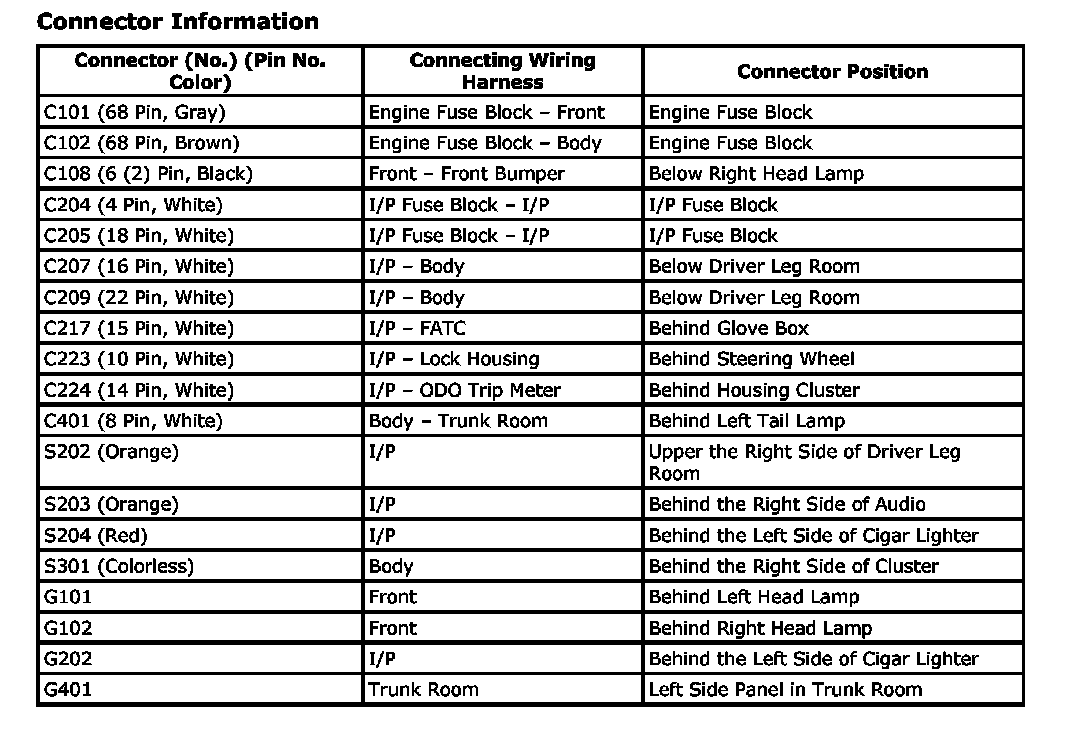

CONNECTOR INFORMATION

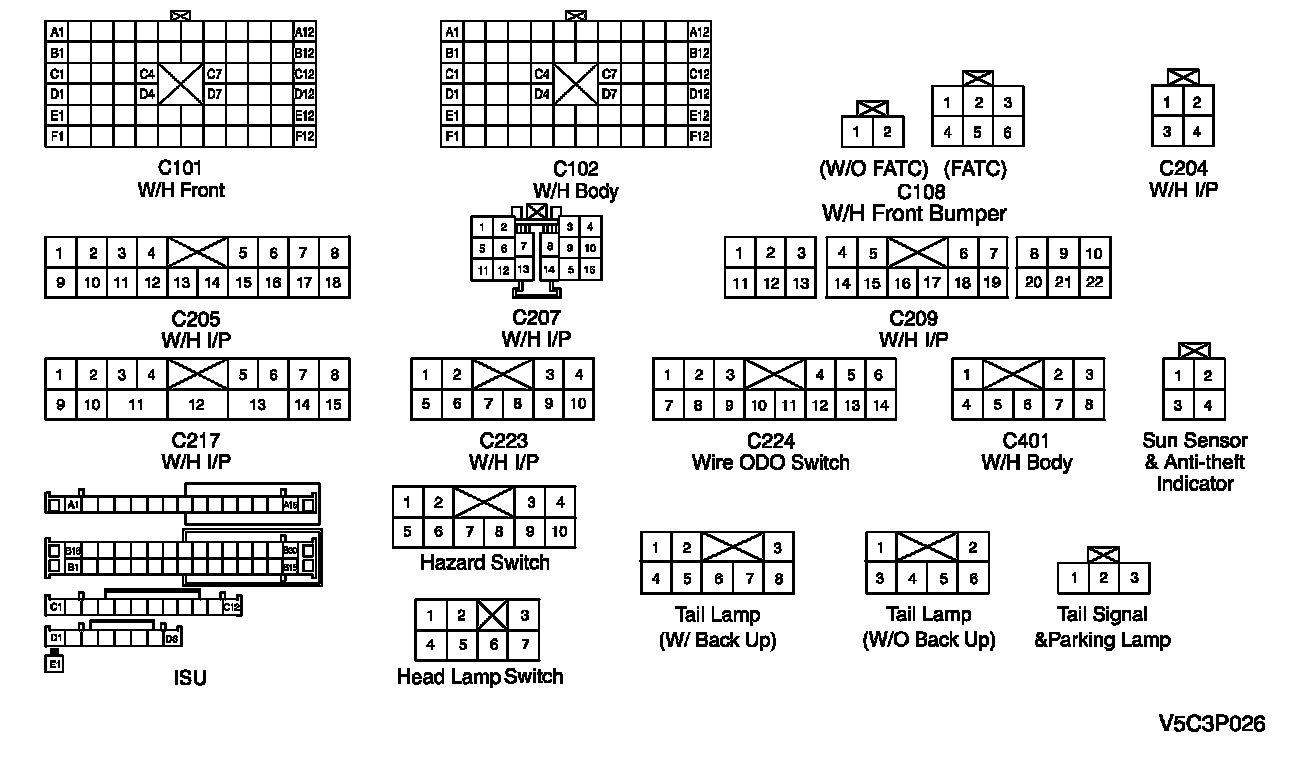

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION
S202 (ORANGE):
S203 (ORANGE):
S204 (RED):
S301 (COLORLESS):
SPLICE PACK
