Sun Visor, Lamp (Room, Map, Step) and Door Contact Switch Circuit
Sun Visor, Lamp (Room, Map, Step) and Door Contact Switch Circuit:

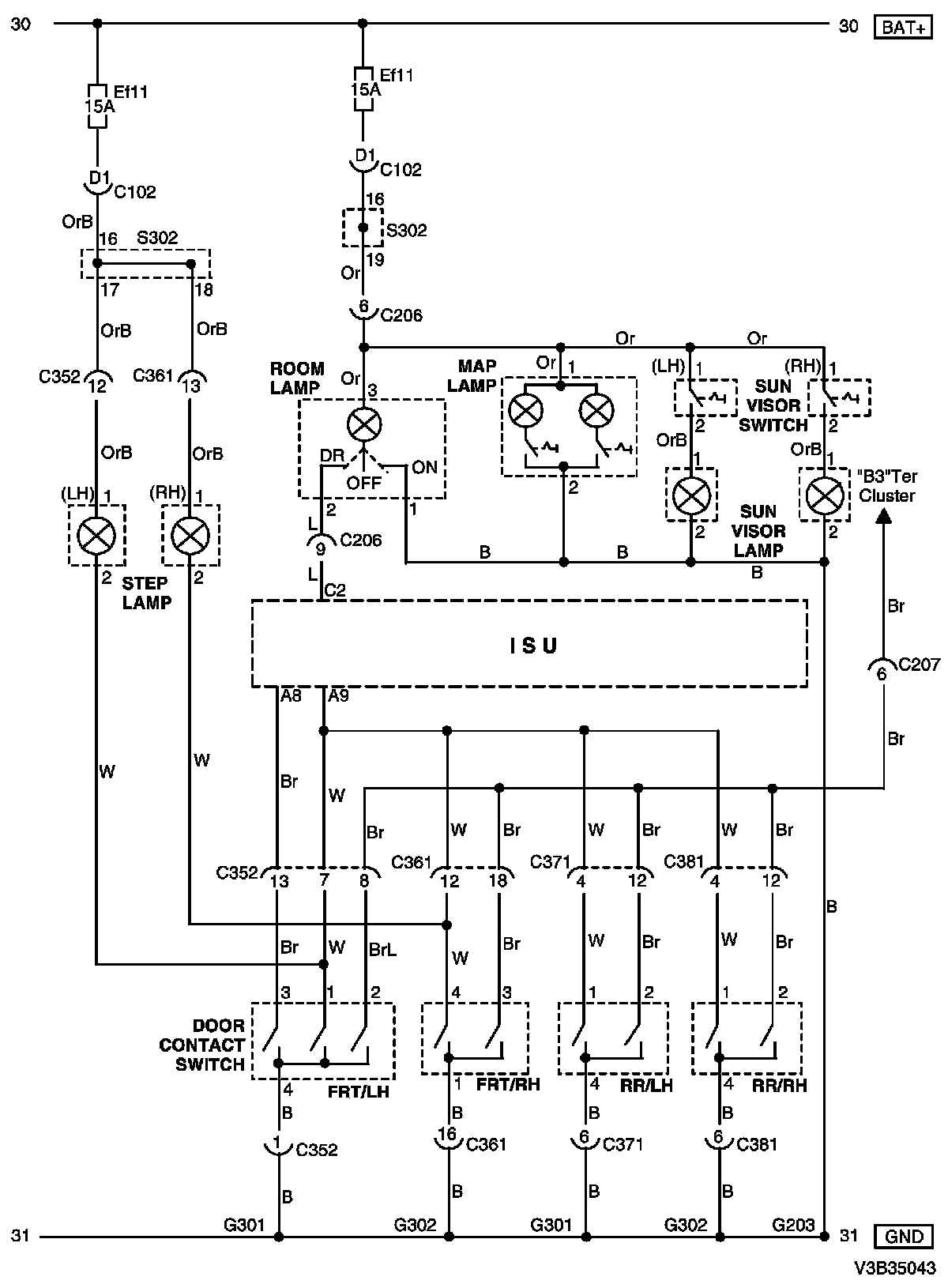

WIRING DIAGRAM
C102 - G302:
CONNECTOR INFORMATION
Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

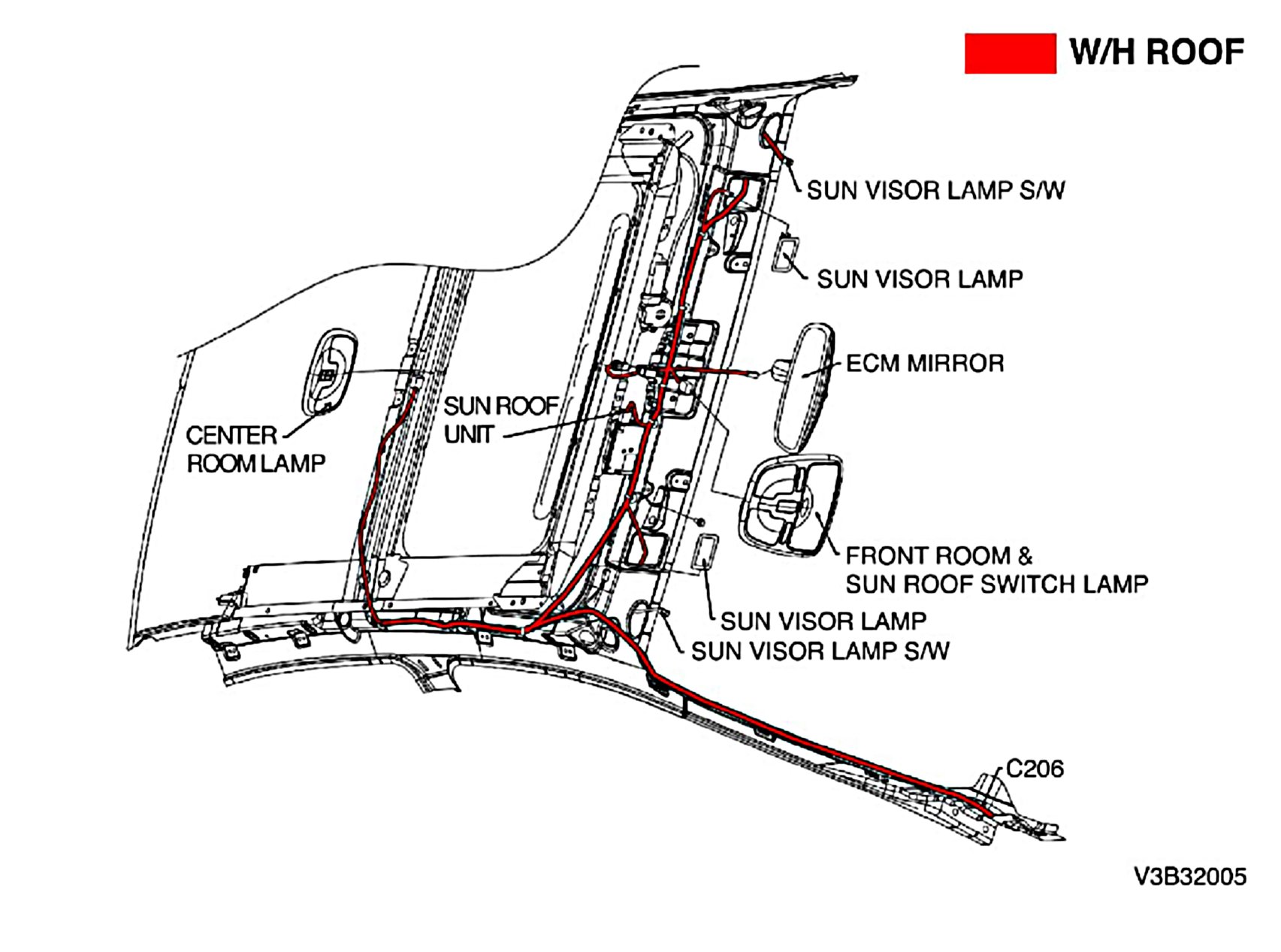

W/H ROOF (W/ SUN ROOF):

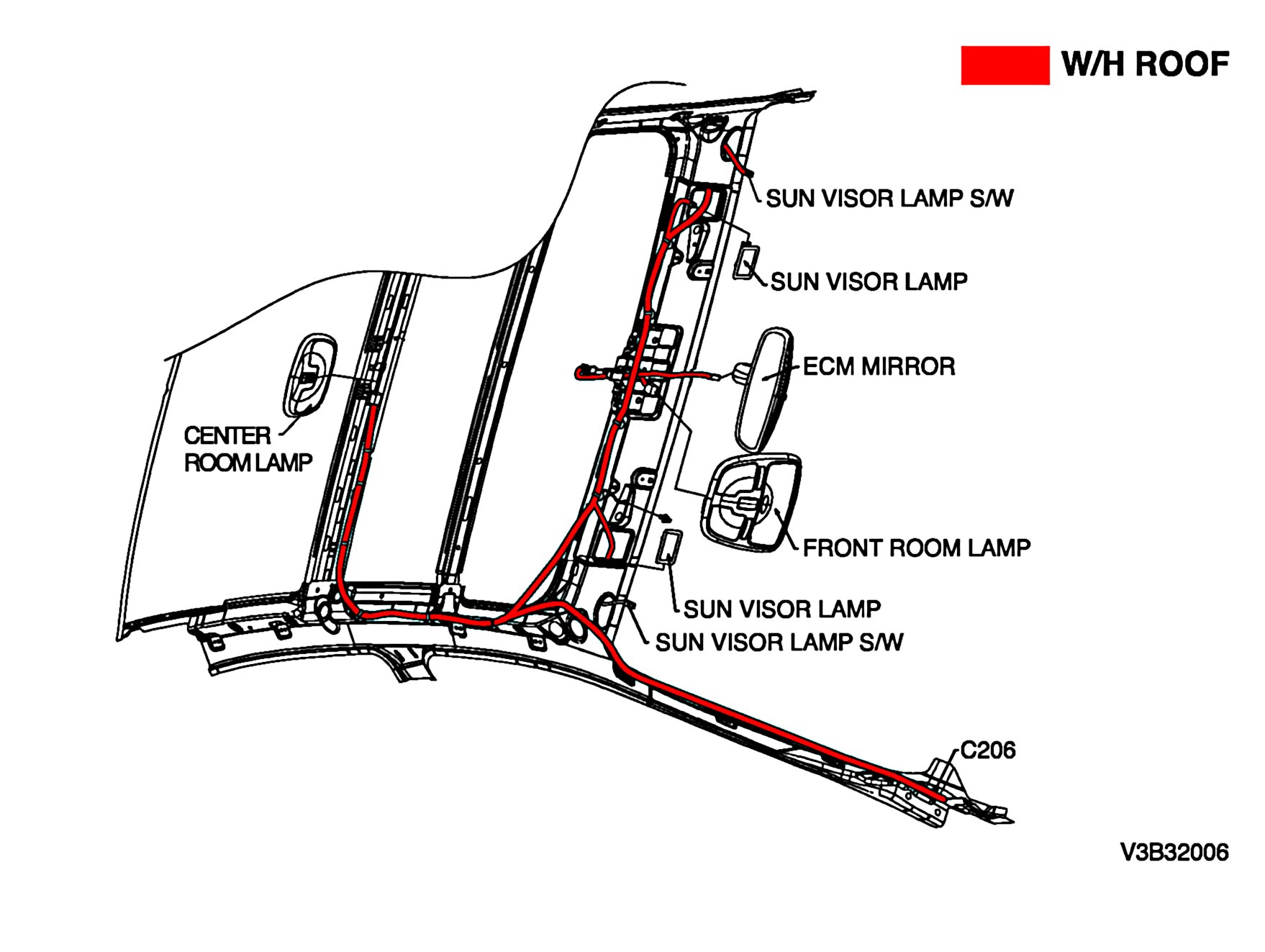

W/H ROOF (W/O SUN ROOF):
POSITION OF CONNECTORS AND GROUNDS
S302 (COLORLESS):
SPLICE PACK
