Key Remind Switch, Seat Belt Switch, Trunk Latch Assembly and Hood Contact Switch Circuit
Key Remind Switch, Seat Belt Switch, Trunk Latch Assembly and Hood Contact Switch Circuit:

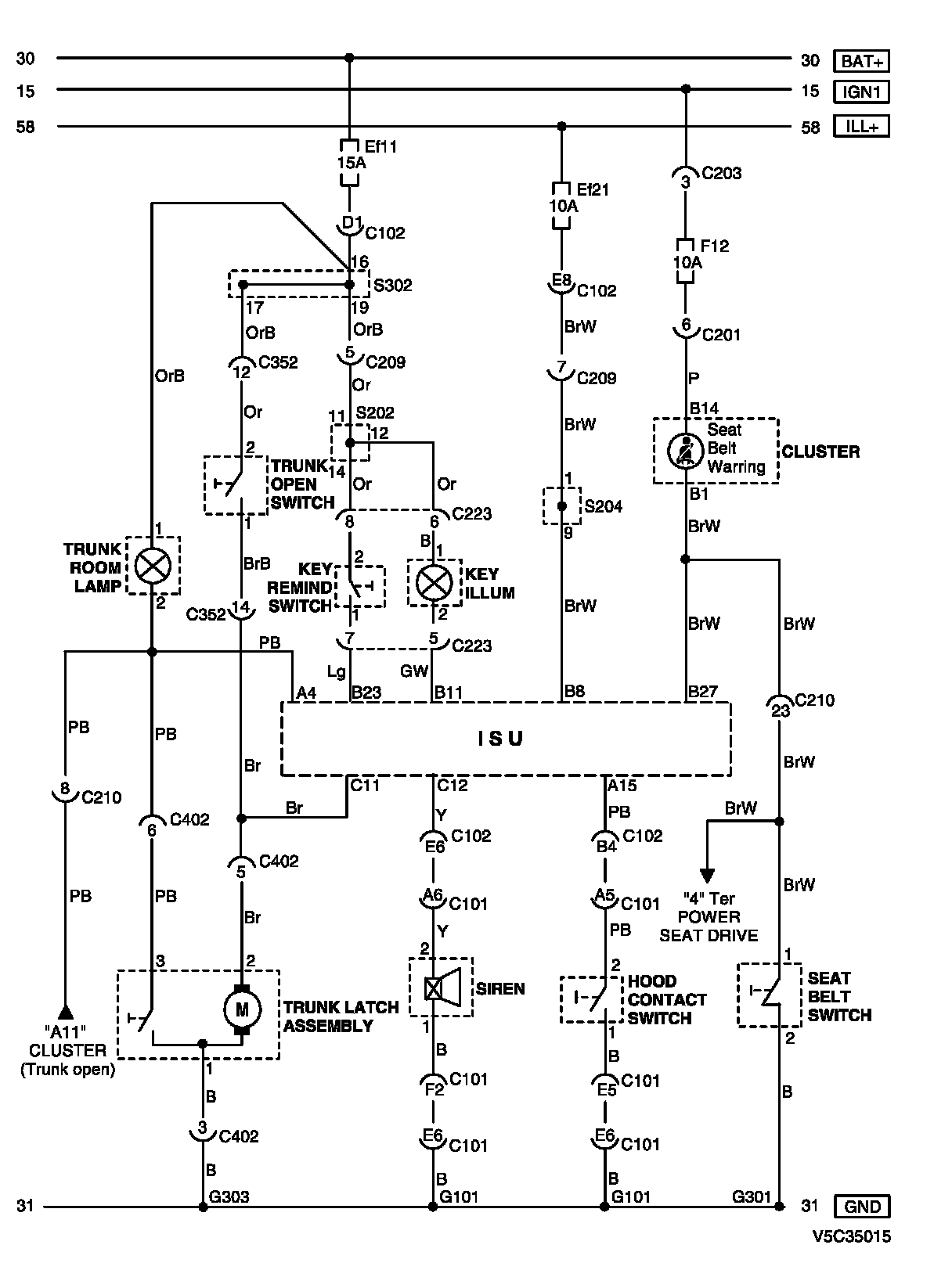

WIRING DIAGRAM
C101 - G303:

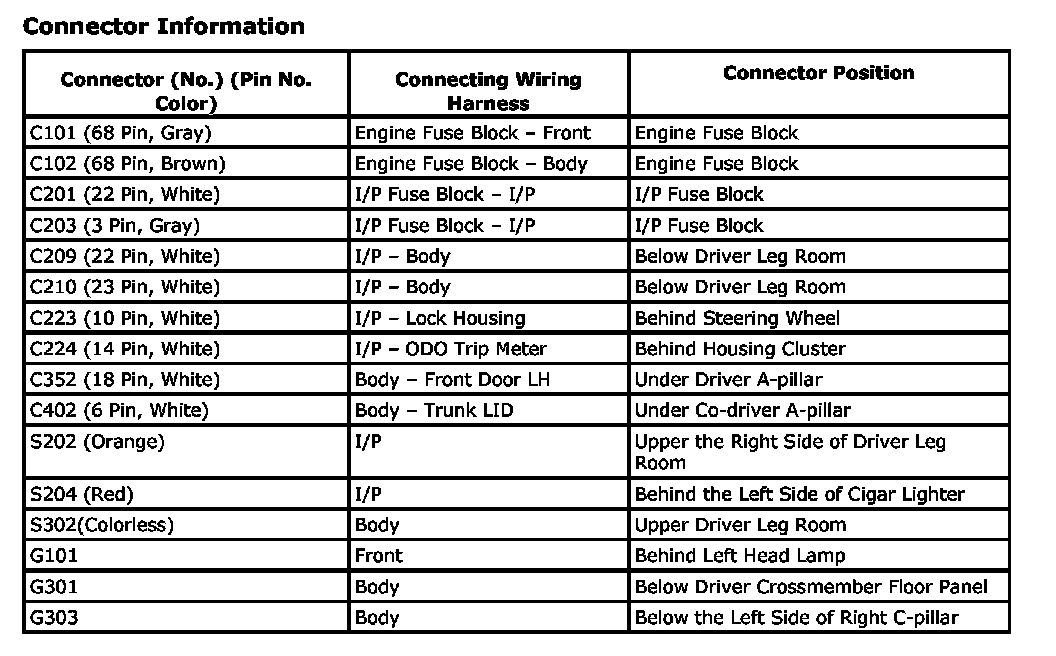

CONNECTOR INFORMATION

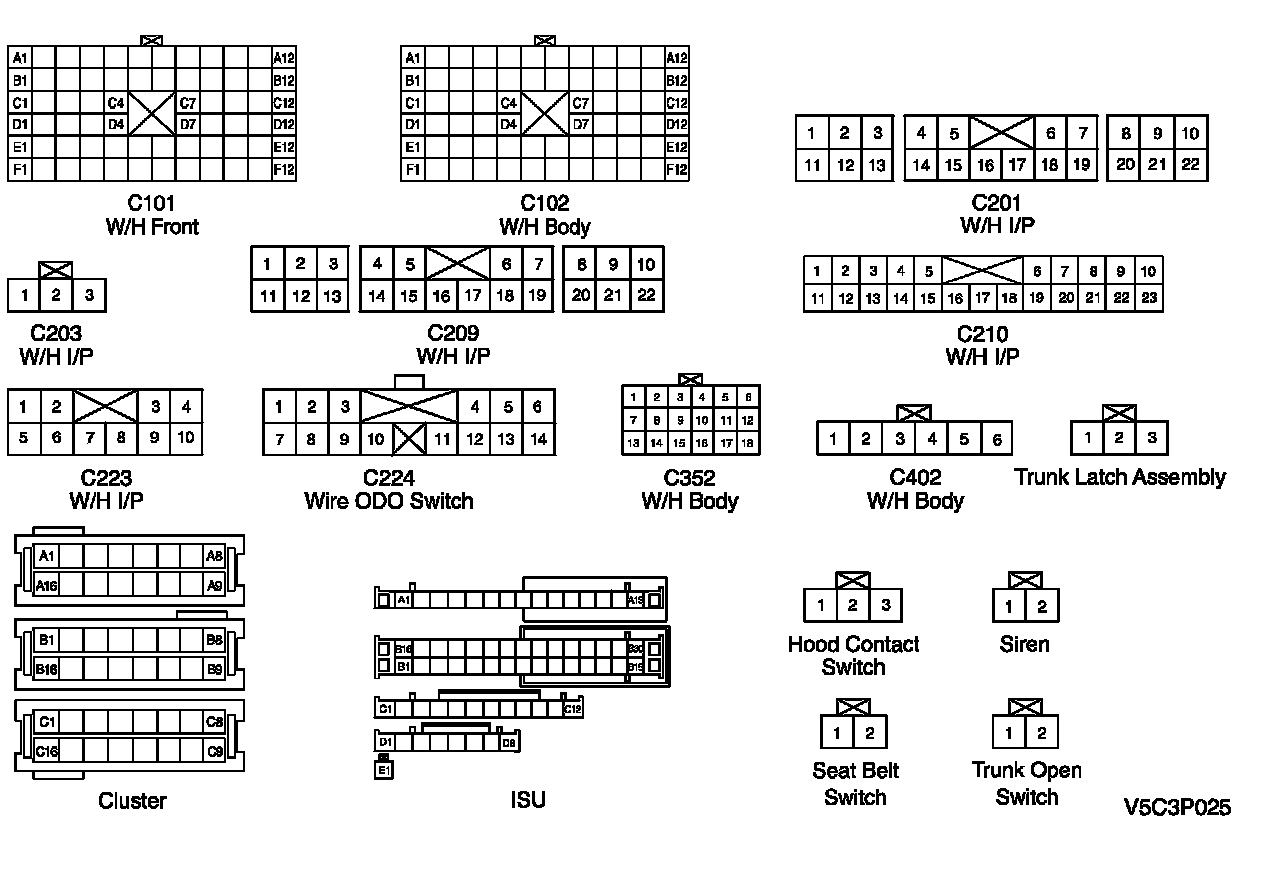

Connector Identification Symbol and Pin Number Position:
CONNECTOR IDENTIFICATION SYMBOL AND PIN NUMBER POSITION

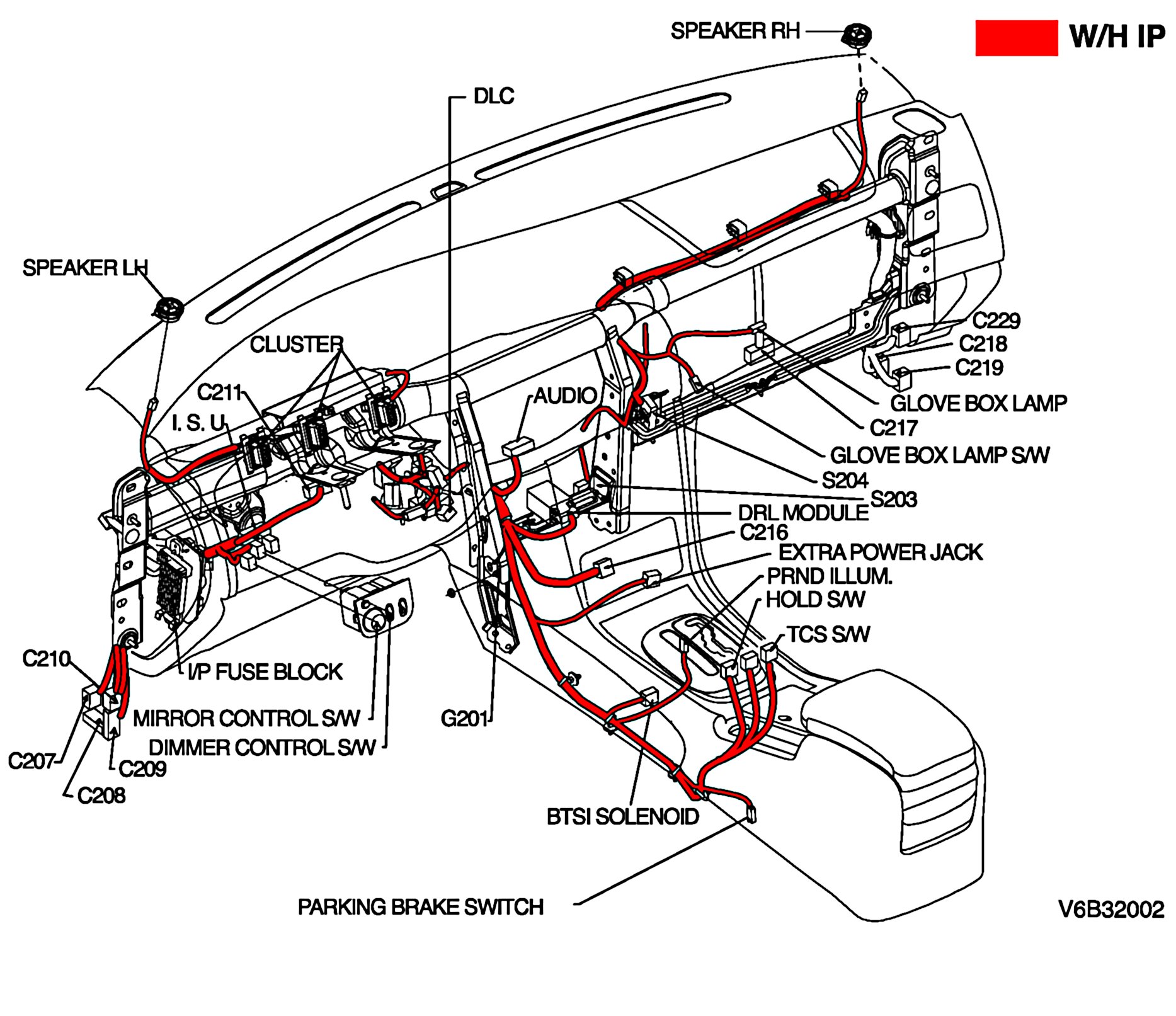

W/H Instrument Panel:
POSITION OF CONNECTORS AND GROUNDS
S202 (ORANGE):
S204 (RED):
S302 (COLORLESS):
SPLICE PACK
