Power Mode (2.5 DOHC)

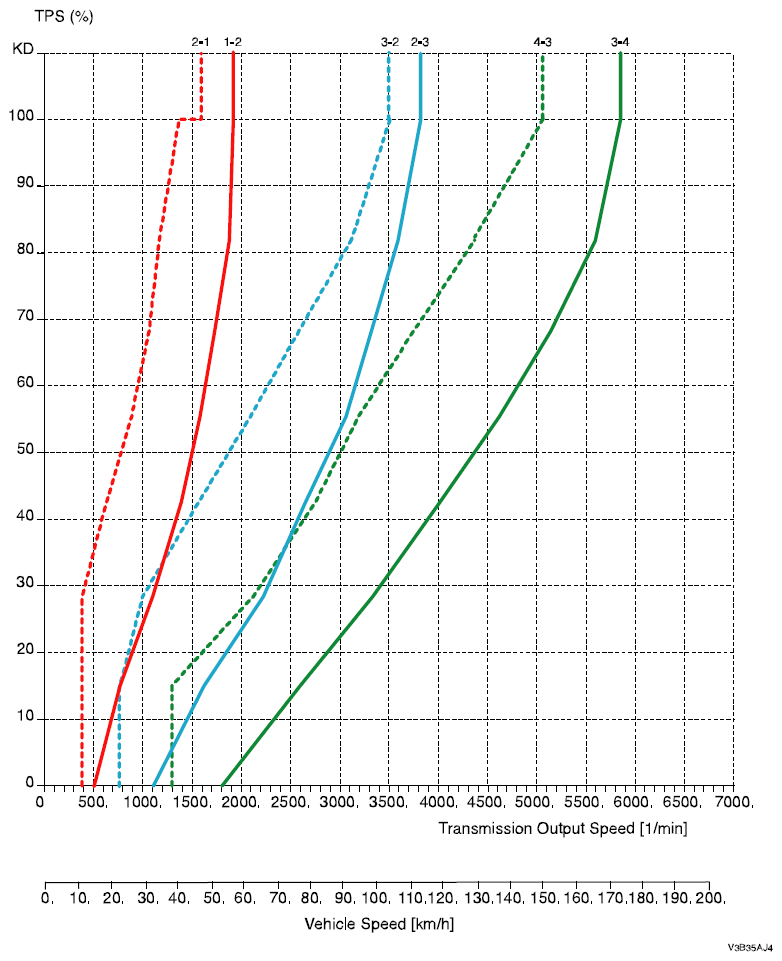

Fig 1: Shift Mode Diagram - Power Mode (2.5 DOHC)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
