Shift Lock Control Circuit Wiring Diagram

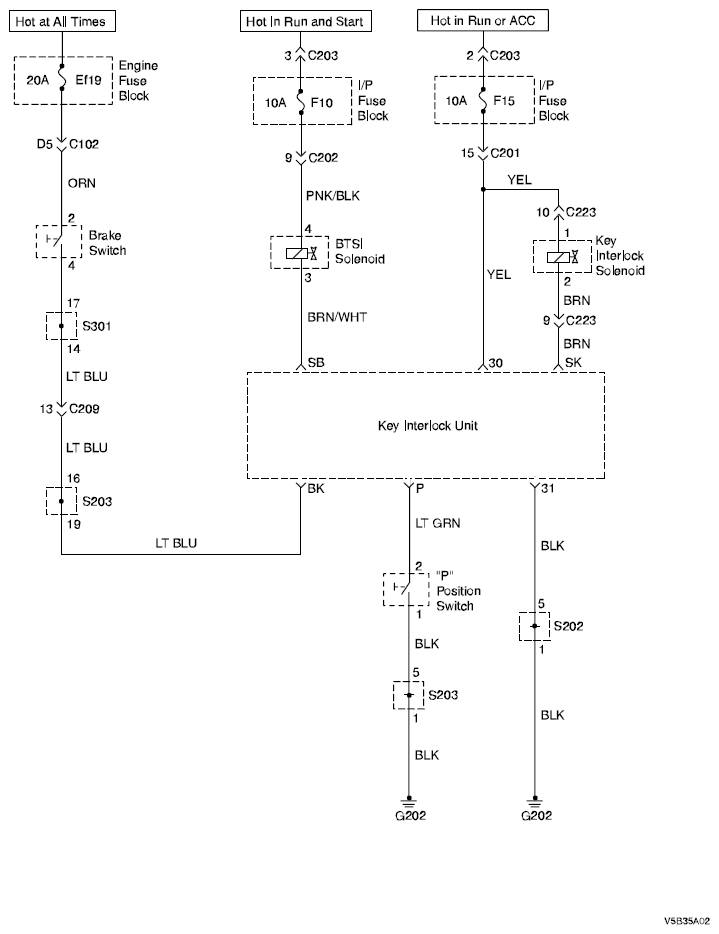

Fig 1: Wiring Diagram - Shift Lock Control Circuit
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
