Valve Body Components

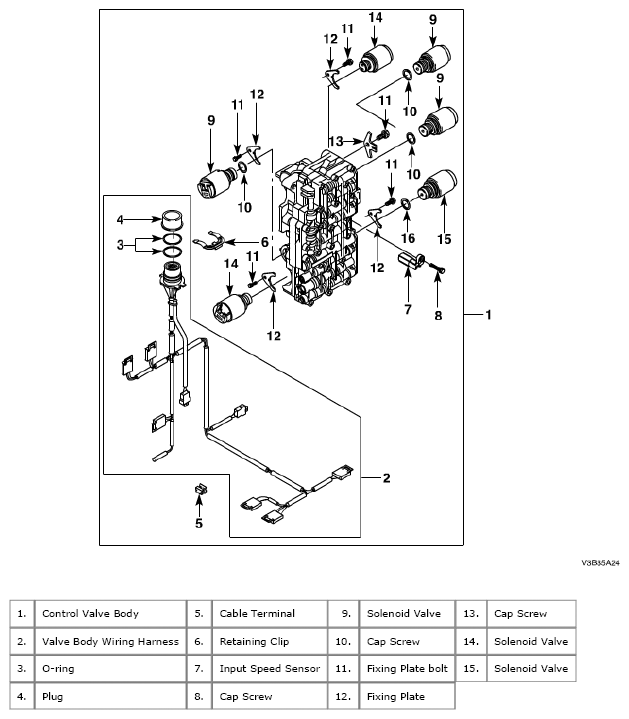

Fig 1: Identifying Valve Body Components
G04719778Courtesy of SUZUKI OF AMERICA CORP.
