Park/neutral Start Switch Installation

Tools Required:

DW260-050 Park/Neutral Position Switch Installer

1. Install the Park/Neutral start switch.

   Tighten:

   Tighten the bolts to 10 N.m (89 lb-in.).

2. Adjust the Park/Neutral switch using the Park/Neutral switch installer DW260-050.
   CAUTION: When install the Park/Neutral switch, using the special service tools and the shift lever must be positioned "Neutral".

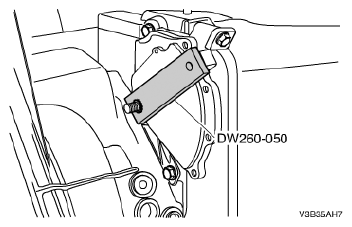

   Fig 1: Identifying Park/Neutral Start Switch & Installer DW260-050

   Courtesy of SUZUKI OF AMERICA CORP.
3. Install the shift lever and the shift lever nut.

   Tighten:

   Tighten the shift lever nut to 10 N.m (89 lb-in.).

   Fig 2: Identifying Shift Lever & Nut

   Courtesy of SUZUKI OF AMERICA CORP.
4. Connect the shift control cable and the retaining clip.
5. Connect the Park/Neutral position switch electrical connector.
6. Install the air filter housing.
7. Connect the negative battery cable.

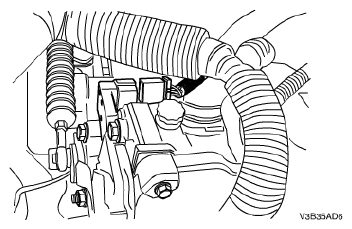

Fig 3: Identifying Park/Neutral Position Switch Electrical Connector
