Oil Cooler Pipes / Hoses Removal

CAUTION: Place a drip pan under the hoses to catch the fluid that will run out of the lines.

Disconnect the negative battery cable.
Raise and suitably support the vehicle.
Remove the oil cooler outlet pipe bolt from the right lower side of the radiator.
Remove the oil cooler outlet pipe bracket bolt.

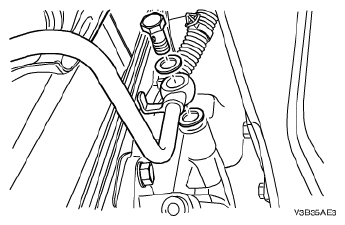

Fig 1: Identifying Oil Cooler Outlet Pipe, Bracket & Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove the oil cooler outlet pipe bolt from the transaxle side.
Remove the oil cooler outlet pipe assembly.

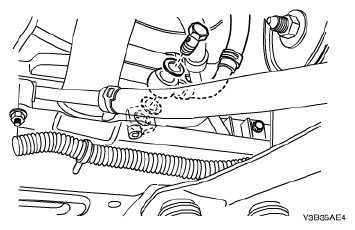

Fig 2: Identifying Oil Cooler Outlet Pipe & Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove the oil cooler inlet pipe bolt from the left lower side of the radiator.

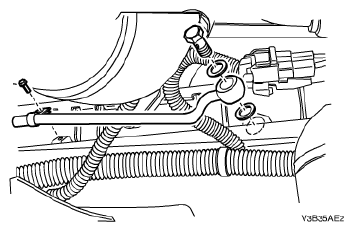

Fig 3: Identifying Oil Cooler Inlet Pipe & Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove the oil cooler inlet pipe bolt from the transaxle side.
Remove the oil cooler inlet pipe assembly.

Fig 4: Identifying Oil Cooler Inlet Pipe & Bolt
Courtesy of SUZUKI OF AMERICA CORP.
