Left Transaxle Mounting Bracket Installation

Install the left 4 transaxle mounting bracket bolts.
Tighten:

Tighten the left 4 transaxle mounting bracket bolts to 40 N.m (30 lb-ft).
Install the bolt and nut to the left transaxle mounting bracket cage.
Tighten:

Tighten the bolt and nut to 65 N.m (48 lb-ft).

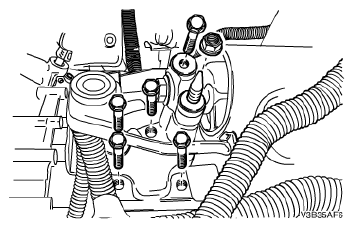

Fig 1: Identifying Transaxle Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the engine support fixture DW110-060.
Install the air filter housing.

Fig 2: Identifying Engine Support Fixture DW110-060
Courtesy of SUZUKI OF AMERICA CORP.
