Drive Axle Oil Seal Removal
- Disconnect the negative battery cable.
- Remove the drive axles. Refer to DRIVE AXLE ASSEMBLY REMOVAL
.CAUTION: Be careful not to damage the bore of the transaxle case.

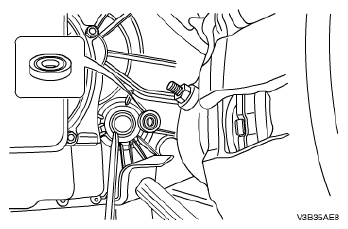

- Remove the transaxle drive seal using a screwdriver. If necessary, crush the seal first with the screwdriver in order to loosen the seal from the case.
