Drive Axle Oil Seal Installation

Tools Required:

DW260-030-01 Axle Seal Installer (LH)

DW260-030-02 Axle Seal Installer (RH)

1. Install the transaxle drive seal using the axle seal installer DW260-030-01 (LH) or DW260-030-02 (RH).
2. Install the drive axles. Refer to DRIVE AXLE ASSEMBLY INSTALLATION .
3. Connect the negative battery cable.

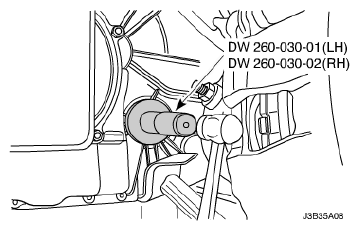

   Fig 1: Identifying Axle Seal & Installer DW260-030-01 (LH) Or DW260-030-02 (RH)

   Courtesy of SUZUKI OF AMERICA CORP.
