Differential Disassembly and Assembly

1. Remove the torque converter housing. Refer to Transaxle Components Description .
2. Lift out the differential.
3. Installation should follow the removal procedure in the reverse order.

Removal Notice

• Don't disassemble the differential to avoid incorrect operation.

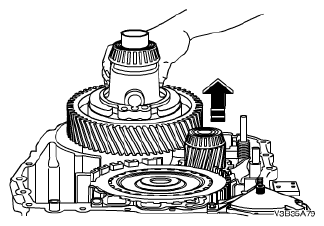

  Fig 1: Removing Differential From Torque Converter Housing

  Courtesy of SUZUKI OF AMERICA CORP.
