Control Valve Body Assembly Removal

Tools Required:

DW260-070 Plug Remover/Installer

1. Disconnect the negative battery cable.
2. Remove the air filter housing.
3. Disconnect the transaxle wiring harness and the Park/Neutral position switch electrical connector.
   Fig 1: Identifying Park/Neutral Position Switch Electrical Connector

   Courtesy of SUZUKI OF AMERICA CORP.
4. Raise and suitably support the vehicle.
5. Remove the engine under cover. Refer to ENGINE UNDER COVERS REMOVAL .
6. Remove the transaxle fluid drain plug using the plug remover/installer DW260-070 and drain the transaxle fluid.
   Fig 2: Identifying Transaxle Fluid Drain Plug & Plug Remover/Installer DW260-070

   Courtesy of SUZUKI OF AMERICA CORP.
7. Remove the oil pan, oil pan gasket. Refer to Oil Pan and Oil Pan Gasket Removal .
8. Remove the valve body mounting bolts.
9. Remove the automatic transaxle input speed sensor mounting bolt.
   Fig 3: Identifying Input Speed Sensor Mounting Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
10. Tilt the valve body.
11. Remove the automatic transaxle output speed sensor mounting bolt under the valve body assembly.
    Fig 4: Identifying Output Speed Sensor Mounting Bolt

    Courtesy of SUZUKI OF AMERICA CORP.
12. Remove the control valve body.

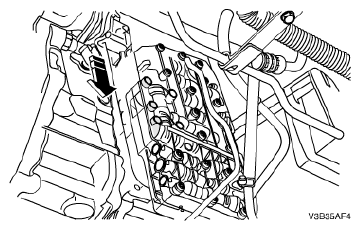

    Fig 5: Removing Control Valve Body

    Courtesy of SUZUKI OF AMERICA CORP.
