Brake C/D Disassembly and Assembly

Tools Required:

DW260-160 Brake C/D Snap Ring Remover/Installer

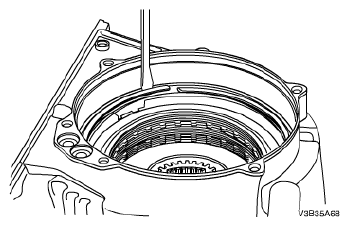

1. Take snap ring out of transaxle housing.
   Fig 1: Removing Transaxle Housing Snap Ring

   Courtesy of SUZUKI OF AMERICA CORP.

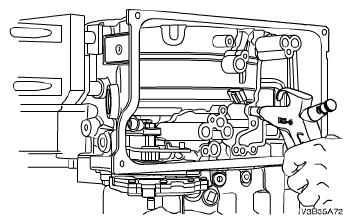

2. Release cylinder with piston C by applying compressed air to the feed bore.
   Fig 2: Releasing Cylinder With Piston C Using Compressed Air

   Courtesy of SUZUKI OF AMERICA CORP.

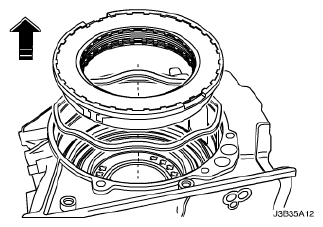

3. Remove cylinder with piston C.
   Fig 3: Removing Cylinder With Piston C

   Courtesy of SUZUKI OF AMERICA CORP.
4. Take disc carrier C/D and spring disc out of transaxle housing.
   Fig 4: Removing Disc Carrier C/D And Spring Disc From Transaxle Housing

   Courtesy of SUZUKI OF AMERICA CORP.

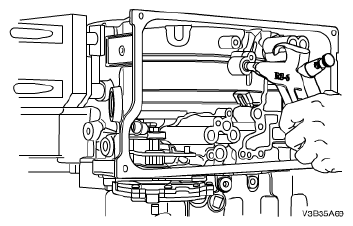

5. Release cylinder with piston D by applying compressed air to the feed bore.
   Fig 5: Releasing Cylinder With Piston D By Applying Compressed Air To Feed Bore

   Courtesy of SUZUKI OF AMERICA CORP.

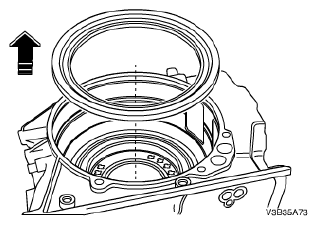

6. Remove cylinder with piston D.
   Fig 6: Removing Cylinder With Piston D

   Courtesy of SUZUKI OF AMERICA CORP.

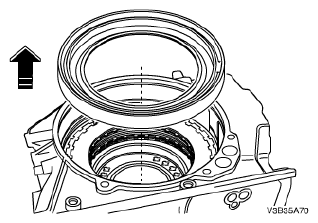

7. Separate between piston D and cylinder C.
   Fig 7: Separating Between Piston D And Cylinder C

   Courtesy of SUZUKI OF AMERICA CORP.
8. Take snap ring out of brake C.
   Fig 8: Removing Snap Ring From Brake C

   Courtesy of SUZUKI OF AMERICA CORP.
9. Remove the disc set C.

   Installation Notice

   • Transaxle has 2 lined clutch discs and one steel clutch disc. The lined discs must be installed in such a way that the lining faces the steel disc.
   • Insert the fitting keys into the appropriate grooves.
     Fig 9: Removing Disc Set C

     Courtesy of SUZUKI OF AMERICA CORP.
10. Turn the disc carrier C/D by 180°.
11. Using assembly bracket Press down cup spring and take out the snap ring.
    Fig 10: Identifying Brake C/D Snap Ring Remover/Installer (DW260-160)

    Courtesy of SUZUKI OF AMERICA CORP.
12. Remove the disc set D.
13. Installation should follow the removal procedure in the reverse order.

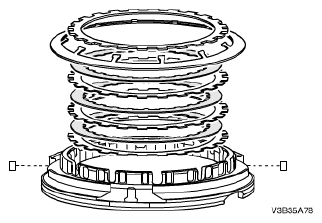

Fig 11: Exploded View Of Disc Set D

Courtesy of SUZUKI OF AMERICA CORP.
