Rear Stabilizer Bar Installation

Install the rear stabilizer bar bolt, U-clamp and bushing.
Tighten:

Tighten the rear stabilizer bar bolt to 50 N.m (37 lb-ft).
Install the rear stabilizer link. Refer to Rear Stabilizer Link Installation .

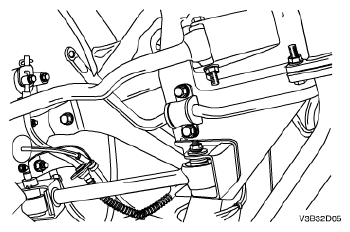

Fig 1: Identifying Rear Stabilizer Bar & Bolt
Courtesy of SUZUKI OF AMERICA CORP.
